|Place of Origin:||Qingdao, China|
|Certification:||GS, RoHS, CE, ISO9001|
|Minimum Order Quantity:||1 pieces|
|Packaging Details:||wooden case, carton box|
|Delivery Time:||15-25 work days per year|
|Payment Terms:||T/T, Western Union, D/P, D/A, L/C|
|Supply Ability:||50000 pieces|
|Pressure:||Normal Pressure||Temperature:||Normal Temperature|
|Stroke:||Custom||Trunnion Type:||ZZ/FC Type|

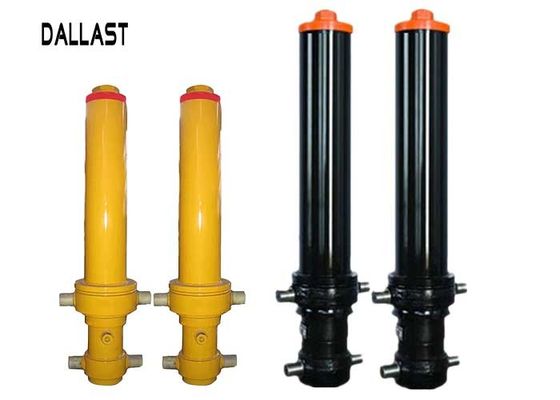

Single Acting Telescopic Long Stroke Hydraulic CylinderTrunnion Mounting Style for Semi-Tipper
|MODEL NO||Stage||First Stage Diameter||Stroke||Largest Sleeve OD||Closed length||Mounting distance|
|standard product type||

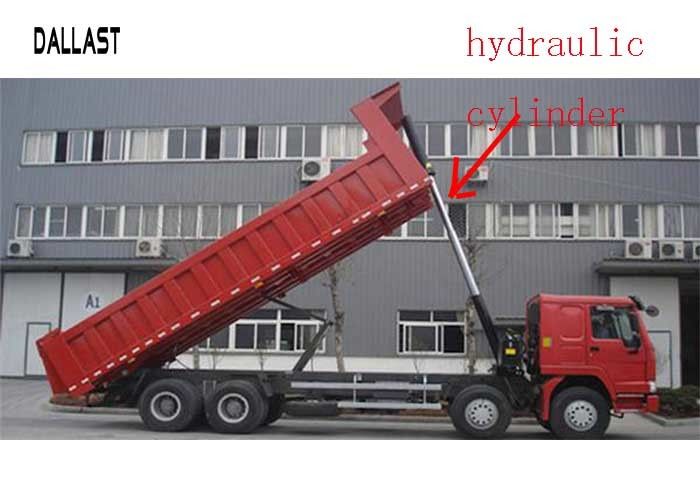

In order to tilt a dump truck to angles of 60Â° or more, telescopic cylinders with strokes approaching the total bed length are required.
We can OEM & ODM, if you are interested in our products, please feel free to contact us, send us the
drawings and tell us the details.
The length of a hydraulic cylinder is the total of the stroke, the thickness of the piston, the thickness of bottom and head and the length of the connections
Warranty: We offer 12 months warranty
Material: Stainless steel is used in many of our designs to ensure corrosion, it does not end the life of the cylinder prematurely.
Acts on the piston to push the piston rod out
Choice of Mounting Styles, Cross Tube or Trunnion
Hard Chrome Plated Stages
Big lifting force
pressure ranges: could be customized
Piston Ø: customized
Piston rod Ø: customized
Max. stroke speed: according to the product types
We use hard chromed rods (other options are available)
The most commonly used mounting options are flange, trunnion, clevis, pin-eye, cross-tube, spherical, and tang. Cylinder mounting is chosen based upon the application’s requirements.
Could be used for heavy vehicles, agricultural vehicles and other vehicles tilting the bucket lift cylinder.
About piston rod:
High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.
The most common problems when selecting a hydraulic cylinder are as follows:
A. Retract dimension
B. Stroke length
C. Mounting types
D. Port Size and Type (SAE or NPT)
E. Pressure rating
F. Bore Diameter
G. Application details
Contact Person: Candy
