| Place of Origin: | Shandong |
| Brand Name: | DALLAST |
| Certification: | GS CE ISO9001-2009 TS16949 |
| Model Number: | Standard , Non-standard |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | shrink film, pallet, plywood case and carton box |
| Delivery Time: | 20- 25 days after down payment |
| Payment Terms: | T/T, L/C, Western Union,paypal |
| Supply Ability: | 50000PCS per year |
| Model: | Dual Action Hydraulic Lift Cylinder | Structure: | Welded Piston Hydraulic Cylinder |
|---|---|---|---|
| Lifting Capacity: | 13 - 110 Ton | Stroke: | 3000mm-11000mm |
| Mounting Type: | Earring-trunnion,Double-trunnionHinge Shaft,underbody | Coating: | Chrome Plated |
| Action Way: | 2 Way | Hydraulic Pressure: | 160-320 Bar |
| High Light: | dump truck telescopic cylinder,dump truck hydraulic cylinder |
||

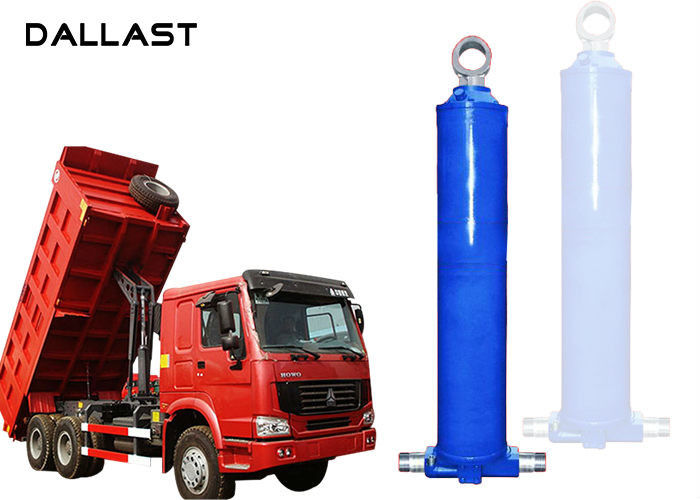

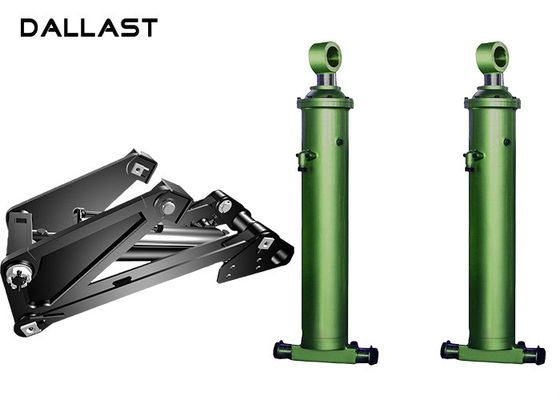

Double Acting Telescopic Lifting Tipper Dump Trailer Hydraulic Cylinder
Material: Alloy steel,Carbon steel,27SiMn
Seal: Hallite,SKF,NOK,Guarnitec,Parker
Coating: Chrome plated
Working pressure: 16MPa, 18MPa or 22MPa for your selection
Stroke: 630mm, 735mmm,750mm,900mm or per your requirements
Color: Red black blue gray,or according to customer's requirements
Delivery time: 20-30 days after payment receiving
Bore size: from 40mm to 800mm,
Stroke length: to 12000mm or longer
Application: Dump Truck, Tipper Truck, Trailer, Agricultural Machinery, Engineering Machinery, Garbage Truck, Farm Truck etc;
How do we ensure product quality?
piston rod:
1: hard chrome plating
2: thickness of 0.03-0.05mm;
3: in-house salt spray test
cylinder tube:
1: standard material-#45, SAE1045, CK45
2. surface roughness: Ra0.4-0.08micron
Seals:NOK, Hallite, Parker etc.
Welding:mannual & machine welding
Professional manufacturer& supplier of Hydraulic Cylinders
Hydraulic Cylinders Certification ISO9001:2009, SGS, TS16949, RoHS, CNAS Certification
Experience in export North America, Australia, Asia, Middle East, Africa
Hydraulic Cylinders can be Make according to client's requirements
One year warranty and long time track service is offered to solve any problems you meet after sale.
| Model |
Bore Diameter (mm) |
Rod Diameter (mm) |
Stroke (mm) |
Installation distance (mm) |
Pressure (MPa) |
Rated thrust (ton) |
Lift (ton) |
Capacity (L) |
| HG-E180x560ST | 180 | 80 | 560 | 1000 | 16 | 40.7 | 15~25 | 11.4 |
| HG-E180x660HX | 180 | 80 | 660 | 1050 | 16 | 40.7 | 15~25 | 13.48 |
| HG-E180x680ST | 180 | 80 | 680 | 1140 | 16 | 40.7 | 15~25 | 13.89 |
| HG-E180x720SY | 180 | 80 | 720 | 1125 | 16 | 40.7 | 15~25 | 14.7 |
| HG-E180x760HJ | 180 | 80 | 760 | 1170 | 16 | 40.7 | 15~25 | 15.52 |
| HG-E180x780ST | 180 | 80 | 780 | 1140 | 16 | 40.7 | 15~25 | 15.93 |
| HG-E180x790SX | 180 | 80 | 790 | 1130 | 16 | 40.7 | 15~25 | 16.13 |
| Model |
Bore Diameter (mm) |
Rod Diameter (mm) |
Stroke (mm) |
Installation distance (mm) |
Pressure (MPa) |
Rated thrust (ton) |
Lift (ton) |
Capacity (L) |
| HG-E160x490ST | 160 | 70 | 490 | 860 | 16 | 32.1 | 10~20 | 7.97 |
| HG-E160x560ST | 160 | 70 | 560 | 1000 | 16 | 32.1 | 10~20 | 9.10 |
| HG-E160x650SX | 160 | 70 | 650 | 1000 | 16 | 32.1 | 10~20 | 10.57 |
| HG-E160x680ST | 160 | 70 | 680 | 1140 | 16 | 32.1 | 10~20 | 11.06 |
| HG-E160x700BH | 160 | 70 | 700 | 1025 | 16 | 32.1 | 10~20 | 11.38 |
| HG-E160x720ZY | 160 | 70 | 720 | 1125 | 16 | 32.1 | 10~20 | 11.71 |
| HG-E160x780ST | 160 | 70 | 780 | 1145 | 16 | 32.1 | 10~20 | 12.68 |
| HG-E160x790SX | 160 | 70 | 790 | 1155 | 16 | 32.1 | 10~20 | 11.71 |
| HG-E160x800BH | 160 | 70 | 800 | 1125 | 16 | 32.1 | 10~20 | 13.01 |
| Model |
Bore Diameter (mm) |
Rod Diameter (mm) |
Stroke (mm) |
Installation distance (mm) |
Pressure (MPa) |
Rated thrust (ton) |
Lift (ton) |
Capacity (L) |
| HG-E220x760XM | 220 | 100 | 760 | 1080 | 16 | 60.8 | 20~35 | 22.92 |
| HG-E220x780HW | 220 | 100 | 780 | 1220 | 16 | 60.8 | 20~35 | 23.52 |
| HG-E220x900HJ | 220 | 100 | 900 | 1190 | 16 | 60.8 | 20~35 | 27.14 |
| HG-E220x910XM | 220 | 100 | 910 | 1210 | 16 | 60.8 | 20~35 | 27.45 |
| HG-E220x920HW | 220 | 100 | 920 | 1200 | 16 | 60.8 | 20~35 | 27.75 |
| HG-E220x1034ZY | 220 | 100 | 1034 | 1370 | 16 | 60.8 | 20~35 | 31.18 |
| Model |
Bore Diameter (mm) |
Rod Diameter (mm) |
Stroke (mm) |
Installation distance (mm) |
Pressure (MPa) |
Rated thrust (ton) |
Lift (ton) |
Capacity (L) |
| HG-E200x720SY | 200 | 100 | 720 | 1125 | 16 | 50.2 | 15~30 | 16.96 |
| HG-E200x750SS | 200 | 85 | 750 | 1165 | 16 | 50.2 | 15~30 | 19.31 |
| HG-E200x770HW | 200 | 100 | 770 | 1120 | 16 | 50.2 | 15~30 | 18.14 |
| HG-E200x780ST | 200 | 100 | 780 | 1145 | 16 | 50.2 | 15~30 | 18.38 |
| HG-E200x850ST | 200 | 100 | 850 | 1230 | 16 | 50.2 | 15~30 | 20.03 |
| HG-E200x900HJB | 200 | 100 | 900 | 1190 | 16 | 50.2 | 15~30 | 21.21 |
| HG-E200x910LN | 200 | 100 | 910 | 1210 | 16 | 50.2 | 15~30 | 21.44 |
