| Place of Origin: | Shandong, China |
| Brand Name: | Dallast |
| Certification: | Gs, RoHS, Ce, ISO9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Box or Pallet or as your requirements |
| Delivery Time: | 15-25 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1 Piece Per Year |
| Warranty: | One Year | Pressure: | Medium Pressure |
|---|---|---|---|
| Certification: | Gs, RoHS, Ce, ISO9001 | Seals: | Parker, Merkel, Hallite |
| Delivery Time: | 15-25 Days | HS Code: | 8412210000 |
| High Light: | long stroke single acting hydraulic cylinder,small bore long stroke hydraulic cylinders |
||

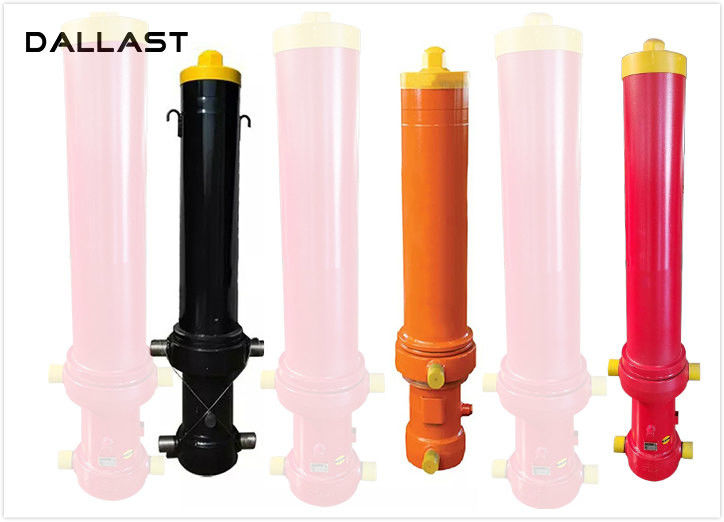

Single Acting Chromed Plunge Farm Truck Long Stroke Hydraulic Cylinder
Special Features:
We have technology terms and can design drawing according to provided information for your review.
We are solding our products to nearly the whole global.
Appreciate for your kind help, we will be able to offer you the correct and exact quotation as soon as we got
your inquiry.Thank you!
We are China Oil Cylinder manufacturer offer best Oil Cylinder OEM, ODM,service.
We are China welded hydraulic cylinder manufacturer offer best welded hydraulic cylinder OEM, ODM,service.
Dallast front end tipping solution with standard operating pressure up to 250 bar providing the best performance through the combination of reducing weight, increasing tipping speed and stability.
HCIC has a complete range of front-end cylinders: with cover (FC), top eye(FE), top and bottom eye(FEE) with max. lifting capacity up to 120 tons.
Three Advantages for Hydraulic Cylinder:
Longer serve life.
By optimizing the structure design and reduce bore, increase limit buffer design, reduce the system pressure
fluctuations and pressure shock, extend the service life of the parts of the lifting hydraulic system!
More strong stability.
Stability optimization design, improve the long box lifting high stability, reduce rollover risk!
Lift More.
Compared with other products with lift lifting 15%~20%. Lift larger, more loading more returns! Lighter weight, lift larger, more light!
The Information About Our Company:
Dallast Technology Co., Ltd. is specialized in manufacturing all kinds of hydro pneumatic components, aluminum parts and plastic parts. Our main products are including pneumatic cylinder, (air cylinder), hdraulic cylinder, air filter, air regulator, air lubricator, pneumatic fitting, hydraulic fitting, tubes, muffler (silencer) etc.
Parameter:
| Model | Extended Stages | Working Pressure | Max. stage | Max. stroke | Lifting Capacity | Suitable Length of Truck Body |
| (MPa) | Diameter(mm) | (mm) | (ton) | (m) | ||
| 129-3E-3880 | 3 | 16-19 | 129 | 3880 | 20-35 | 5.2 |
| 149-3E-3880 | 3 | 16-19 | 149 | 3880 | 25-45 | 5.2 |
| 149-3E-4280 | 3 | 16-19 | 149 | 4280 | 25-45 | 5.6 |
| 149-4E-3880 | 4 | 16-19 | 149 | 3880 | 25-40 | 5.2 |
| 149-4E-4280 | 4 | 16-19 | 149 | 4280 | 25-40 | 5.6 |
| 169-4E-4280 | 4 | 16-19 | 169 | 4280 | 30-50 | 5.2-5.6 |
| 169-4E-4640 | 4 | 16-19 | 169 | 4640 | 32-55 | 5.6-6.1 |
| 169-4E-5000 | 4 | 16-19 | 169 | 5000 | 32-60 | 6.2-6.8 |
| 169-4E-5180 | 4 | 16-19 | 169 | 5180 | 32-60 | 6.2-6.9 |
| 169-4E-5390 | 4 | 16-19 | 169 | 5390 | 32-60 | 6.2-6.9 |
| 169-4E-5460 | 4 | 16-19 | 169 | 5460 | 32-60 | 6.5-7.3 |
| 185-4E-4280 | 4 | 16-19 | 185 | 4280 | 25-45 | 5.6 |
| 185-4E-4640 | 4 | 16-19 | 185 | 4640 | 30-45 | 5.6-6.1 |

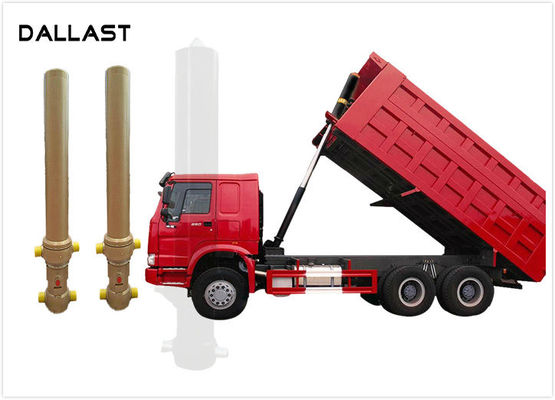

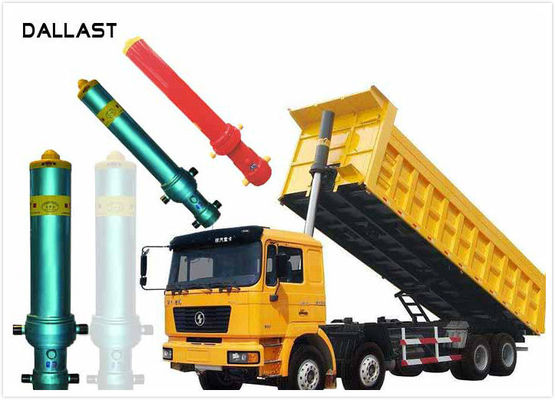

| This product is used in numerous application including: 1. Dump truck. 2. Pump trucks. 3. Truck mounted crane. 4. sanitation truck Earth moving equipment, Drilling Rigs, Road and Construction equipments, Cranes, Material handling equipments, Mining Equipments, Plastic Mould Machine, Cement Factories, Special Purpose Cylinders. | The above data for reference only, we can fully meet your requirements to make customers satisfied with the product.If you need, feel free to contact us and we can advise and design. | |||||
FAQ:
1. Q: How to know more about the Hydraulic cylinder?
A: Just view the quick details, all the information is correct.
2. Q: If I want to do my own size hydraulic cylinder, how should I do?
A: Contact with me in TraderManager, or just send me a mail, or add my Skype: handa886. We will offer you quickly.
3. Q: How should I do, If I want to place an order?
A: Send me an inquiry, then I will check with you for all things. After all things cearly, we will make a PI for you, details see order process.
4. Q: Is there any warranty about the cylinder?
A: Yes, all our hydraulic parts, we have 1 year warranty.
Product Show:
