Place of Origin: | China |
Brand Name: | DALLAST or on request |
Certification: | GS, RoHS, CE, ISO9001 |
Model Number: | customied |
Minimum Order Quantity: | 1 pieces |
---|---|
Price: | negotiation |
Packaging Details: | wooden case, carton box |
Delivery Time: | 20-30 work days or on request |
Payment Terms: | T/T, Western Union, D/P, D/A, L/C |
Supply Ability: | 50000 pieces |
Pressure: | 1000-5000 PSI | Temperature: | Normal Temperature |
---|---|---|---|
Action Type: | Double Acting | Body Material: | Steel Or On Request |
Mode Type: | HSG | Rod Design: | Custom |
High Light: | long stroke hydraulic ram,long stroke single acting hydraulic cylinder |

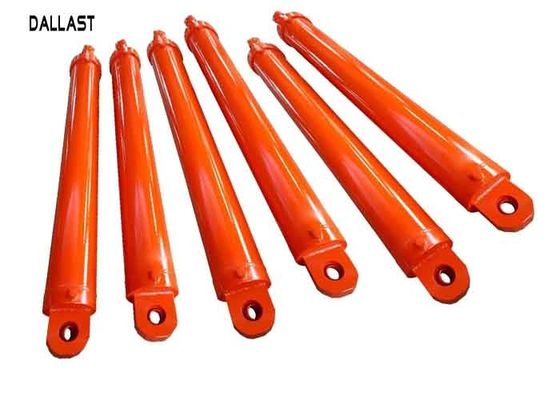

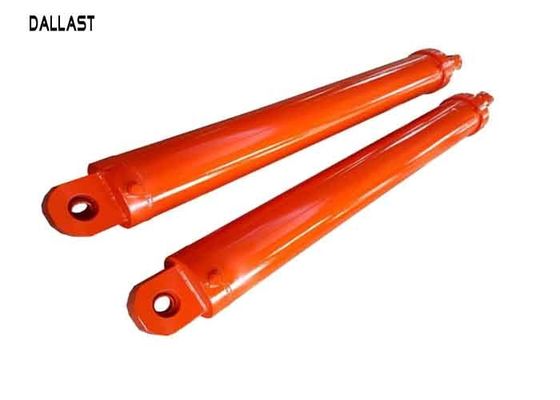

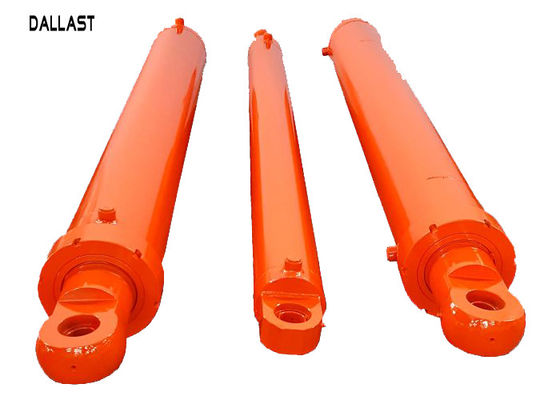

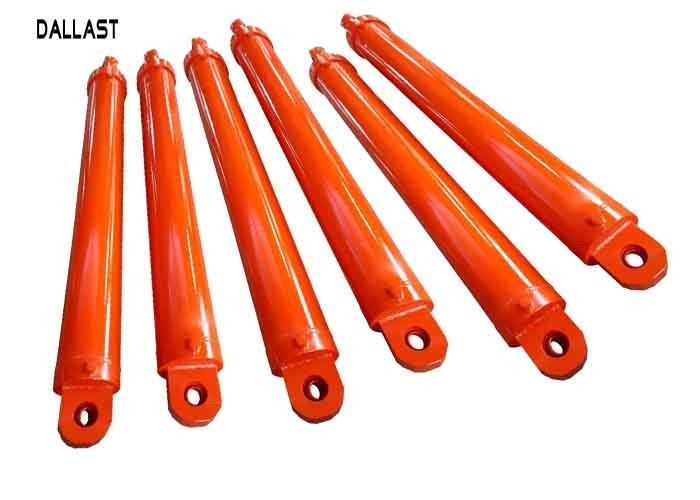

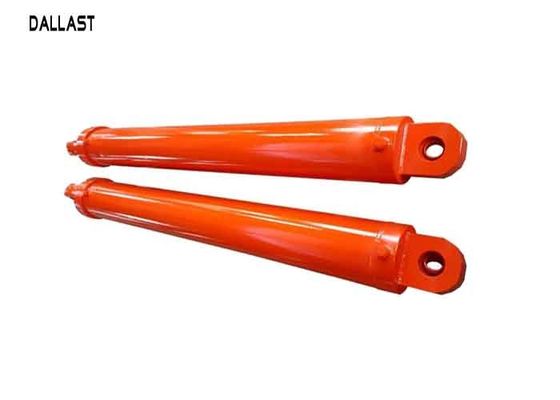

Small Hydraulic Piston Long Stroke Cylinder Chrome Rod Double Acting for Construction
Features:
Higher corrosion, resistance, abrasive resistance, high durability
Use of word-class international sealing and bearing materials
Special structural design to meet high frequency action
Many mounting styles
Several bore sizes and in varying strokes
Many of these sizes are available
We offer 12 months warranty
Mode type | HSG series | ||||
Capacity | 2-80 tons | ||||
Diameter of rod | 30-150mm | ||||
Total stroke | 100-2000 mm | ||||
Closed length | 800, 510, 1055, 495, 800, 780mm, or according to your need | ||||
Cylinder bore | 80, 75, 75, 100, 90, 110, or on request | ||||
Piston | High grade ductile iron | ||||
Piston rod | Stainless steel, alloy steel, carbon steel etc. | ||||
Piston seal | Urethane seal | ||||
Paint color | Semi-gloss black, gray, red etc. | ||||
Operating pressure | ranging from 1000-3000 PSI | ||||
Operating temperature | 30 to +80 degrees Celsius, but the unit should not be used when oil is frozen | ||||
Speed range |
Speed range of operation (excluding cushion parts) is less than 200mm/s |
We offer OEM, ODM. If you needed, please feel free to contact us and send us the drawings:
A
1. Bore size
2. Stroke length
3. Rod diameter
4. Mounting type
5. Mounting length
6. Paint color requirement
B. The product application description details
1. Type of machine(loader, steer loader, excavator, and etc.)
2. Type of function(hoist, swing, steering, and etc.)
3. Type of structure(piston, telescopic)
4. Single or double acting
5. Operating pressure
Packing:
1. Goods are packed with export standing standard.
2. It includes pallets, suitable carton size, steel box, iron case,paper box,plywood box or according to the requirements of customers.
Delivery:
1.We export from Qingdao port by sea.
2. Goods will be delivered on time.
3. Goods can arrive at the destination safely.
Quality control:
1. Seiko secret agents, to ensure quality of the piston rod.
2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.
