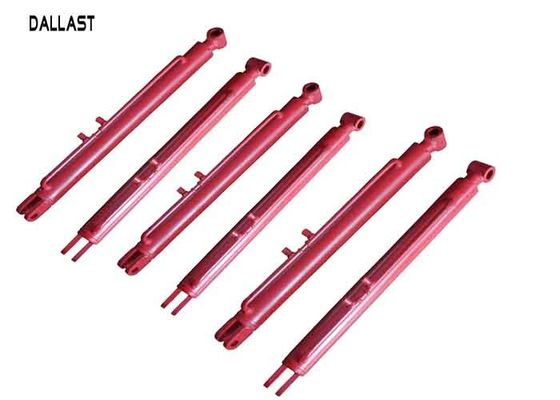

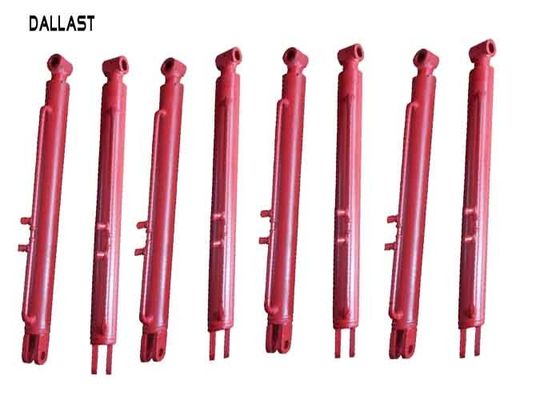

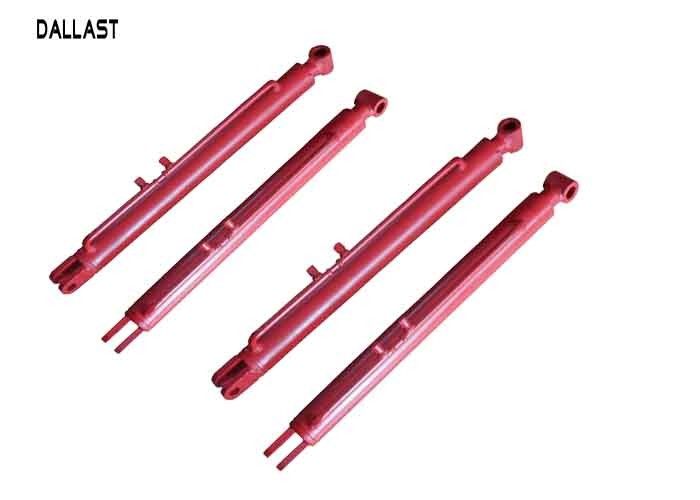

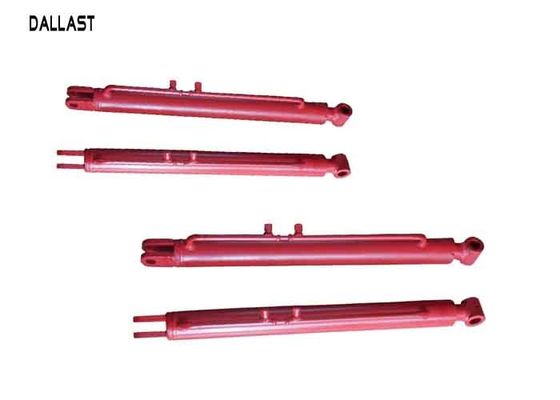

HSG Farm Hydraulic Cylinders Piston Steel Rod Small Bore Size Stroke 800mm Chrome

HSG Farm Hydraulic Cylinders Piston Steel Rod Small Bore Size Stroke 800mm Chrome

    • HSG Farm Hydraulic Cylinders Piston Steel Rod Small Bore Size Stroke 800mm Chrome
    • HSG Farm Hydraulic Cylinders Piston Steel Rod Small Bore Size Stroke 800mm Chrome
    • HSG Farm Hydraulic Cylinders Piston Steel Rod Small Bore Size Stroke 800mm Chrome
    • HSG Farm Hydraulic Cylinders Piston Steel Rod Small Bore Size Stroke 800mm Chrome
  • HSG Farm Hydraulic Cylinders Piston Steel Rod Small Bore Size Stroke 800mm Chrome

    Product Details:

    Place of Origin: China
    Brand Name: DALLAST or on request
    Certification: GS, RoHS, CE, ISO9001
    Model Number: customied

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 20-30 work days or on request
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Temperature: Normal Temperature Pressure: Normal Pressure
    Piston Seal: Urethane Seal, Hyva, Parker Etc. Rod Size: Custom
    Power: Hydraulic Structure: Piston Cylinder

    HSG Farm Hydraulic Cylinders Piston Steel Rod Small Bore Size Stroke 800mm Chrome



    Harvester hydraulic cylinder HSG series cylinder, by ysing the function into the header tank, ear box cylinder, cylinder, gear grinder bridge cylinder, cylinder and the rear axle steering cylinder, mainly used in wheat harvester, corn harvester, rice harvester, forage harvester harvesting machinery etc...



    Benefits:



    Piston rod: Stainless steel, alloy steel, carbon steel etc.

    End cap: Casting seal

    Mounting style: Pins and clips included

    Rod wiper: Urethane snap in

    Packing: Goods are packed with export standing standard

    Warranty: We offer 12 months warranty

    Low noise:Good quality and low noise

    Low energy:The oil way design perfectly and can save the energy,avoid wast

    Operating temperature: -30 to +80 degrees Celsius, but the unit should not be used when oil is frozen

    Speed range: Speed range of operation (excluding cushion parts) is less than 200mm/s



     Type

    Rod size

    (mm)

    Pressure

    (MPa)

    Cylinder bore

    (mm)

    Plunger diameter

    (mm)

    Stroke

    (mm)

    Installation

    distance

    (mm)

    HSG50*120-340 90 10 100 50 120 340
    HSG50*200-470 60 9 80 50 200 470
    HSG50*310-580 65 12 80 50 310 580
    HSG63*240-656 34 12 98 63 240 656
    HSG63*195-405 54 12 99 63 195 405
    HSG80*275-1017 76 12 90 80 275 1017
    HSGE50*400-810 89 12 97 50 400 810
    HSGE50*445-955 56 13 96 50 445 955
    HSG80/45*885-1321 45 14 96 80/45 885 1321
    HSG50/30*200-555 54 13 96 50/30 200 555
    HSG40/22*230-370 34 12 90 40/22 230 370
    HSG40/22*69-362 34 12 98 40/22 69 362



     type

    operating pressure

    (Bar)

    diameter of rod(mm)

    total stroke

    (mm)

    closed length

    (mm)

    cylinder bore (mm)
    HSG80/50*190-800 160 80 190 800 80
    HSG80/50*210-510 230 80 210 510 75
    HSG70/30*760-1055 340 70 760 1055 75
    HSG40/22*270-495 210 40 270 495 100
    HSG50/25*150-800 203 50 150 800 90
    HSG63/35*500-780 109 63 500 780 110



    Tips:

    Many mounting styles

    Several bore sizes and in varying strokes

    Many of these sizes are available



    We offer OEM, ODM. If you needed, please feel free to contact us and send us the drawings:

    A

    1. Bore size

    2. Stroke length

    3. Rod diameter

    4. Mounting type

    5. Mounting length

    6. Paint color requirement



    B. The product application description details

    1. Type of machine(loader, steer loader, excavator, and etc.)

    2. Type of function(hoist, swing, steering, and etc.)

    3. Type of structure(piston, telescopic)

    4. Single or double acting

    5. Operating pressure



    Installation method:

    The most commonly used mounting options are flange, trunnion, clevis, pin-eye, cross-tube, spherical, and tang. Cylinder mounting is chosen based upon the application’s requirements.



    Quality control:
    1. Seiko secret agents, to ensure quality of the piston rod.
    2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
    3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.



    After-sales service:

    1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc

    2. Pre-sale service and free consultation service.

    3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.

    4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).

    5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.

    6. Service Center all over the world for after sales problems.



    Delivery:

    1.We export from Qingdao port by sea.

    2. Goods will be delivered on time.

    3. Goods can arrive at the destination safely.



    HSG Farm Hydraulic Cylinders Piston Steel Rod Small Bore Size Stroke 800mm Chrome
