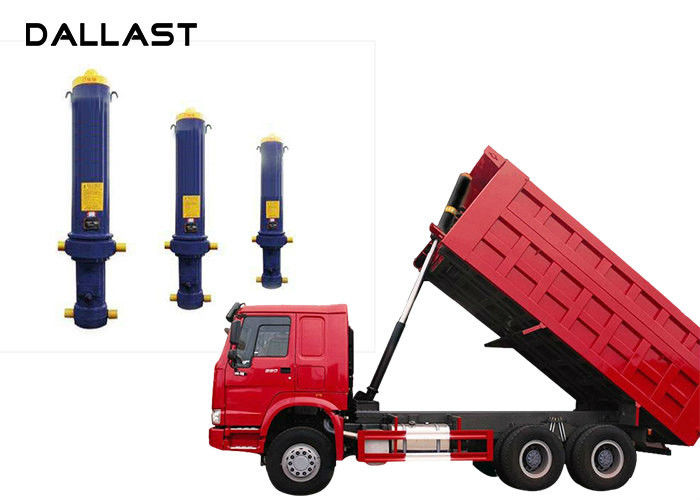

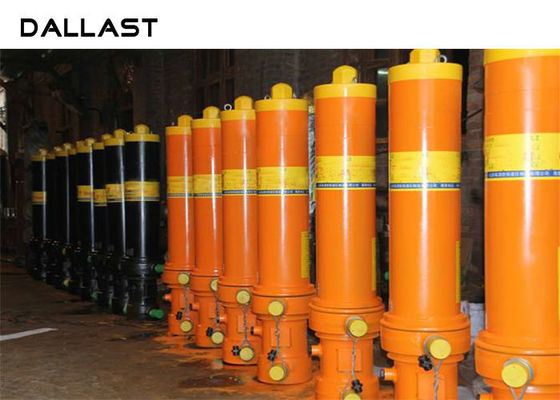

Dump Truck Single Acting Hydraulic Ram 3 / 4 / 5 Stage Chrome Telescopic

Dump Truck Single Acting Hydraulic Ram 3 / 4 / 5 Stage Chrome Telescopic

    • Dump Truck  Single Acting Hydraulic Ram 3 / 4 / 5 Stage Chrome Telescopic
    • Dump Truck  Single Acting Hydraulic Ram 3 / 4 / 5 Stage Chrome Telescopic
  • Dump Truck  Single Acting Hydraulic Ram 3 / 4 / 5 Stage Chrome Telescopic

    Product Details:

    Place of Origin: Shandong
    Brand Name: DALLAST
    Certification: GS CE ISO9001-2009 TS16949
    Model Number: Standard , Non-standard

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiable
    Packaging Details: shrink film, pallet, plywood case and carton box
    Delivery Time: 20- 25 days after down payment
    Payment Terms: T/T, L/C, Western Union,paypal
    Supply Ability: 50000PCS per year
    Contact Now
    Detailed Product Description
    Model: One Way Hydraulic Cylinder Structure: Telescoping Sleeve Cylinder
    Stage: Multi Stage Capacity Lifting: 13 - 90 Ton
    Seals: Parker / Nok / Hallite / Taiwan Stroke: 3000mm-11000mm
    Hydraulic Cylinder: 16-32Mpa Mounting Type: Earring-trunnion, Double Trunnion, Double Earring,Hinge Shaft
    High Light:

    single acting telescopic cylinder

    ,

    industrial hydraulic cylinders

    3 4 5 Stage Chrome Telescopic Dump Truck Single Acting Hydraulic Ram



    Application: The Hydraulic Cylinders can be used for Dump Truck, Tipper Truck, Trailer, Agricultural Machinery, Engineering Machinery, Garbage Truck, Landing Platform etc;

    Main export market:US, Canada, South Korea, Russia, Australia, Indonesia, Malaysia, Fiji Island, Kenya, Philippines, Bolivia, the United Arab Unites,Singapore



    Product Descripition :





    FRONT END HYDRAULIC CYLINDER



    MODEL STAGES STROKE 1ST STAGE DIA VEHICLE BODY LENGTH(m)
    FC-3-150-3872 3 3872 150 4.6~5.2
    FC-3-150-4270 3 4270 150 5.5~5.6
    FC-4-160-4280 4 4280 160 5.5~5.6
    FC-4-180-4280 4 4280 180 5.5~5.6
    FC-4-180-4650 4 4650 180 5.8~6.1
    FC-4-180-5000 4 5000 180 6.5~7.3
    FC-4-180-5390 4 5390 180 6.6~7.8
    FC-4-180-5780 4 5780 180 6.8~8.0
    FC-4-196-5460 4 5460 196 6.6~7.8
    FC-5-196-5780 5 5780 196 6.8~8.0
    FC-5-196-6180 5 6180 196 7.5~8.2
    FC-5-221-9030 5 9030 221 11.0~12.0
    FC-5-214-7800 5 7800 214 9.0~10.0

    FE Type Hydraulic Cylinder
    Model Lifting capacity Rated pressure Bore diameter Stroke Mounting distance
    (Ton) (MPa) (mm)
    FE-3-E158*3880 31.4 16 158/136/115 3880 1697
    FE-3-E158*4090 31.4 16 158/136/115 4090 1732
    FE-4-E158*4280 31.4 16 158/136/115/95 4280 1345
    FE-4-E158*4650 31.4 16 158/136/115/95 4650 1546
    FE-4-E158*4940 31.4 16 158/136/115/95 4940 1529
    FE-4-F175*4280 48 20 175/158/136/115 4280 1345
    FE-4-F175*4620 48 20 175/158/136/115 4620 1479
    FE-4-F175*5180 48 20 175/158/136/115 5180 1604
    FE-5-F175*5780 48 20 175/158/136/115/95 5780 1559
    FE-5-F175*6180 48 20 175/158/136/115/95 6180 1505
    FE-6-F175*6060 48 20 175/158/136/115/95/70 6060 1240
    FE-5-F200*6180 62.8 20 200/175/158/136/115 6180 1527
    FE-5-F200*6350 62.8 20 200/175/158/136/115 6350 1673

    Cylinder Advantages:

    • Material:Alloy steel,Carbon steel,Stainless steel,27SiMn
    • Rod :Chrome plated and quenched.Has good mechanical properties, long service life
    • Cylinder:Honing machining /boring /rolling
    • Professional manufacturer& supplier of Hydraulic Cylinders
    • Hydraulic Cylinders Certification ISO9001:2009, SGS, TS16949, RoHS, CNAS Certification
    • Experience in export North America, Australia, Asia, Middle East, Africa
    • Hydraulic Cylinders can be Make according to client's requirements
    • One year warranty and long time track service is offered to solve any problems you meet after sale.

    1.Design Services
    Our design team has experience in cardan shaft relating to product design and development. If you have any needs for your new product or wish to make further improvements, we are here to offer our support.

    2.Product Services
    raw materials → Cutting → Forging →Rough machining →Shot blasting →Heat treatment →Testing →Fashioning →Cleaning→ Assembly→Packing→Shipping

    3.Samples Procedure
    We could develop the sample according to your requirement and amend the sample constantly to meet your need.

    4.Research & Development
    We usually research the new needs of the market and develop the new model when there is new cars in the market.

    5.Quality Control
    Every step should be special test by Professional Staff according to the standard of ISO9001 and TS16949.

    6.Certification
    Should your products require testing and certification to comply with international standards, we can arrange this with independent, fully recognized testing companies such as SGS, Intertec, Bureau Veritas, Lloyd's Register or the testing company of your choice.



    Dump Truck  Single Acting Hydraulic Ram 3 / 4 / 5 Stage Chrome Telescopic
