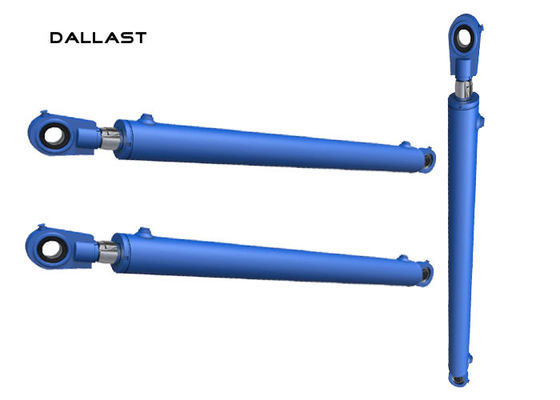

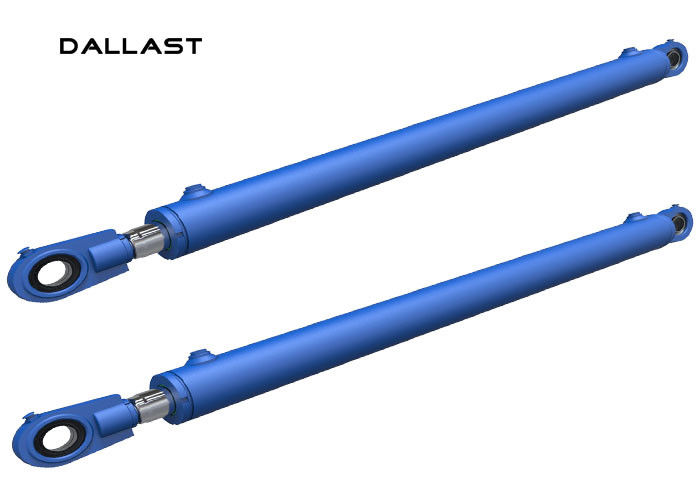

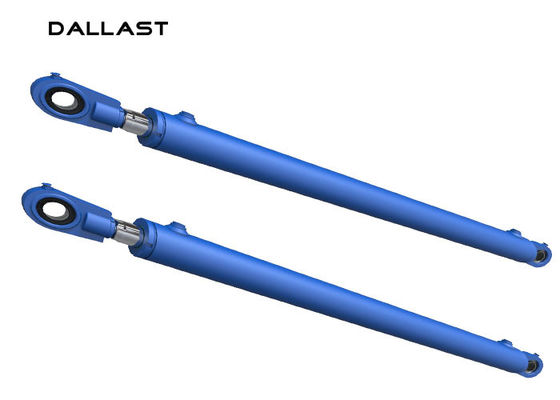

Piston Type Hydraulic Cylinder Ram Welded Double Acting Long Stroke

Piston Type Hydraulic Cylinder Ram Welded Double Acting Long Stroke

    • Piston Type Hydraulic Cylinder Ram Welded Double Acting Long Stroke
    • Piston Type Hydraulic Cylinder Ram Welded Double Acting Long Stroke
    • Piston Type Hydraulic Cylinder Ram Welded Double Acting Long Stroke
  • Piston Type Hydraulic Cylinder Ram Welded Double Acting Long Stroke

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Specification: Steel Transport Package: Wooden Packing Or Customer′s Needs
    Power: Hydraulic Model Number: Customization
    Acting Way: Double Acting Sample: Available

    Welded Double Acting Long Stroke Piston Type Hydraulic Cylinder Ram



    Features:

    1 .This series of cylinder includes 28 type of single piston double action differential motion cylinder based on 14 kinds of cylinder diameter and two groups of velocities

    2. Flange type, Middle axle and basic mounting type

    3. Mounting type and size according to ISO3320 Standard

    4. Particularly suitable for the bad environment ,heavy-load

    5. Widely used in iron and steel,die-casting,machinery



    Specifications:

    Application industry, machinery, mine, metallurgy, shipping, water conservancy, etc.
    Working Length 500mm—16000mm
    Tube inside diameter 40mm—1000mm
    Piston diameter 12mm—410mm
    Working Pressure 70 bar—700 bar
    Seal type PARKER (USA) or MERKEL (Germany)





    Double acting hydraulic cylinders use hydraulic pressure to actuate the rod to extend and retract in both directions.

    High pressure hydraulic cylinders have significantly smaller and lighter designs than standard cylinders, which saves substantial weight and space in equipment. High pressure hydraulic cylinders are used in applications that need high forces and short or medium strokes, such as material testing and material transforming.

    Hydraulic pistons are short, cylinder shaped discs housed within cylinder barrels to compartmentalize the enclosed space within hydraulic cylinders.

    Hydraulic rams are the large output pistons.

    Mobile hydraulic cylinders are used in many applications, such as snowplows, construction equipment, personnel lifts and material handling equipment.





    If you need hydraulic cylinder, please let us know your requirement:

    1. Bore, stroke and piston rod

    2. Mounting type and mounting distance

    3. Working condition and working frequency

    After we know this, we can design the cylinder for you, welcome to contact us

    Certainly, you can provide drawing and product photos so that we can understand your meaning more conveniently, or you can also send us sample and we produce for you according to your sample.

    Characteristics:

    A. Larger diameter, more lifting capacity.

    B. Max working pressure reaches 190 bars, better anti-pressure ability

    C. Maintenance-free support, longer working life.

    D. Integrated design, easy to maintain.

    E. 100% tested, guarantee high quality.

    Flanges, trunnions, clevises, lugs are common hydraulic cylinder mounting options. The piston rod also has mounting attachments to connect the cylinder to the object or machine component that it is pulling/pushing



    Quality control

    · All specification is designed by professional engineer

    · All material is high quality-Seal kits are purchased from USA, Japan, UK and Sweden.

    · All material is processed by skilled workers and advanced CNC lathe



    Piston Type Hydraulic Cylinder Ram Welded Double Acting Long Stroke
