2 / 3 Stage Hydraulic Oil Cylinder for Agricultural Dump Truck Trailer Tipper

2 / 3 Stage Hydraulic Oil Cylinder for Agricultural Dump Truck Trailer Tipper

    • 2 / 3 Stage Hydraulic Oil Cylinder for Agricultural Dump Truck Trailer Tipper
    • 2 / 3 Stage Hydraulic Oil Cylinder for Agricultural Dump Truck Trailer Tipper
    • 2 / 3 Stage Hydraulic Oil Cylinder for Agricultural Dump Truck Trailer Tipper
  • 2 / 3 Stage Hydraulic Oil Cylinder for Agricultural Dump Truck Trailer Tipper

    Product Details:

    Place of Origin: Shandong
    Brand Name: DALLAST
    Certification: GS CE ISO9001-2009 TS16949
    Model Number: Standard , Non-standard

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiable
    Packaging Details: shrink film, pallet, plywood case and carton box
    Delivery Time: 20- 25 days after down payment
    Payment Terms: T/T, L/C, Western Union,paypal
    Supply Ability: 50000PCS per year
    Contact Now
    Detailed Product Description
    Model: Single Acting Hydraulic Cylinder Coating: Chrome
    Warranty: 12 Months After Shipping Arrival Structure: One Way Telescopic Sleeve Cylinder
    Hydraulic Pressure: 16-32 Mpa Material: Alloy Steel,Carbon Steel,Stainless Steel,27SiMn
    Rod: Chrome Plated And Quenched Cylinder: Honing Machining /boring /rolling

    2 3 Stage Hydraulic Oil Cylinder for Agricultural Dump Truck Trailer Tipper



    Cylinder Advantages:





    Application: The Hydraulic Cylinders can be used for Dump Truck, Tipper Truck, Trailer, Agricultural Machinery, Engineering Machinery, Garbage Truck, Landing Platform etc;


    • Professional manufacturer& supplier of Hydraulic Cylinders
    • Hydraulic Cylinders Certification ISO9001:2009, SGS, TS16949, RoHS, CNAS Certification
    • Experience in export North America, Australia, Asia, Middle East, Africa
    • Hydraulic Cylinders can be Make according to client's requirements
    • One year warranty and long time track service is offered to solve any problems you meet after sale.

    We can design piston hydraulic cylinder for what you want if you can provide us the following technical parameters:

    • Bore diameter;

    • Rod diameter;

    • Stroke;

    • Working pressure;

    • Front and back end mount type;

    • Using frequency;

    • Work Environment;

    Certainly, you can provide drawing and product photos so that we can understand your meaning more conveniently, or you can also send us sample and we produce for you according to your sample.

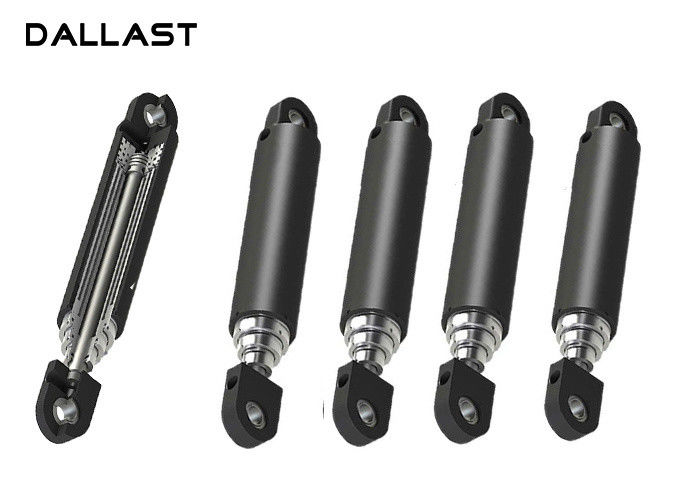

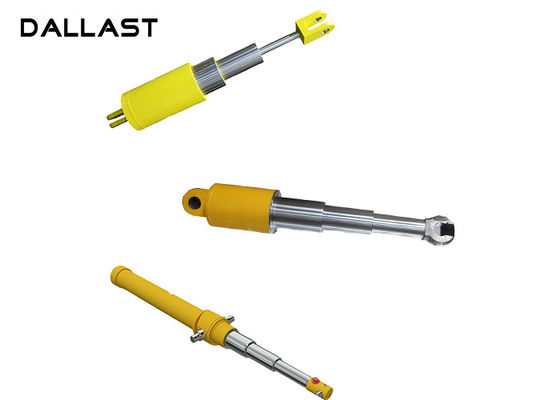

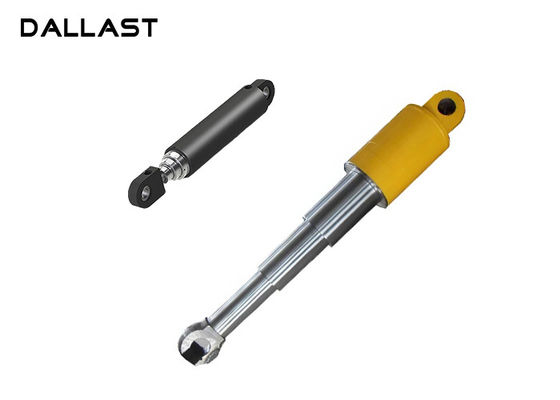

    Multi-stage telescopic sleeve cylinder


    Multi-stage hydraulic cylinder for large stroke and installation distance or total length (stroke can be greater than the installation distance or total length) occasions, single-acting and double-acting. The company's hydraulic cylinder with a compact layout, reasonable structure, reliable work, easy assembly and disassembly, easy maintenance and so on. Widely used in various mining machinery, lifting transport machinery, environmental protection machinery and transport machinery (wrecker). The series of hydraulic cylinder working pressure, working stroke, installation distance, the use of series, all levels of stroke and piston rod diameter and other parameters can be designed according to customer needs.



    Quality control

    • All specification is designed by professional engineer
    • All material is high quality-Seal kits are purchased from USA, Japan, UK and Sweden.
    • All material is processed by skilled workers and advanced CNC lathe
    • All cylinders are 100% tested before package to ensure every cylinder is qualified for its purpose
    • Package is air cushion film for each cylinder and steel case for all cylinders to ensure goods can arrive at customer safely

          We firmly believe that quality products from the outstanding design and concept,engineers with rich experience in our strong technical team. Analyzes, calculations, strength check and motion simulation in variety of software to make our design more close to actual working conditions, We will consider various factors in the design stage to avoid each risk of project failure. Our design and products could perfectly match customers' varied needs.



    TG series hydraulic cylinder for vechiles

    Model Rated pressure Bore diameter Installation distance Stroke
    (MPa) (mm) (mm) (mm)
    4TG-E180*800 16 180 140 800
    4TG-E160*800 16 160 140 800
    4TG-E150*830 16 150 160 830
    4TG-E140*800 16 140 140 800
    4TG-E140*730 16 140 140 730
    4TG-E135*800 16 135 140 800
    4TG-E135*730 16 135 140 730
    4TG-E130*750 16 130 110 750
    3TG-E150*800 16 150 140 800
    5TG-E130*750 16 130 140 750
    3TG-E130*900 16 130 140 900
    4TG-E110*1360 16 110 140 1360
    3TG-E110*1530 16 110 140 1530
    3TG-E110*1350 16 110 140 1350
    3TG-E110*1020 16 110 140 1020
    3TG-E110*900 16 110 260 900
    2TG-E110*1020 16 110 140 1020
    3TG-E90*1155 16 90 140 1155
    3TG-E90*1020 16 90 140 1020
    3TG-E90*900 16 90 260 900
    3TG-E90*750 16 90 140 750
    2TG-E90*900 16 90 140 900
    2TG-E90*600 16 90 260 600
    2TG-E90*500 16 90 260 500
    3TG-E70*750 16 70 140 750



    2 / 3 Stage Hydraulic Oil Cylinder for Agricultural Dump Truck Trailer Tipper
