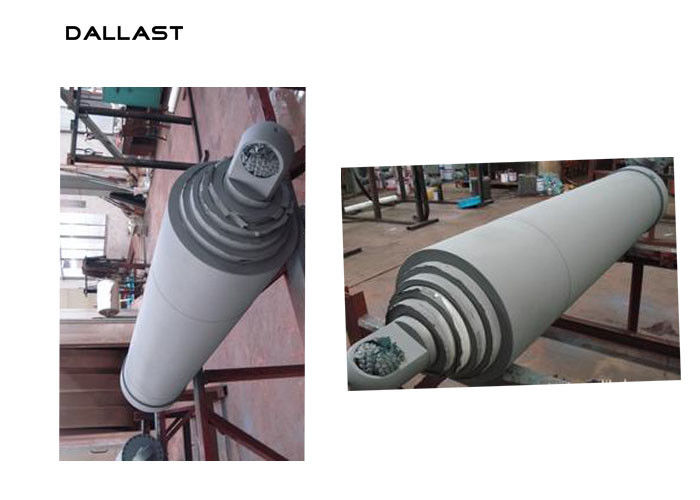

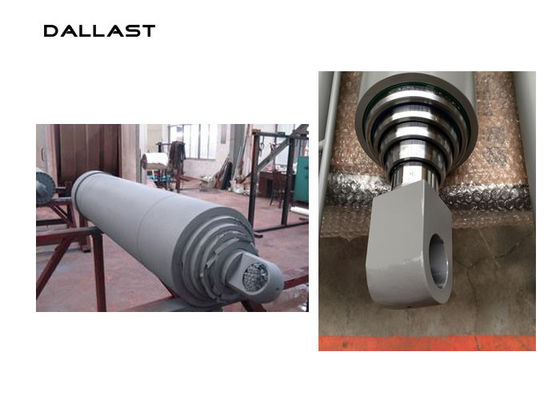

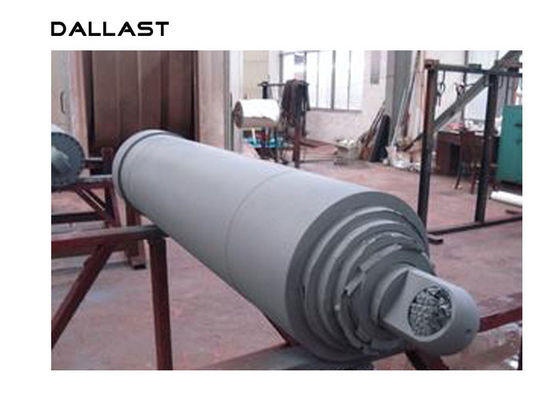

High Pressure Multi Stage Hydraulic Cylinder Single Acting Long Stroke

High Pressure Multi Stage Hydraulic Cylinder Single Acting Long Stroke

    • High Pressure Multi Stage Hydraulic Cylinder Single Acting Long Stroke
    • High Pressure Multi Stage Hydraulic Cylinder Single Acting Long Stroke
    • High Pressure Multi Stage Hydraulic Cylinder Single Acting Long Stroke
  • High Pressure Multi Stage Hydraulic Cylinder Single Acting Long Stroke

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Cylinder Diameter: 80mm Power: Hydraulic
    Sample: Available Service: After-sale Service
    Model Number: OEM Material: Steel
    High Light:

    multi stage hydraulic ram

    ,

    hollow hydraulic cylinder

    High Pressure Long Stroke Single Acting Multi Stage Hydraulic Cylinder



    The Single-Acting Hydraulic Cylinder block models a device that converts hydraulic energy into mechanical energy in the form of translational motion. Hydraulic fluid pumped under pressure into the cylinder chamber forces the piston to move and exert force on the cylinder rod. Single-acting cylinders transfer force and motion in one direction only. Use an external device, such as a spring, weight, or another opposite installed cylinder, to move the rod in the opposite direction.



    If you need OEM service, please apply the following details:

    Bore
    Rod
    Stroke
    Mounting type
    Working pressure
    Application
    Material



    Hydraulic cylinders are single or double acting hydraulic motors with linear reversible motion. They are used as driving units of hydraulically operated equipment, vehicle hoists, forest, agricultural and construction machinery, and in the mobile hydraulics generally. Wide variety of types and terminations of cylinders and pistons makes big variability of applications possible. Hydraulic cylinders are designed for a nominal pressure up to 320 bars according to their type and size. The range of bore of cylinder is from 32 to 100 mm, the diameter of piston rods is from 22 to 80 mm, maximal stroke is up to 1000 mm. The manufacturing of hydraulic cylinders also depends on the weight (due to our limits of manipulation). In frame of these limit parameters, hydraulic cylinders can be designed with the required functionality and built-in dimensions. Steering servo units are application of hydraulic cylinders.



    Feature:

    A. Small size, light weight, high strength: Adopting material selection and processing technology of oil cylinder body and piston rod according to the analysis of load frequency strength, fatigue design and welding technology, through ultrasonic flaw detection, Lightweight, high strength, high reliability.

    B. Sealing system: The company's unique sealing system design to prevent soil sand dust, reduce oil leakage, get a good piston rod film.

    C. Cylinder: According to the appropriate strength, the company made the right size of the cylinder's inner surface, after rolling processing, reaching a good roughness and surface hardness, improved wear resistance.

    D. Piston rod: based on high-frequency quenching, chrome-plated, improved rust, wear and resistance to injury. In addition, CNC numerical control to ensure the smooth surface of the mesh textured and high finish, thus ensuring a good surface oil film, improve product life.

    E. Safety / buffer function: according to need, can be easily installed with a variety of special slow return, counter balance and emergency shutdown and other functions of the valve. But also, built-in can absorb the shock in the terminal end of the buffer mechanism



    Available Features Include:

    • Single-acting, double-acting

    • A wide variety of mounting configurations and end mechanisms

    • A variety of integral valves

    • Special housing and rod materials for corrosive or hostile environments

    • Various packing, seal, and wiper materials for optimum performance and life in the customer's application

    • Various surface treatments and finishes for optimum performance and life in the customer's application





    High Pressure Multi Stage Hydraulic Cylinder Single Acting Long Stroke
