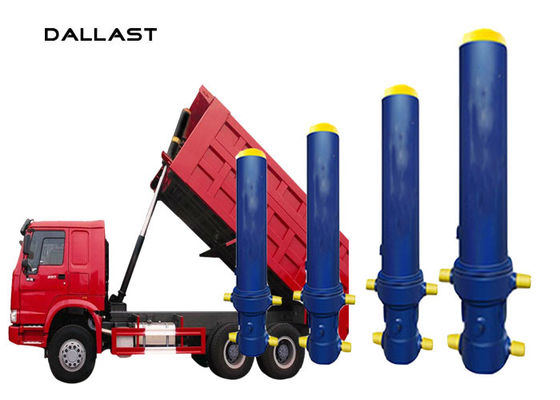

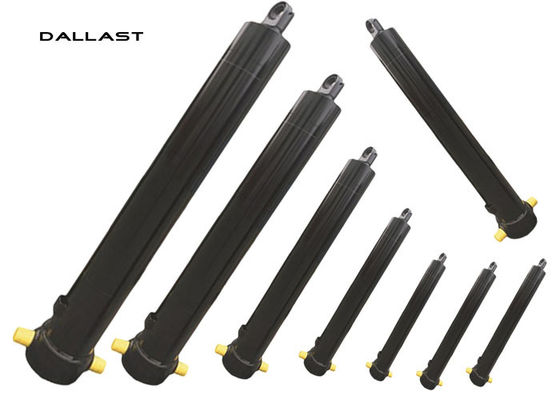

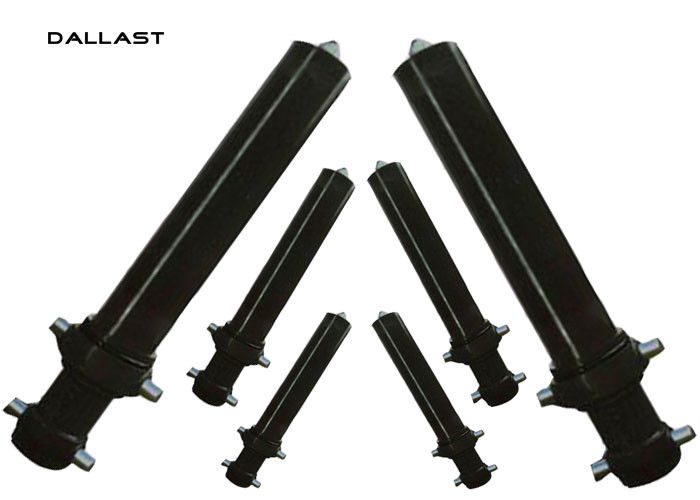

20 Inch Stroke Dump Trailer Hydraulic Cylinder , Single Acting Hydraulic Ram

20 Inch Stroke Dump Trailer Hydraulic Cylinder , Single Acting Hydraulic Ram

    • 20 Inch Stroke Dump Trailer Hydraulic Cylinder  , Single Acting Hydraulic Ram
    • 20 Inch Stroke Dump Trailer Hydraulic Cylinder  , Single Acting Hydraulic Ram
    • 20 Inch Stroke Dump Trailer Hydraulic Cylinder  , Single Acting Hydraulic Ram
  • 20 Inch Stroke Dump Trailer Hydraulic Cylinder  , Single Acting Hydraulic Ram

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Installation: Front End Loader Standard: Standard
    Rod Clevis: Ductile Iron Capacity: OEM,ODM,Sample
    Type: Hydraulic Single Cylinder Place Of Origin: Shandong China

    Single Acting Hydraulic Ram Dump Trailer Hydraulic Cylinder 20 Inch Stroke



    China dallast Hydraulics works with companies in all types of industries, including trucking(car tailgate), food processing, manufacturing, heavy equipment, medical equipment, material handling(dock leveler, hydraulic/electric scissor lift, hydraulic/electric stacker, electric forklift )and more. In companies as diverse as they come, and in countries all over the world, our products can be found.

    When your product needs to move – up and down, side to side or with heavy loads – we can help. Our AC Power Units, DC Power Units, Pumps, valves and Dyna-Lift Work Stations are the finest in the industry. Industries We Serve The industries we serve are vastly diverse. Some are the traditional ones you think of when you hear "hydraulics," and others will surprise you.



    Other information:

    Used in earthmoving machines, machine building applications, petrochemicals, marine applications, plastics, automobiles, dishes ends
    Available in multistage (telescopic), single acting, double acting, tie rod, cushion at either or both the ends twin pistons in dia ranging from 20 to -1000mm and stroke up to 5200 mm with max pressure up to 350bar
    Used for PU seals, bronze filled teflon, chevron, asbestos impregnated nitride seals, rod seals
    The cylinders are either machined from imported own carbon. seamless tubes or steel casting duly ground and honed
    Piston rod of EN-8 is ground and hard chrome plated



    Model Stroke

    Mounting

    distance

    The largest sleeve OD Model Stroke Mounting distance Largest Stage Diameter
    FC-4-129-4280 4280mm 343mm 218mm FE-4-149-4280 4280mm 1450mm 149mm
    FC-4-129-5180 5180mm 343mm 218mm FE-4-149-4940 4940mm 1529mm 149mm
    FC-4-149-3680 3680mm 343mm 218mm FE-4-149-4620 4620mm 1484mm 149mm
    FC-4-149-3980 3980mm 343mm 218mm FE-4-169-4280 4280mm 1394mm 169mm

    Specifications:
    1. Oil port connection: internal thread or flange
    2. Cylinder head and cylinder connection: thread (less than 80mm diameter) card key (more than 80mm diameter)
    3. Buffer parts: without buffer (Phi 40, Phi 50, Phi 63 without buffer)
    Both ends with buffer
    Without the rod side buffer (-2 ratio, only the cylinder head with buffer)
    Rod side band buffer
    4. Piston rod end connection mode: rod end screw
    In the end of the thread rod (for D-63mm diameter)
    End of the rod end of the threaded rod end of the earrings with bushing
    Rod end inner threaded rod head earrings with bushing
    Rod end threaded rod head earrings for joint bearing
    Screw head mounted within the rod end joint bearing earrings (D-63 for bore diameter)
    Integral piston rod and ring belt bushing
    Integral piston rod ring joint bearing
    5. Installation: cylinder head earrings with bushing
    Cylinder head earrings with joint bearing/hinge axis/end flange/middle flange



    20 Inch Stroke Dump Trailer Hydraulic Cylinder  , Single Acting Hydraulic Ram
