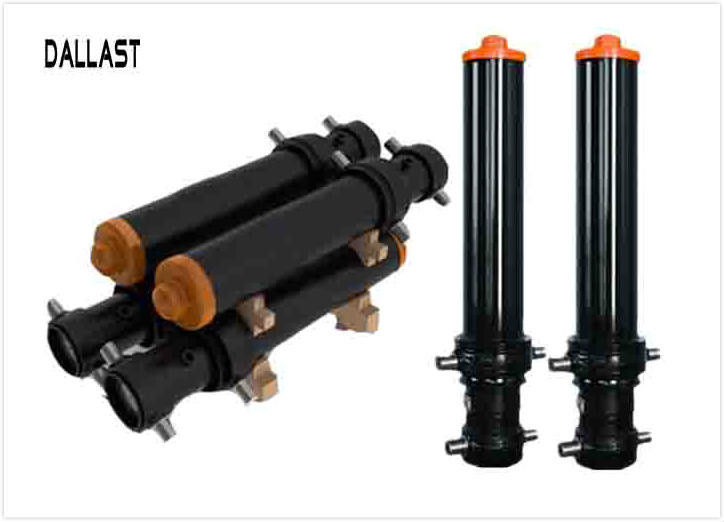

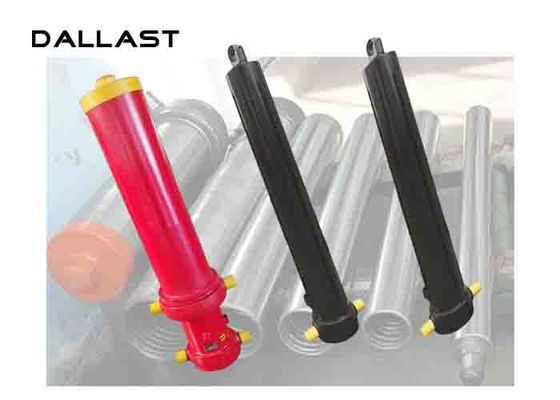

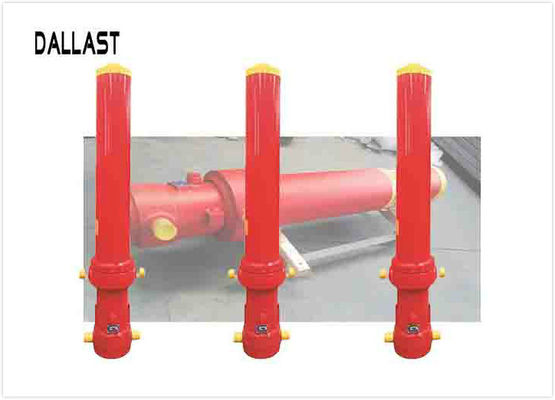

Multi Stage Telescopic Hydraulic Cylinder Chrome Painted Hinge Axis for Trailer

Multi Stage Telescopic Hydraulic Cylinder Chrome Painted Hinge Axis for Trailer

    • Multi Stage Telescopic Hydraulic Cylinder Chrome Painted Hinge Axis for Trailer
    • Multi Stage Telescopic Hydraulic Cylinder Chrome Painted Hinge Axis for Trailer
    • Multi Stage Telescopic Hydraulic Cylinder Chrome Painted Hinge Axis for Trailer
  • Multi Stage Telescopic Hydraulic Cylinder Chrome Painted Hinge Axis for Trailer

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: custom

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 15-25 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Material: Stainless Steel, Alloy Steel Color: Custom
    Pressure: Normal Pressure Temperature: Normal Temperature
    Capacity: 13-90 Tons Rod Diameter: Custom
    Structure: Single Acting Application: Dump Truck, Trailer, Dumper

    Single Acting Multi Stage Hydraulic Cylinder Chrome Painted Hinge Axis for Trailer



    Features:

    Acts on the piston to push the piston rod out



    Choice of Mounting Styles, Cross Tube or Trunnion



    Hard Chrome Plated Stages



    Big lifting force



    Higher efficiency



    Stronger weather resistance



    Better performance



    the number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement



    The length of a hydraulic cylinder is the total of the stroke, the thickness of the piston, the thickness of bottom and head and the length of the connections





    Product introduction:

    Single-acting multistage telescopic sleeve hydraulic cylinder, large stroke,can be used for heavy vehicles, agricultural vehicles and other vehicles tilting the bucket lift cylinder.

    standard product type stage

    pressure

    (Bar)

    the first stage

    bore diameter

    (mm)

    stroke

    (mm)

    mounting distance

    (mm)

    3TG-E180*4210ZZ 3 160 180 4210 425
    4TG-E160*4130ZZ 4 160 160 4130 222
    4TG-E160*5150ZZ 4 160 160 5150 222
    4TG-E180*4000ZZ 4 160 180 4000 425
    4TG-E180*5390ZZ 4 160 180 5390 425
    3TG-E180*3850ZZ 3 160 180 3850 425
    4TG-E180*5390ZZ 4 160 180 5390 325
    3TG-E150*3830EZ 3 160 150 3830 1635
    3TG-E150*3360EZ 3 160 150 3360 1370
    4TG-E150*4400EZ 4 160 150 4400 1390
    4TG-E180*4595EZ 4 160 180 4595 1500
    If you are interested in our products, contact us and send us the drawings:

    The drawing details are as follows.

    A

    1. Bore size

    2. Stroke length

    3. Rod diameter

    4. Mounting type

    5. Mounting length

    6. Paint color requirement

    B

    The product application description details

    1. Type of machine(loader, steer loader, excavator, and etc.)

    2. Type of function(hoist, swing, steering, and etc.)

    3. Type of structure(piston, telescopic)

    4. Single or double acting

    5. Operating pressure



    Tips:

    In order to tilt a dump truck to angles of 60° or more, telescopic cylinders with strokes approaching the total bed length are required.



    About piston rod:

    High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.



    Material:

    Stainless steel is used in many of our designs to ensure corrosion, it does not end the life of the cylinder prematurely. Many stainless steel threads are coated with a proprietary substance to prevent thread galling to facilitate ease of assembly over the life of the cylinder, when periodic maintenance is required such as seal replacement.



    Warranty:
    We offer 12 months warranty.

    From the date of delivery within 12 months, our company is responsible for the replacement, repair or return. The user is a hydraulic cylinder propulsion, to improve the inherent quality of the fuel tank is the purpose of our factory production and the pursuit of goals.



    The most common problems when selecting a hydraulic cylinder are as follows:

    A. Retract dimension (Center of pin to center of pin)

    B. Stroke length (Inches)

    C. Mounting types

    D. Port Size and Type (SAE or NPT)

    E. Pressure rating (PSI)

    F. Bore Diameter (Inches)

    G. Application details
