|Place of Origin:||Shandong, China|
|Certification:||Gs, RoHS, Ce, ISO9001|
|Minimum Order Quantity:||1 Piece|
|Packaging Details:||Plywood Box or Pallet or as your requirements|
|Delivery Time:||15-25 Days|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||1 Piece Per Year|
|Origin:||Shandong, China||Work Temperature:||Normal Temperature|
|Adjusted Form:||Regulated Type||Certification:||Gs, RoHS, Ce, ISO9001|
|Material:||Stainless Steel||Standard:||Standard, Nonstandard|

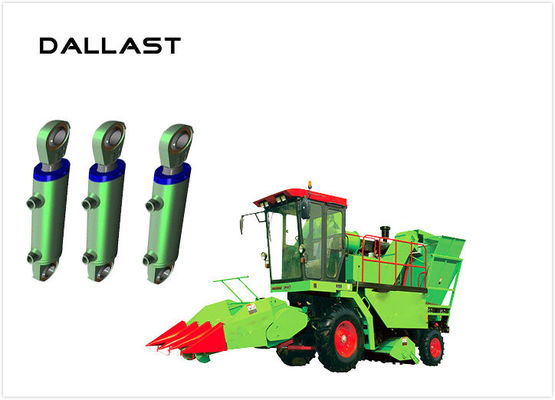

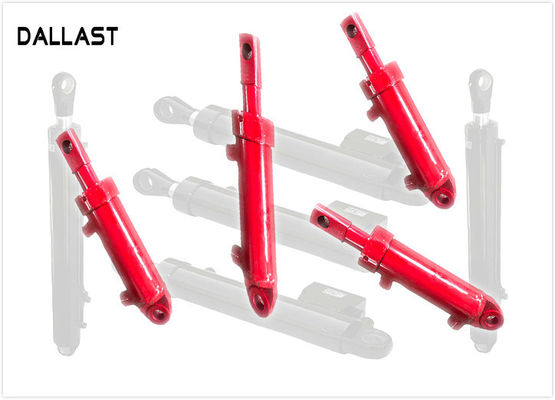

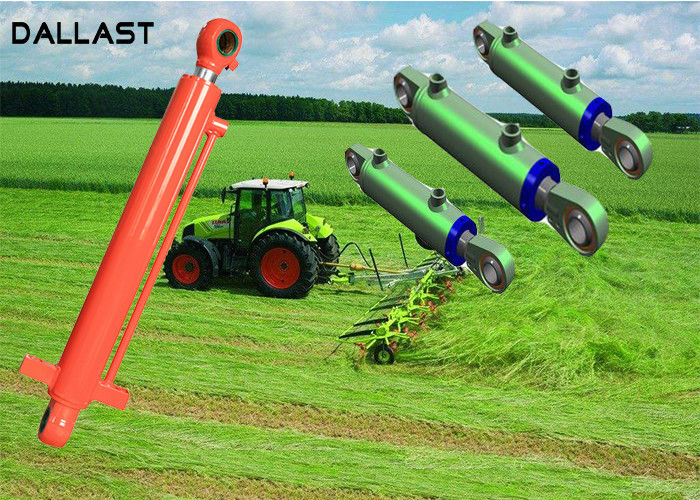

Dual Acting Chrome Hydraulic Ram Piston Type for Agricultural Farm Truck
How Double Acting Hydraulic Cylinders Work and Their Uses:
With double acting hydraulic cylinders, the fluid acts on both sides of the piston, alternating between each side. They can be attached to external devices by using a gland to prevent fluid escape. Double acting cylinders have two ends that are supplied with hydraulic fluid, which is used to retract and extend the piston.We can provide :
Piston type hydraulic cylinder ram
Plunger type hydraulic cylinder ram
Telescopic type hydraulic cylinder ram
Welded hydraulic cylinder ram
Flange mounted hydraulic cylinder ram
Tie rod hydraulic cylinder ram
Double acting hydraulic cylinder ram
Single acting hydraulic cylinder ram
Multistage hydraulic cylinder ram
Servo hydraulic cylinder ram
Hydraulic cylinders are an important industrial tool used in machinery, manufacturing, and a number of other functions. The basic design of a hydraulic cylinder has changed little over the years. Hydraulic cylinders have enormous push/pull power and can haul, dig, push, drill, and move heavy objects and materials. The work by exploiting the mechanics of pressure exerted on the piston. The force is equal to the surface area multiplied by pounds per square inch of pressure.
Custom hydraulic cylinder (OEM):
Not only we could manufacture all kinds of heavy duty hydraulic cylinder construction and mining
trucks according to the drawing from customers,but also we could make a design according to
customers’requirements . If you require our engineer to make a design , please advise us the
following specification :
1. Rated pressure
2. Working pressure
3. Test pressure
4. Working condition and environment ,for example ,temperature ,working frequency
5. Pulling force ,and return stroke force
6. Pulling and return speed
7. Assembly size
8. Seal ring requirements .For example , brand ,seal material etc .
9. Tube and piston rod raw material requirements
10. Piston rod surface treatment requirements, for example
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. We will quote you the exact price and make the exact cylinder according to your specification and drawing.
Q: How long is your warranty period?
A: We offer 12 months warranty period after on board.
Q: Could we get small quantity samples?
A: Yes! We understand the quality test is important and we are glad to make the sample for you. The MOQ is 1pcs.
Q: What is your payment term?
A: For sample payment, generally 100% T/T payment in advance, west union, paypal.
For order payment, generally is 30% T/T in advance, 70% balance before shipment.
Q: How do you deliver the products?
A: --By sea
--By couriers. DHL, UPS, TNT and so on.
We manufacture all kinds of hydraulic cylinders.We also make customer hydraulic cylinders according to your requirements.
To get an immediate quotation,please provide us with the following necessary parameters:
1) Bore diameter
2) Piston rod diameter
3) Stroke length
4) Working pressure
5) Mounting method
|Product Name||Double Acting Hydraulic Cylinders|
|Application||Dump truck,Tipper,Trailer, Excavator|
|Material of cylinder tube||Alloy steel,Stainless steel|
|Seal||Parker, Merkel, Hallite|
|Coating||All tubes are chrome plated|
|Mounting Type||Earring-trunnion, double trunnion, double earring (eye end)|
|Plunger||20#, 45# steel with high frequency quenching|
|Certification||ISO9001:2008 ,SGS, TS16949|
|Package||Shrink film, pallet, plywood case and carton box|
|Main export market||USA, Canada, South Korea, Russia, Australia, Indonesia, Malaysia, Fiji Island, Kenya, Philippines, Bolivia, the United Arab Unites, Singapore|
|Payment terms||T/T, L/C, West Union|
|Delivery time||15-25 Days|
