|Pressure:||2600-5000 PSI||Temperature:||Normal Or High Temperature|
|Seal Kit:||Parker Etc||Structure:||Single Acting Or On Request|
|Body Material:||27SIMN||Warranty:||One Year|

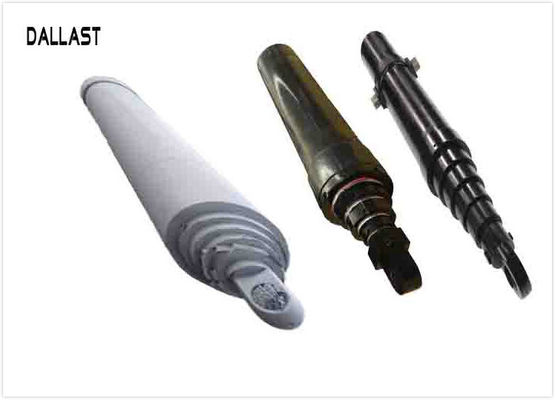

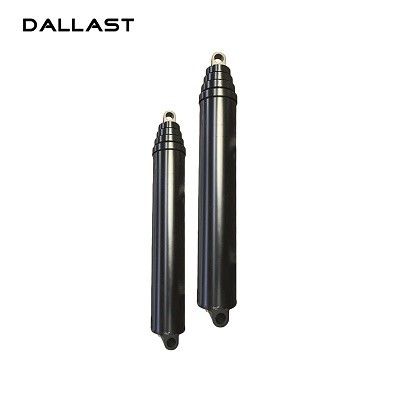

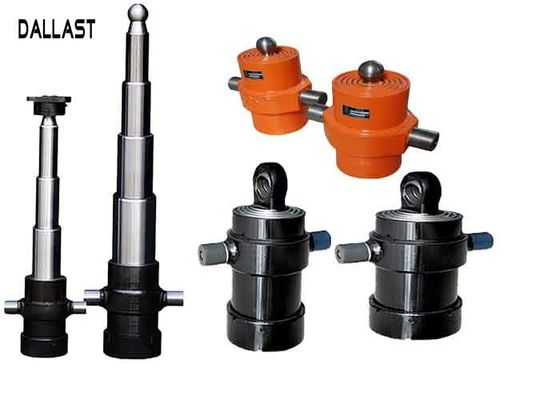

Dump Trailer Telescoping Hydraulic Cylinder Multi Stage Single Acting Hydraulic RAM
a. TG multistage series of single-acting multistage telescopic sleeve hydraulic cylinder, with small size, large stroke, etc., can be used for heavy vehicles, agricultural vehicles and other vehicles tilting the bucket lift cylinder.
b. A typical application for a single-acting cylinder is a lift truck, where the load of the fork pushes the cylinder back.
c. The length of a hydraulic cylinder is the total of the stroke, the thickness of the piston, the thickness of bottom and head and the length of the connections.
1. Choice of Mounting Styles, Cross Tube or Trunnion
2. Hard Chrome Plated Stages
3. Big lifting force
4. Higher efficiency
5. Stronger weather resistance
6. Better performance
Various options available based on application requirements
1. bore size (INCH): up to 17''
2. length (INCH): up to 500
3. rod diameter (INCH):up to 16''
4. temperature range (F): -40 DEG TO 275 DEGF
In order to tilt a dump truck to angles of 60Â° or more, telescopic cylinders with strokes approaching the total bed length are required.
About piston rod:
High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.
Low friction, high load piston seals with outboard wear bands are standard. Loaded lip seals and cast iron rings are optional.
Stainless steel is used in many of our designs to ensure corrosion, it does not end the life of the cylinder prematurely. Many stainless steel threads are coated with a proprietary substance to prevent thread galling to facilitate ease of assembly over the life of the cylinder, when periodic maintenance is required such as seal replacement.
We offer 12 months warranty.
From the date of delivery within 12 months, our company is responsible for the replacement, repair or return. The user is a hydraulic cylinder propulsion, to improve the inherent quality of the fuel tank is the purpose of our factory production and the pursuit of goals.
The most common problems when selecting a hydraulic cylinder are as follows:
A. Retract dimension (Center of pin to center of pin)
B. Stroke length (Inches)
C. Mounting types
D. Port Size and Type (SAE or NPT)
E. Pressure rating (PSI)
F. Bore Diameter (Inches)
G. Application details
If you are interested in our products, contact us and send us the drawings:
The drawing details are as follows.
1. Bore size
2. Stroke length
3. Rod diameter
4. Mounting type
5. Mounting length
6. Paint color requirement
B. The product application description details
1. Type of machine(loader, steer loader, excavator, and etc.)
2. Type of function(hoist, swing, steering, and etc.)
3. Type of structure(piston, telescopic)
4. Single or double acting
5. Operating pressure
