| Place of Origin: | Shandong, China |
| Brand Name: | Dallast |
| Certification: | Gs, RoHS, Ce, ISO9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Box or Pallet or as your requirements |
| Delivery Time: | 15-25 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1 Piece Per Year |
| Warranty: | One Year | Material: | Stainless Steel |
|---|---|---|---|
| Pressure: | Medium Pressure | Certification: | Gs, RoHS, Ce, ISO9001 |
| Seals: | Parker, Merkel, Hallite | Working Method: | Straight Trip |
| High Light: | long stroke single acting hydraulic cylinder,small bore long stroke hydraulic cylinders |
||

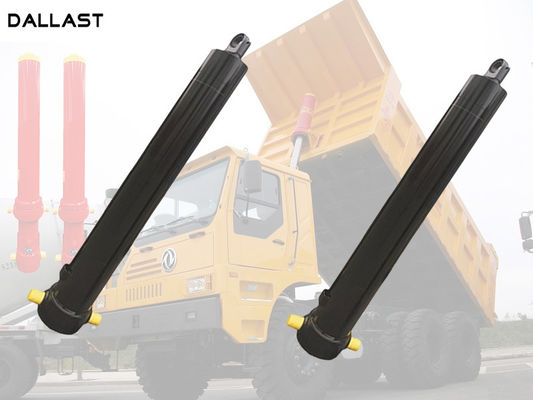

Single Acting Long Stroke Hydraulic Cylinder for Agricultural Dump Truck
We have technology terms and can design drawing according to provided information for your review.
We are solding our products to nearly the whole global.
Appreciate for your kind help, we will be able to offer you the correct and exact quotation as soon as we got
your inquiry.Thank you!
We are China Oil Cylinder manufacturer offer best Oil Cylinder OEM, ODM,service.
We are China welded hydraulic cylinder manufacturer offer best welded hydraulic cylinder OEM, ODM,service.
Attention:
1.We have special departments to ensure that no strict quality control any quality problem before delivery.
2.Carefully check goods size table and product specifications. Please check detail with customer service before buying
3.Receiving or take the goods, please sign the bill after the first inspection, if have damaged items, or a few goods phenomenon, please do not sign, the first contact with the customer details and make logistics company personnel or personnel in proof of delivery after processing, or receipt of any problems after the Seller shall not be held responsible.
The information about our company:
Dallast Technology Co., Ltd. is specialized in manufacturing all kinds of hydro pneumatic components, aluminum parts and plastic parts. Our main products are including pneumatic cylinder, (air cylinder), hdraulic cylinder, air filter, air regulator, air lubricator, pneumatic fitting, hydraulic fitting, tubes, muffler (silencer) etc.
Parameter:
| Model | Extended Stages | Working Pressure | Max. stage | Max. stroke | Lifting Capacity | Suitable Length of Truck Body |
| (MPa) | Diameter(mm) | (mm) | (ton) | (m) | ||
| 129-3E-3880 | 3 | 16-19 | 129 | 3880 | 20-35 | 5.2 |
| 149-3E-3880 | 3 | 16-19 | 149 | 3880 | 25-45 | 5.2 |
| 149-3E-4280 | 3 | 16-19 | 149 | 4280 | 25-45 | 5.6 |
| 149-4E-3880 | 4 | 16-19 | 149 | 3880 | 25-40 | 5.2 |
| 149-4E-4280 | 4 | 16-19 | 149 | 4280 | 25-40 | 5.6 |
| 169-4E-4280 | 4 | 16-19 | 169 | 4280 | 30-50 | 5.2-5.6 |
| 169-4E-4640 | 4 | 16-19 | 169 | 4640 | 32-55 | 5.6-6.1 |
| 169-4E-5000 | 4 | 16-19 | 169 | 5000 | 32-60 | 6.2-6.8 |
| 169-4E-5180 | 4 | 16-19 | 169 | 5180 | 32-60 | 6.2-6.9 |
| 169-4E-5390 | 4 | 16-19 | 169 | 5390 | 32-60 | 6.2-6.9 |
| 169-4E-5460 | 4 | 16-19 | 169 | 5460 | 32-60 | 6.5-7.3 |
| 185-4E-4280 | 4 | 16-19 | 185 | 4280 | 25-45 | 5.6 |
| 185-4E-4640 | 4 | 16-19 | 185 | 4640 | 30-45 | 5.6-6.1 |
FAQ:
1. Q: How to know more about the Hydraulic cylinder?
A: Just view the quick details, all the information is correct.
2. Q: If I want to do my own size hydraulic cylinder, how should I do?
A: Contact with me in TraderManager, or just send me a mail, or add my Skype: handa886. We will offer you quickly.
3. Q: How should I do, If I want to place an order?
A: Send me an inquiry, then I will check with you for all things. After all things cearly, we will make a PI for you, details see order process.
4. Q: Is there any warranty about the cylinder?
A: Yes, all our hydraulic parts, we have 1 year warranty.

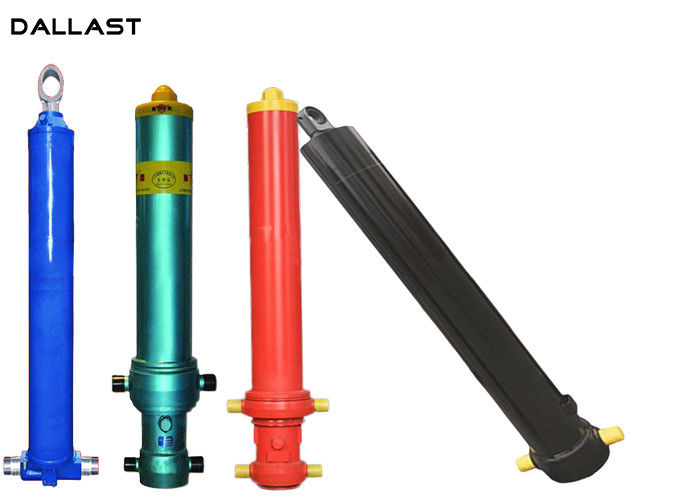

Product Show:
