    Product Details:

    Place of Origin: CHINA
    Brand Name: DALLAST APT
    Certification: TUV SGS
    Model Number: Model

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Packaging Details: wood box
    Delivery Time: 15-25 days
    Payment Terms: T/T
    Supply Ability: 1000000pcs/year
    Contact Now
    Detailed Product Description
    Material: 45# 42CrMo4 40CrMo Neutral Salt Spray Test: NSS 300;500 Hours
    Type: Hollow/Solid Rod Surface Hardness: >HV850
    NSS Testing Standing: Une-en Iso9227:2017 SURFACE ROUGHNESS: Ra≤0.2 Micron And Rt≤2 Micro
    Application Environment: At Sea Or In Harsh Environments Color: Black

    42CrMo Hydraulic Cylinder  Hollow Piston Rod Hard Chrome Plated Steel Bar Neutral Salt Spray test 500 hours





    NSS( Salt Spray test )Testing Standing une-en iso9227:2017



    · Sal solution: 50 (+/- 5) g/l of NaCl. Water is demineralized and salt purity is 99.5%.

    · Environmental temperature: 35 °C.

    · pH of salt solution is 6.8.

    · Volumen of salt solution is 38.4 ml/day.

    · Density of salt solution is 1,030 g/cm3.

    · Spraying is 1.5 (+/- 0.5) ml/h.

    Test Result :NSS can endure 300 hours ;500 hours; 800 hours

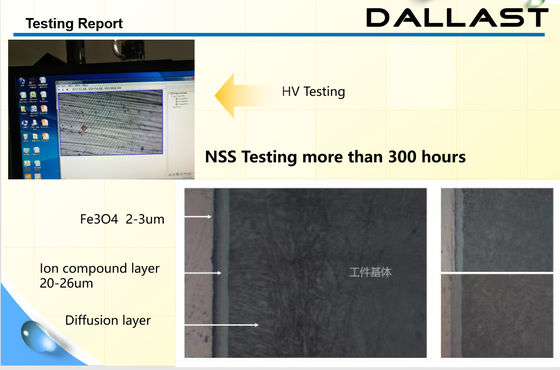

    TUV NSS Testing Report      SGS NSS Testing Report


    NSScan more than  300 hours
                                      400 hours
                                      600 hours
                                      800 hours
                                      1000 hours , we can product it as your request detail

    we also can supply the samples for your request


    Applications:

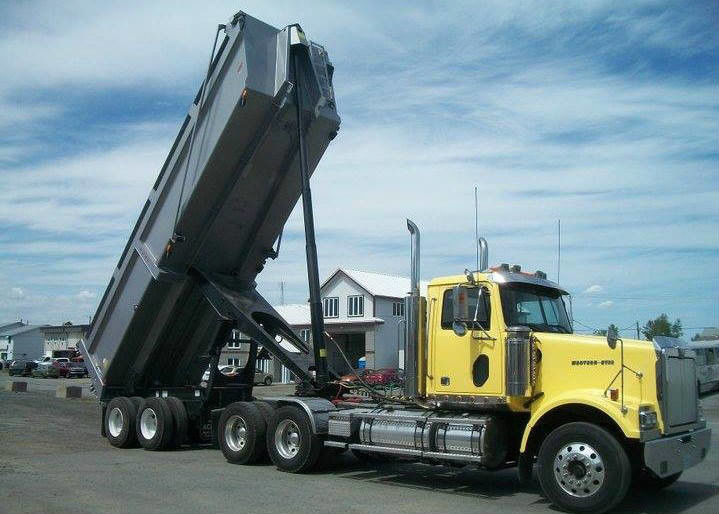

    Single-acting/double-acting hydraulic cylinders --- Garbage trucks, dump trucks, agricultural equipment, ships, mines, drilling platforms, machinery in harsh environments



    Crafts Process Hardening Force Remove



    In the whole crafts process, there are 2 times remove hardening forces: the first remove hardening force in the heat treatment process, hardening force remove is about 80%; the second remove hardening force in the surface treatment process, hardening force remove is about 90%-95%. Therefore, the piston rod is not easily deformed during use or transportation.



    Detail



    Color Black
    Type Hollow/Solid Rod
    Application Environment At sea or in harsh environments
    Surface hardness >HV860
    SURFACE ROUGHNESS Ra≤0.2 micron and Rt≤2 micro
    OLERANCES ON DIA ISO f10 on the diameter
    LENGTH MAX 5 meter



    Hollow/Solid Rod

    specification φ3-φ12 φ16-φ25 φ30-φ50 φ55-φ100 φ105-φ120
    Length 200-2000 200-3000 200-5000 200-10000 1000-10000



    NSS

    (Neutral Salt Spray test)





    More than 240 hours ;

    more than 360 hours;

    more than 500 hours ;

    more than 100 hours;

    Surface hardness >860 HV0.1 The straightness 0.15/1000mm
    Accuracy g6 grade h7 grade Hardened layer depth 0.8-3mm
    Roundness tolerance



    <=0.01

    APT thickness 10um-40um
    Full length tolerance



    <=0.02

    The materiel 42CrMo4
    Surface roughness



    Ra 0.2- 0.4



    CHEMICAL COMPOSITION
    Material C% Mn% Si% S% P% V% Cr%
    Ck45 0.42-0.50 0.50-0.80 0.04 0.035 0.035
    ST52 0.22 1.6 0.55 0.035 0.04
    20MnV6 0.16-0.22 1.30-1.70 0.10-0.50 0.035 0.035 0.10-0.20
    42CrMo4 0.38-0.45 0.60-0.90 0.15-0.40 0.03 0.03   0.90-1.20
    40Cr 0.37-0.45 0.50-0.80 0.17-0.37       0.80-1.10
    MECHANCIAL PROPERTIES
    Material T.S N/MM2 Y.S N/MM2 E%(MIN) CHARPY CONDITION
    CK45 610 355 15 >41J NORMALIZE
    CK45 800 630 20 >41J Q + T
    ST52 500 355 22   NORMALIZE
    20MnV6 750 590 12 >40J NORMALIZE
    42CrMo4 980 850 14 >47J Q + T
    40Cr 1000 800 10   Q + T



    45#  DALLAST Hollow Piston Chrome Plated Steel Pipe Neutral Salt Spray Test 100 Hours





    45#  DALLAST Hollow Piston Chrome Plated Steel Pipe Neutral Salt Spray Test 100 Hours

    45#  DALLAST Hollow Piston Chrome Plated Steel Pipe Neutral Salt Spray Test 100 Hours
