Hollow Piston Rod Hard Chrome Plated Steel Bars Hydraulic Cylinder 42Crmo4 Black Color

Hollow Piston Rod Hard Chrome Plated Steel Bars Hydraulic Cylinder 42Crmo4 Black Color

    • Hollow Piston Rod Hard Chrome Plated Steel Bars Hydraulic Cylinder 42Crmo4 Black Color
    • Hollow Piston Rod Hard Chrome Plated Steel Bars Hydraulic Cylinder 42Crmo4 Black Color
    • Hollow Piston Rod Hard Chrome Plated Steel Bars Hydraulic Cylinder 42Crmo4 Black Color
  • Hollow Piston Rod Hard Chrome Plated Steel Bars Hydraulic Cylinder 42Crmo4 Black Color

    Product Details:

    Place of Origin: CHINA
    Brand Name: DALLAST APT
    Certification: TUV SGS
    Model Number: Model

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Packaging Details: wood box
    Delivery Time: 15-25 days
    Payment Terms: T/T
    Supply Ability: 1000000pcs/year
    Contact Now
    Detailed Product Description
    Material: 45# 42CrMo4 40CrMo Neutral Salt Spray Test: NSS 300;500 Hours

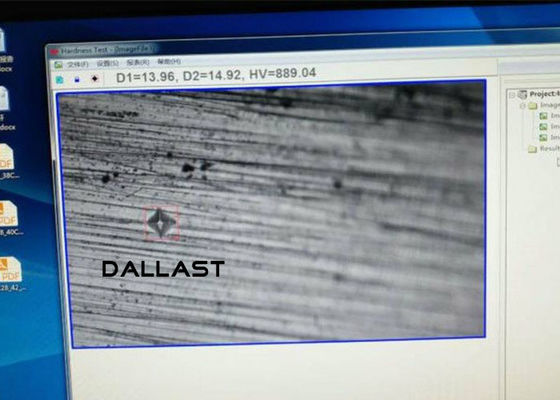

    Type: Hollow/Solid Rod Surface Hardness: >HV850
    NSS Testing Standing: Une-en Iso9227:2017 SURFACE ROUGHNESS: Ra≤0.2 Micron And Rt≤2 Micro
    Application Environment: At Sea Or In Harsh Environments Color: Black

    42CrMo4 Hollow Piston Rod Hard Chrome Plated Steel Bar For Doubel Acting Hydraulic Cylinder NSS 500 hours




    NSS Testing Standing une-en iso9227:2017(Neutral Salt Spray test)

    · Sal solution: 50 (+/- 5) g/l of NaCl. Water is demineralized and salt purity is 99.5%.

    · Environmental temperature: 35 °C.

    · pH of salt solution is 6.8.

    · Volumen of salt solution is 38.4 ml/day.

    · Density of salt solution is 1,030 g/cm3.

    · Spraying is 1.5 (+/- 0.5) ml/h.

    NSS (Neutral Salt Spray test): More than 200 hours;
                                                     More than 360 hours;
                                                     More than 500 hours;
                                                     More than 100 hours;



    TUV NSS Testing Report        SGS NSS Testing Report



    Crafts Process Hardening Force Remove

    In the whole crafts process, there are 2 times remove hardening forces: the first remove hardening force in the heat treatment process, hardening force remove is about 80%; the second remove hardening force in the surface treatment process, hardening force remove is about 90%-95%. Therefore, the piston rod is not easily deformed during use or transportation.



    Applications:



    Single-acting/double-acting hydraulic cylinders --- Garbage trucks, dump trucks, agricultural equipment, ships, mines, drilling platforms, machinery in harsh environments



    MECHANCIAL PROPERTIES



    Material T.S N/MM2 Y.S N/MM2 E%(MIN) CHARPY CONDITION
    CK45 610 355 15 >41J NORMALIZE
    CK45 800 630 20 >41J Q + T
    ST52 500 355 22   NORMALIZE
    20MnV6 750 590 12 >40J NORMALIZE
    42CrMo4 980 850 14 >47J Q + T
    40Cr 1000 800 10   Q + T



    Our advantage

    1. Customization and OEM service is acceptable for us.

    2. All our hydraulic cylinders and accessories obtained ISO 9001:2008 certification.

    3. Samples can be providing to you before starting cooperation.

    4. We are factory and can assure the prompt delivery time.

    5. Packing can be customized. Often using standard export wooden case packing.

    6.Neutral Salt Spray test,more than 300 hours ,500 hours ,also can reach 1000 hours.....

       can compare with chorm rod to do NSS .
