|Place of Origin:||Shandong China|
|Certification:||GS CE ISO 9001|
|Minimum Order Quantity:||1 piece|
|Packaging Details:||Carton or According to Customer's Require|
|Delivery Time:||15-25 days|
|Payment Terms:||T/T, Western Union, D/A, D/P, L/C|
|Supply Ability:||50000 Pieces/Per year|
|Structure:||General Cylinder||Model Number:||Hydraulic Cylinder|
|Extended Stages:||3-7 Stages||Heat Treatment:||Quenching|
|Power:||Hydraulic||Body Material:||Stainless Steel|
|Surface Treatment:||Chrome Plating|

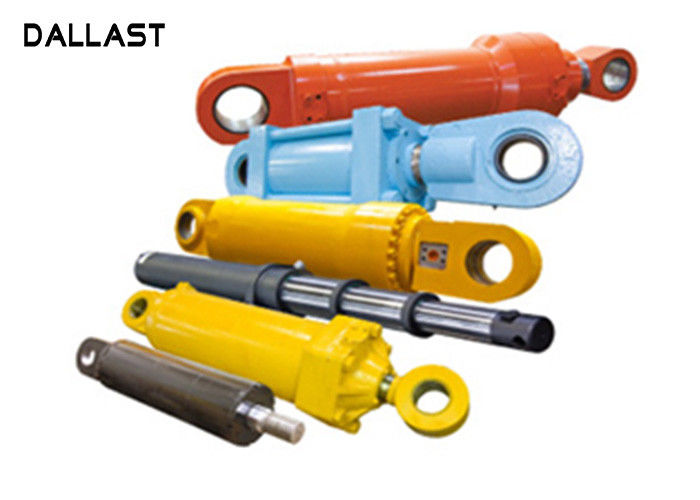

Hydraulic Cylinder, Double Acting Welded, Polished Chrome Piston Rod
The Double-Acting Hydraulic Cylinder (Simple) block represents a simplified version of a double-acting hydraulic cylinder, developed for applications where only the basic cylinder functionality must be reproduced, in exchange for better numerical efficiency. For these reasons, such factors as fluid compressibility, friction, and leakages are assumed to be negligible. The hard stops are assumed to be fully inelastic, to eliminate any possible oscillations at the end of the stroke. The model is especially suitable for real-time and HIL (hardware-in-the-loop) simulation, if such simplifications are acceptable.
|Model Type||piston type|
|Surface Treatment||Chrome Plating|
|Working type||double acting|
|Warranty||One year after shipping arrival|
|Payment terms||L/C, T/T, West Union|
|Delivery time||15- 25 days after down payment|
We can design and produce most kind hydraulic cylinder.Single acting,double acting hydraulic cylinder.Big size and little size hydraulic cylinder.3-6 stages Telescopic hydraulic cylinder.

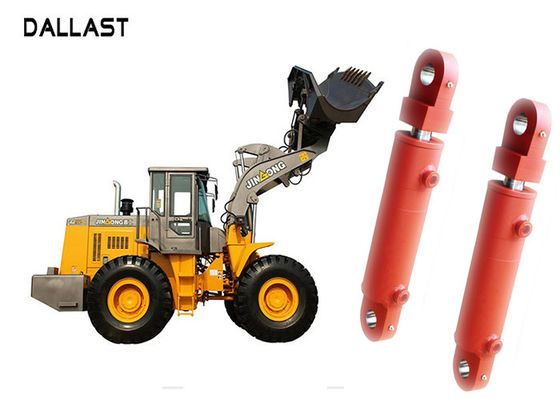

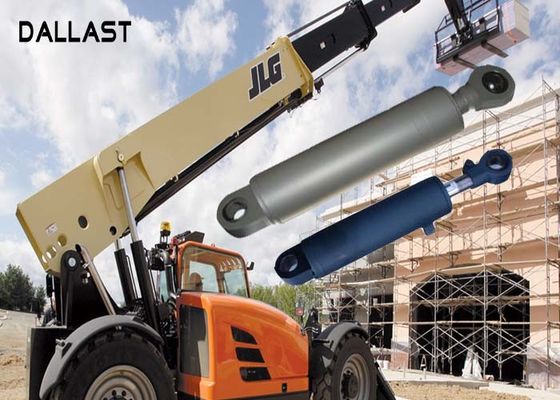

(1) Construction Machinery cylinders for: loaders, excavator, forklift, bulldozer, dumper, roller, crane ,pump truck,garbage truck,garbage compactor and boat used hydraulic cylinder etc.
(2) Metallurgical Machinery cylinders for: decelerator, tile press etc.
(3) Mining Machinery cylinders for: crasher, coal cutter shield tunneling machine and dame gate etc.
(4) Agricultural & forestry machinery cylinders for: soil preparation machine, harvester, weeder etc.
1. Raw materials entering the factory, 27SiMn, 40CrMo, ST52, 45# steel tubes or bars for choice
2. Do the pre-treatment including pickling, phosphating and saponification, and then cold-draw the seamless steel tubes.
3. Put the steel tubes into the tempering furnace to do the stress relief annealing in convenience of the subsequent the processing.
4. Multi-roll straightening machine, with 10 straightening points, achieves the automatic rolling straight improving the efficiency greatly
5. Heat treatment to obtain work pieces with different properties by changing their internal microstructure or surface chemical composition.
6. Cylindrical degree can be controlled within 0.03mm and the surface roughness is up to 0.4 by honing with range:φ40mm-φ450mm and longest length: 12000mm
