| Place of Origin: | Shandong China |
| Brand Name: | DALLAST |
| Certification: | GS CE ISO 9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton or According to Customer's Require |
| Delivery Time: | 15-25 days |
| Payment Terms: | T/T, Western Union, D/A, D/P, L/C |
| Supply Ability: | 50000 Pieces/Per year |
| Brand Name: | Dallast | Type: | Hydraulic Double Cylinder |
|---|---|---|---|
| Seal Kits: | Halllite, Parker, Merkel, NOK Etc | Working Medium: | Hydraulic Oil |
| Factory Visit: | Available | Acting Style: | Double Acting |
| Max Pressure: | 210 Bar | Place Of Origin: | Shandong, China (Mainland) |
| High Light: | double acting hydraulic cylinder,double acting ram cylinder |
||

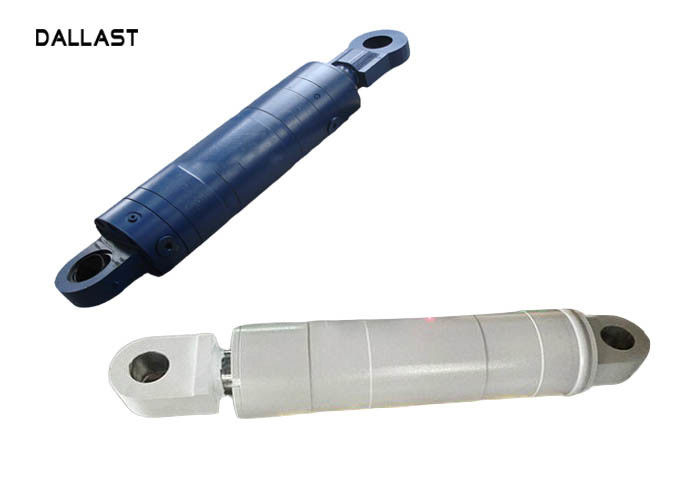

Carbon Steel Double Acting Heavy Duty Hydraulic Ram Cylinder for Mining Machine
Product Name | Double Acting Hydraulic Cylinder for Mining Machine |
Material | 27SiMn,CK45 |
| Certification | ISO9001:2008, SGS, TS16949 |
Working emperature | -20℃-80℃ |
Working Pressure | 25MPa |
| Mounting Type | Earring-trunnion, double trunnion, double earring (eye end) |
ROD | Chrome plate after high-frequency quenching |
| Stroke | 10 Inch - 400 Inch |
Color | Customized |
| Coating | All tubes are chrome plated |
Used | Tunneller... |
What Is dallast Strengths?
DALLAST have all the equipment for the production of hydraulic cylinders .
DALLAST provide design services according to your requirements .
DALLAST can supply metric and imperial size cylinder .
DALLAST imported seals as required .
DALLAST has its own electroplating plant.
Complete quality control system .
ST52,16Mn,45#,20# tube
Chrome plated thickness >30 mircron.
Single/double acting.
3~5 stages cylinder.
Working Pressure:16~22Mpa or more high pressure.
Various mounting type.
Easy installation.
High quality guarantee.
Low friction seals.
Constant speed and force
What Is The Specifications Of DALLAST's Hydraulic Cylinder?
No. | Model | Cylinder Bore | The diameter of rod | Stroke | Mounting distance |
1 | FT800.55A.012 | 80 | 32 | 200 | 535 |
2 | TB600.55B.2a | 75 | 32 | 110 | 432 |
3 | TB600.55C.2a | 75 | 32 | 110 | 432 |
4 | FT700.55D.001 | 100 | 40 | 200 | 516 |
5 | TF1004.55.8 | 90 | 35 | 200 | 535 |
6 | TG1204.551.1 | 100 | 40 | 185 | 535 |
7 | TG1854.551.2 | 110 | 70 | 182 | 535 |
8 | TG1854.551.2 | 110 | 70 | 182 | 535 |
Strict Quality Control System
1. Salt spray test is a major use of salt spray test equipment created by the artificial simulation of salt spray environmental conditions to assess the corrosion resistance of products or metal materials, environmental testing
2. Mechanical performance testing equipment can meet the requirements of mechanical testing, all the use of computer digital display, so theaccuracy is more accurate, so that the mechanical properties of each cylinder barrel has been greatly improved.
3. Every workpiece is machined according to the confirmed drawings and will be inspected casually by QC according to a certain proportion. The traceable record shall be clear and traceable.
4. The qualified parts are assembled into one cylinder and then the pressure test will be done.
5. Before and after assembly, the basic dimensions and workmanship will be inspected again.
6. A inspection report will come into being before delivery.
This cylinder is widely used in the hydraulic system of various types of compressed hydraulic sanitation truck.
The cylinder has the characteristics of reasonable structure, reliable work, easy installation and easy maintenance.
The special design is available in accordance with user’s special requirements and technical parameters.
