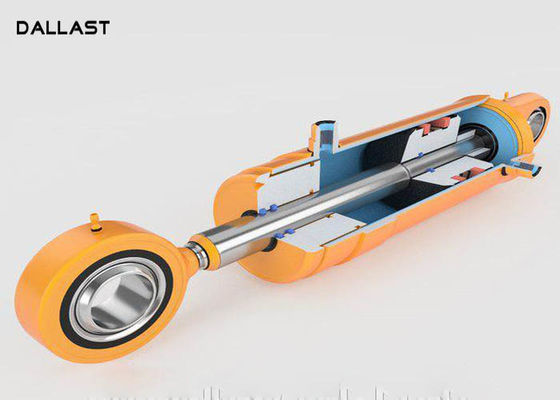

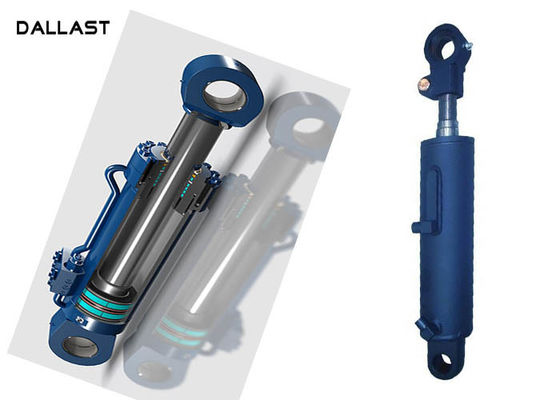

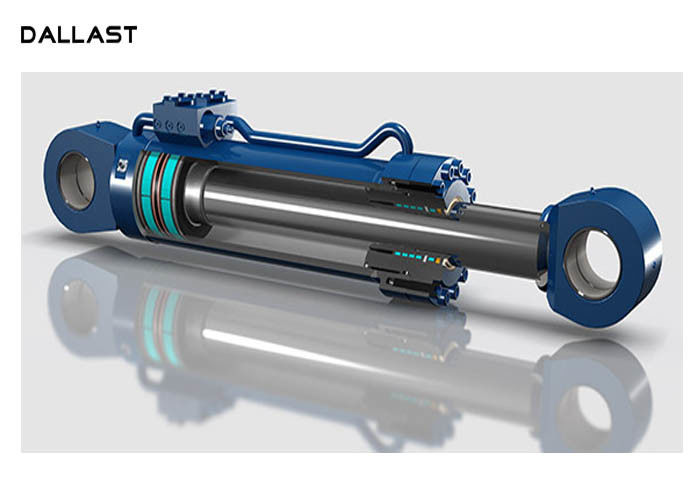

Long Stroke Double Acting Hydraulic Cylinder , Heavy Duty Hydraulic Rams OEM

Long Stroke Double Acting Hydraulic Cylinder , Heavy Duty Hydraulic Rams OEM

    • Long Stroke Double Acting Hydraulic Cylinder , Heavy Duty Hydraulic Rams OEM
    • Long Stroke Double Acting Hydraulic Cylinder , Heavy Duty Hydraulic Rams OEM
    • Long Stroke Double Acting Hydraulic Cylinder , Heavy Duty Hydraulic Rams OEM
  • Long Stroke Double Acting Hydraulic Cylinder , Heavy Duty Hydraulic Rams OEM

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Test: 100% Inspection Body Material: Stainless Steel
    Standard: Nonstandard Place Of Origin: Shandong
    Structure: Piston Cylinder Stroke: 2400 Mm
    Roundness: Rz0.2~0.4 / Ra0.1Max Chrome Plating Thickness: 10-25 μm

    OEM Double Acting Long Stroke Heavy Duty Hydraulic Cylinder Ram

    Specifications:

    All Seals Manufactured to US specification
    Ports NPTF(SAE port or other can be available)
    Test 100% hydro-pressure test
    Rod surface treatment Superior quality chrome plated
    Apply Apply LOCTITE to rod end thread
    Cylinder Capacity 40,000units / year Cylinder Capacity
    Shipping SAE, NPT, NPTF, BSP, Ports available
    Custom-Made cylinders and components  available
    Cylinder Range

    Bore: 18mm - 800mm (0.75" ~24")

    Stroke: 100mm - 8000mm. (4" ~315")

    Main markets America, Europe, Australia, Japan, China



    WE FOCUS ON QUALITY!
    DALLAST focus on manufacturing all kinds of cylinders used for Machinery, Equipment, Metallurgy, Water Conservancy, Mining, Offshore, Truck, etc. We also can design or do OEM in accordance with client's special requirements. We have our own professional design team, advanced production equipment, and strict quality control system to improve the reliability, safety and economy of products. In order to create real benefit for clients, DALLAST will offer a full set of services, such as consulting solutions, products installation, technical support, etc.



    1. Piston type hydraulic cylinder
    2. Plunger type hydraulic cylinder
    3. Telescopic type hydraulic cylinder
    4. Welded hydraulic cylinder
    5. Flange mounted hydraulic cylinder
    6. Tie rod hydraulic cylinder
    7. Double acting hydraulic cylinder
    8. Single acting hydraulic cylinder
    9. Multistage hydraulic cylinder
    10. Servo hydraulic cylinder



    Output table of hydraulic cylinder
    Bore(mm) Rod(mm) Working pressure
    2Mpa 5Mpa 7Mpa 10Mpa 12Mpa 14Mpa
    Pull(KG) Push(KG) Pull(KG) Push(KG) Pull(KG) Push(KG) Pull(KG) Push(KG) Pull(KG) Push(KG) Pull(KG) Push(KG)
    40 20 188 252 470 630 658 882 940 1260 1128 1512 1316 1764
    50 25 294 392 435 980 1029 1372 1470 1960 1764 2352 2058 2744
    63 30 482 624 1205 1560 1687 2184 2410 3120 2890 3744 3374 4368
    80 40 754 1006 1885 2515 2633 3521 3770 5030 4524 4636 5278 7042
    100 50 1178 1570 2946 3927 4124 5498 5891 7854 7069 9425 8247 11000
    125 60 1889 2454 4722 6136 6611 8590 9444 12272 11333 14736 13222 17180
    150 70 2754 3534 6911 8835 9675 12369 13822 17670 16586 21204 19351 24738
    180 80 4084 5089 10210 12724 14295 17813 20421 25447 24505 30536 28589 35626
    200 100 4712 6283 11781 15708 16493 21991 23562 31416 28274 37699 32987 43982
    250 140 6739 9018 16847 22544 23586 31562 33694 49088 40433 58906 47172 68723
    300 180 9048 14137 22620 35343 31667 49480 45239 70686 54187 84823 63335 98960



    FAQ:

    1. What is your sample policy?
    A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

    2.  Do you test all your goods before delivery?
    A: Yes, we have 100% test before delivery

    3.  How do you make our business long-term and good relationship?
    A:1. We keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
