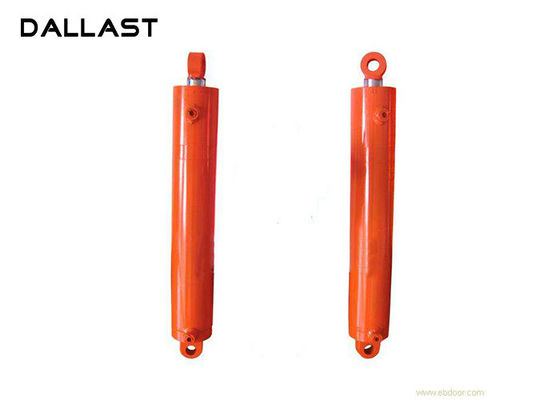

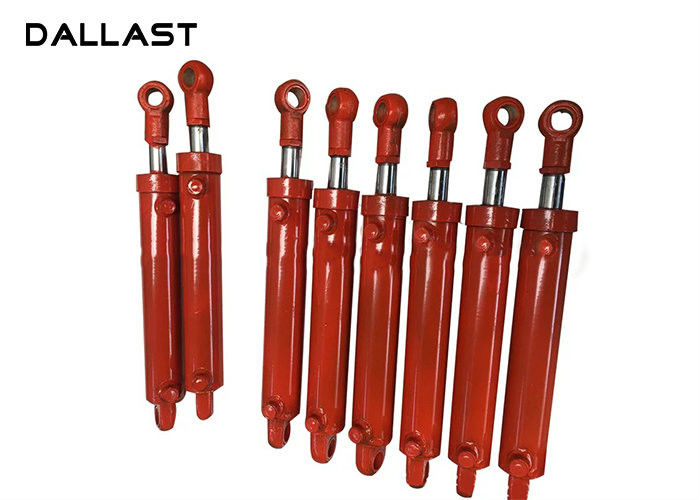

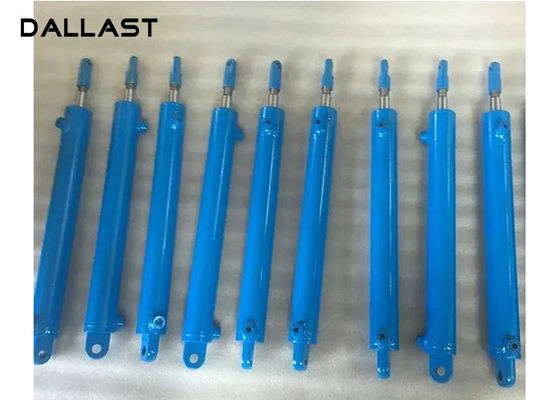

Horizontal Span Double Acting Hydraulic Ram Dual Action Welded Chrome

Horizontal Span Double Acting Hydraulic Ram Dual Action Welded Chrome

    • Horizontal Span Double Acting Hydraulic Ram Dual Action Welded Chrome
    • Horizontal Span Double Acting Hydraulic Ram Dual Action Welded Chrome
    • Horizontal Span Double Acting Hydraulic Ram Dual Action Welded Chrome
  • Horizontal Span Double Acting Hydraulic Ram Dual Action Welded Chrome

    Product Details:

    Place of Origin: Shandong
    Brand Name: DALLAST
    Certification: GS CE ISO9001-2009 TS16949
    Model Number: Standard , Non-standard

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiable
    Packaging Details: shrink film, pallet, plywood case and carton box
    Delivery Time: 20- 25 days after down payment
    Payment Terms: T/T, L/C, Western Union,paypal
    Supply Ability: 50000PCS per year
    Contact Now
    Detailed Product Description
    Product Name: Hydraulic Rams Oil Cylinder Acting Way: 2 Way
    Honed Tube: 20-2000mm, Heat Treatment, Honing, Rolling Piston Rod: 10-1500mm, Tempering, Plated Nickel, Chrome Or Cer
    Cylinder Case/Tube Material: Carbon Steel, Alloy Steel, Stainless Steel Hydraulic Cylinder Seals: Kaden, Hallite, Parker, Nok, SKF Etc
    Hydraulic Pressure: 16-32Mpa Delivery Time: 20-30 Days After Down Payment

    Dual Action Welded Chrome Horizontal Span Double Acting Hydraulic Cylinder


         OEM service is available.We are pleased to process according to the customer's drawings.Please kindly send us your drawings, models or providing us your parameters and specification of the hydraulic cylinder like bore diameter,Rod diameter,Stroke,Working pressure,Front and back end mount type,Using frequency,Work Environment etc.We can determine the most suitable model for you.We will provide competitive price.

         Hydraulic cylinder is special products, According to user requirements,special Non-standard large diameter, long stroke hydraulic cylinder can custom design.


    Application:

    Wingspan van,Heavy duty mine, metallurgy, forging, casting, Garbage truck,engineering transportation, Sanitation vehicles,Crane,hydraulic machinery, food processing machinery, machine tools, civil engineering, construction machinery, chemical machinery, medical machinery, injection molding machinery, automated assembly line, Light industry machinery.

    Model

    Stroke

    (mm)

    Bore Dia

    (mm)

    Rod Dia

    (mm)

    Push(KN) Pull(KN)
    HSGK01-160/90E-131 715 160 90 321.7 219.9
    HSGL01-100/60E-131 1200 100 60 125.66 87.65
    HSGK01-80/50E-131 700 80 50 101.79 70.37
    HSGL01-80/50E-131 500 80 50 80.43 54.98
    HSGL01-80/50E-131 440 80 50 80.43 43.41
    HSGL01-63/35E-131 300 63 35 50 34.5
    HSGL01-50/28E-131 140 50 28 31.42 21.56
    Features:
    1. Easy to operate, easy to maintain
    2. Reliable work, high efficiency
    3. Solid structure, handsome in appearance


    We have professional R&D team with rich design experience.
    We also establish strict but scientific product testing system so that products have perfect.
    We are the leader manufacturer of hydraulic industry in China with experience and technology accumulation.
    With strong technical team we could solve any annoyance of you.
    Hydraulic Cylinders Certification ISO9001:2009, SGS, TS16949, RoHS, CNAS Certification.
    It depends on the ordering quantity. Generally, we will take 20-25 days. If there are any changes, we will inform you in time.
    We have 12 months warranty. In this year, if the quality problem we will free repair for you.



    1. Big lifting force:
    Adopt high strength imported(Italy Marcegaglia ) materials, work under pressure up to 22 MPa, the unit weight of the lifting force is 10% ~ 20% higher than the similar products.

    2. High security:
    excellent structural design ensure the oil cylinder lift smoothly, improve safety operation and create the most valuable security guarantee for the user;

    3.Unloading faster,
    Smaller cylinder diameter with the smaller working volume, the speed of oil cylinder lifting and falling are more fast and more efficiency, running more can bring more benefits.

    4.Stronger weather resistance:
    The application new materials and special structures can adapt to different environment from cold to hot and can round-clock operation.

    5. Best performance:
    excellent performance product and longer lifetime brings visible benefit and no worries.



    Horizontal Span Double Acting Hydraulic Ram Dual Action Welded Chrome
