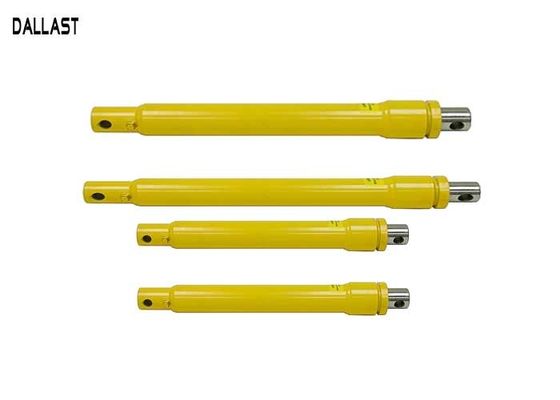

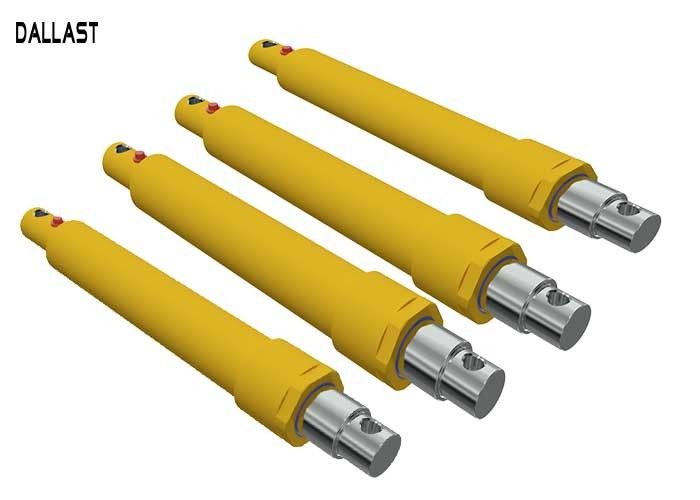

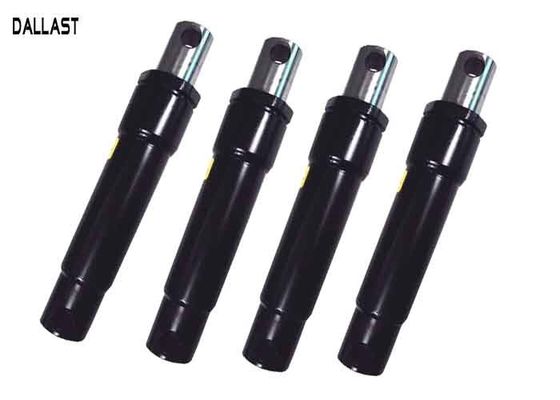

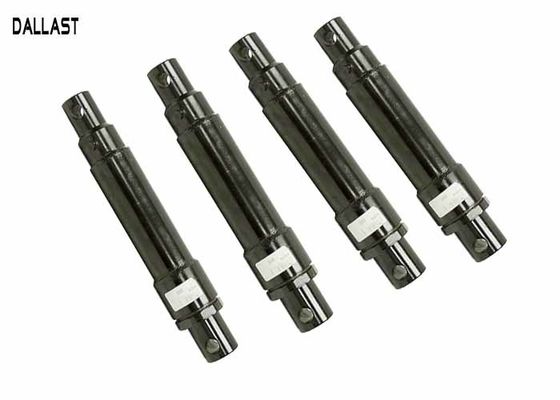

7 Inch Bore Plunger Welded Hydraulic Cylinders Single Acting for Snow Plow

Plunger Hydraulic Cylidners Welded Single Acting 7 Inch Bore Snow Plow

Single-acting cylinders transfer force and motion in one direction only. Acts on the piston to push the piston rod out. DALLAST manufactures Hydraulic Cylinders for snow plows and snow equipment. In our standard line we offer 1 3/4" to 2 1/4" ram type cylinders. DALLST has various designs including a v-packing design with urethane wiper, chrome rod seal design and a heavy duty welded design to accommodate side loading in high shock applications. Custom and double acting cylinders are available on request.

Features:

Hollow hydraulic cylinder Size:

Bore Size: 0.5" ~ 10"; Stroke: 2" ~ 100"; Rod size: 1"~10"; Working Pressure: 2500PSI (21MPa) ~ 4000PSI (28MPa); Working Temperature: -20oC ~ 100

Options:

Mechanical emergency release. Top-coat according to customer. More piston diameters, strokes and fasteners according to customer specifications. Piston rod corrosion resistance according to requirements.

Welded cylinders:

These high quality welded hydraulic cylinders are manufactured in accordance with the needs and standards of the U.S. market. Rigid welded construction, high tensile welded steel end mounts, threaded gland and quality seals allow Magister Hydraulics’ cylinders to work in harsh conditions. All cylinders are fully and easily maintainable. Each unit is pressure tested before shipping. Cylinders are manufactured in accordance with ISO9001.

Advantages:
1. Snap on glass filled bearings that absorb contaminants without damaging cylinder walls.

2. Nylon tipped set screws that conform to packing nut threads to decrease the probability of packing
nuts backing off.

5. Cylinder designs include welded and screwed type, welded and bolted, fully bolted or tie rod or can take the form of your drawing entirely.

6. All our piston rods are hard protection coated, such as hard chrome plate, or if required, can be coated with an alternative treatment more suitable to the application.

Warranty:
We offer 12 months warranty.

After-sales service:
1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
2. Pre-sale service and free consultation service.
3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
6. Service Center all over the world for after sales problems.
