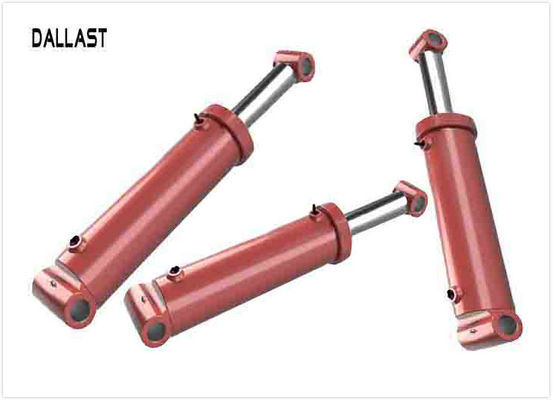

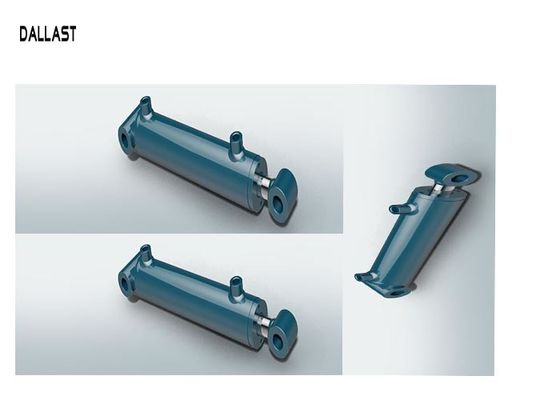

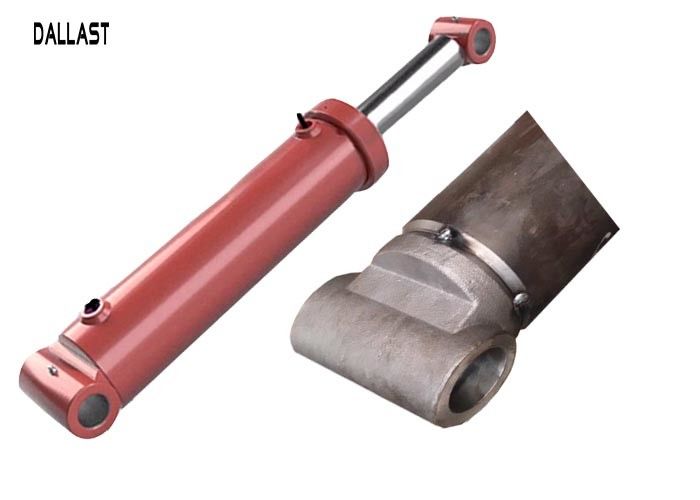

Double Acting Hydraulic Cylinders Piston Welded Stainless Steel Rod

Double Acting Hydraulic Cylinders Piston Welded Stainless Steel Rod

    • Double Acting Hydraulic Cylinders Piston Welded Stainless Steel Rod
    • Double Acting Hydraulic Cylinders Piston Welded Stainless Steel Rod
    • Double Acting Hydraulic Cylinders Piston Welded Stainless Steel Rod
  • Double Acting Hydraulic Cylinders Piston Welded Stainless Steel Rod

    Product Details:

    Place of Origin: China
    Brand Name: DALLAST or on request
    Certification: GS, RoHS, CE, ISO9001
    Model Number: customied

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 20-30 work days or on request
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Action Type: Double Acting Stroke: 500-1500mm
    Pressure: 10-35MPa Temperature: Normal Temperature
    Cylinder Tube: Stainless Steel, Etc. Size: Custom

    Double Acting Standard Hydraulic Cylinders Piston Welded Stainless Steel Rod

    These high quality welded hydraulic cylinders are manufactured in accordance with the needs and standards of the U.S. market. The product created for use in various types of machinery such as construction, transportation, agriculture, and waste. Rigid welded construction, high tensile welded steel end mounts, threaded gland and quality seals allow Magister Hydraulics’ cylinders to work in harsh conditions.



    Application:

    Agriculture. Road maintenance. Public works. Material Handling



    Specifications:
    - Weight: 27 lb
    - Bore: 2"
    - Stroke: 30"
    - Rod diameter: 1.125"
    - Pin to Pin: 38"
    - Port to Port: 31.5"
    - Rod length extended: 31 3/16"
    - Rod length retracted: 1 3/16"
    - Overall length extended: 69.5"
    - Overall length retracted: 39.5"
    - Pin inside diameter: 1"

    - Port size: 1/2"
    - Working pressure: 3,000 PSI



    Features:

    1. Many mounting styles

    2. Several bore sizes and in varying strokes.

    3. Cylinders are designed for naomal or high operating pressures.

    4. Many of these sizes are available for immediate delivery.

    5. Speed range: Speed range of operation (excluding cushion parts) is less than 200mm/s. In accordance with customer requirements, the maker can also supply other ranges of speed.

    6. The operating temperature (oil and ambient) is -30 to +80 degrees Celsius, but the unit should not be used when oil is frozen.

    7. Warranty: We offer 12 months warranty.



    Installation method:

    The most commonly used mounting options are flange, trunnion, clevis, pin-eye, cross-tube, spherical, and tang. Cylinder mounting is chosen based upon the application’s requirements.



    Piston Seals:

    Low friction, high load piston seals with outboard wear bands are standard. Loaded lip seals and cast iron rings are optional.



    About piston rod:

    High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.



    Quality control:
    1. Seiko secret agents, to ensure quality of the piston rod.
    2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
    3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.



    Tips:

    We offer OEM, ODM. If you needed, please feel free to contact us and send us the drawings:

    A. The drawing details are as follows.
    Bore size

    Stroke length



    Rod diameter

    Mounting type



    Mounting length

    Paint color requirement



    B. The product application description details

    1. Type of machine(loader, steer loader, excavator, and etc.)

    2. Type of function(hoist, swing, steering, and etc.)

    3. Type of structure(piston, telescopic)

    4. Single or double acting
    5. Operating pressure
