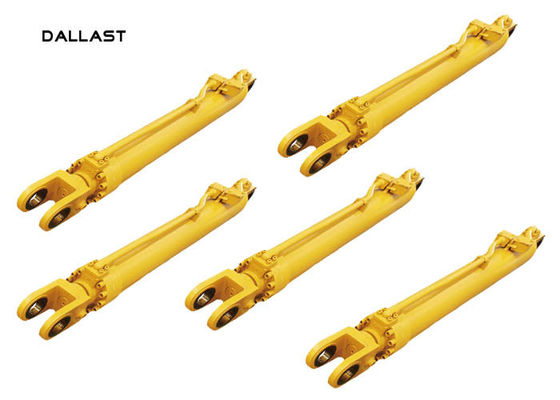

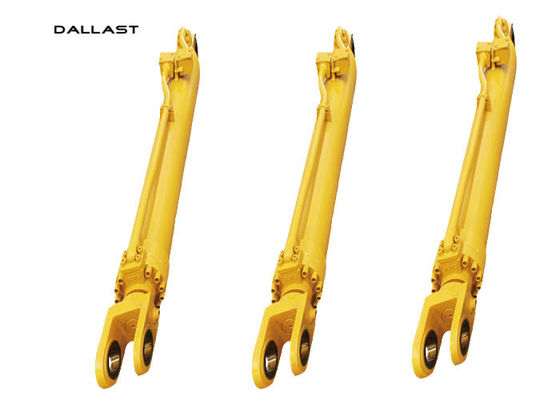

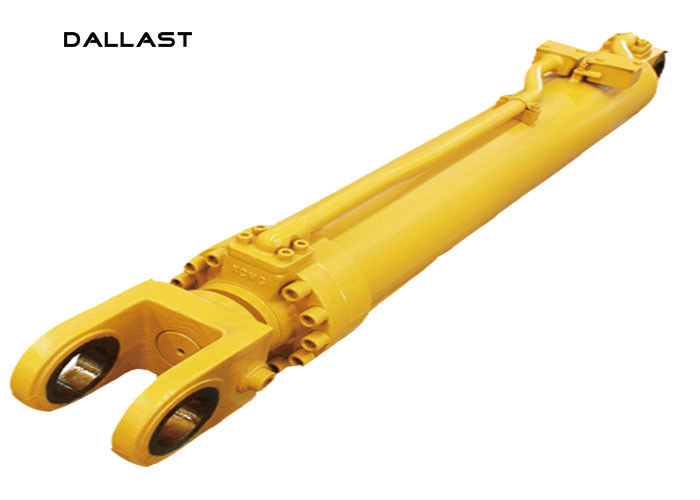

Two Way Piston Type Hydraulic Cylinder Industrial Heavy Duty 1 Ton

Two Way Piston Type Hydraulic Cylinder Industrial Heavy Duty 1 Ton

    • Two Way Piston Type Hydraulic Cylinder Industrial Heavy Duty 1 Ton
    • Two Way Piston Type Hydraulic Cylinder Industrial Heavy Duty 1 Ton
    • Two Way Piston Type Hydraulic Cylinder Industrial Heavy Duty 1 Ton
  • Two Way Piston Type Hydraulic Cylinder Industrial Heavy Duty 1 Ton

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Shaft Diameter: Optional Factory Visit: Available
    Color: Optional Heat Treatment: Quenching
    Work Temperature: Normal Temperature Mounting Style: Front Flange/earring/PIN/clevis/e



    Industrial Heavy Duty 1 Ton Two Way Piston Type Big Hydraulic Cylinder



    Customer build is the first principle for our Hydraulic.



    We can design piston hydraulic cylinder for what you want if you can provide us the following technical parameters:



    1. Bore Diameter;

    2. Piston Diameter;

    3. Stroke;

    4. Working pressure;

    5. Installation Distance (the length of the cylinder in closed position);



    Hydraulic cylinders are key to the movements of load handling equipment.
    After a repeated number of cycles a certain amount of wear is to be expected, so we offer seal kits for maintenance of cylinders, giving your machine continued top performance and an extended life cycle.



    Whether you need a replacement hydraulic cylinder to bring your machine back to life, or you simply need to replace a cylinder component we provide high quality and quick solutions. In case of accident replacement of complete cylinder is recommended over to guarantee cylinder performance which is comparable to a new cylinder. The replacement hydraulic cylinders are pressure tested to deliver constantly the highest quality spare parts.



    Coating All tubes are chrome plated
    Working pressure 10MPa-25MPa
    Bore size 40mm-255mm
    Stroke 40mm-1800mm
    Mounting Type Earring-trunnion, double trunnion, double earring (eye end)
    Plunger 27Simn or 20#, 45# steel with high frequency quenching
    Certification ISO9001: 2008, SGS, TS16949
    Warranty One year after shipping arrival



























    Processing and inspection:

    Sealing system
    All the hydraulic cylinders produced by our company adopt the seal ring products of Hallite,NOK,SKF,Parker,Merker,Trelleborg,China made,Taiwan made



    Piston rod
    The piston rod is made of high strength carbon steel with precision grinding treatment. With the design concept of improving the rod strength and the high performance heat treatment, hard chrome plating and CNC tumbling, the even veins and high degree of finish of the surface is guaranteed, and it has good oil membrane at the surface, which improves the service life of the seal parts.



    Guide sleeve

    The sleeve is made of high strength spheroidal graphite cast iron and high strength steel under buffering inner bore copper welding treatment.



    Piston and piston seals
    The standard piston is of one-piece steel structure. The firm lock-up between the long screw thread and the steel ball is convenient for the installation and it also guarantees the reliable operation under high speed load. New design of screwing parts greatly improved the cross section where the piston rod bears the axial load and improves the strength of piston rod to the maximum.



    FAQ:

    Q: Do you accept OEM manufacturing?

    A: Yes! We do accept OEM manufacturing. We will quote you the exact price and make the exact cylinder according to your specification and drawing.



    Q: Can we design our own package or print our own logo?

    A: Yes! Package and logo will be made acording to your requirements.



    Q: Could we get small quantity samples?

    A: Yes! We understand the quality test is important and we are glad to make the sample for you. The MOQ is 1pcs.



    Q: How long is the production time?

    A: Generally, the production time is 30 days.
