Chief Hydraulic Chrome Double Acting Hydraulic Ram with Piston Type Welded Farm Truck

Chief Hydraulic Chrome Double Acting Hydraulic Ram with Piston Type Welded Farm Truck

    • Chief Hydraulic Chrome  Double Acting Hydraulic Ram with Piston Type Welded Farm Truck
    • Chief Hydraulic Chrome  Double Acting Hydraulic Ram with Piston Type Welded Farm Truck
    • Chief Hydraulic Chrome  Double Acting Hydraulic Ram with Piston Type Welded Farm Truck
  • Chief Hydraulic Chrome  Double Acting Hydraulic Ram with Piston Type Welded Farm Truck

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet or as your requirements
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, L/C, D/P
    Supply Ability: 1 Piece Per Year
    Contact Now
    Detailed Product Description
    Work Temperature: Normal Temperature Piston Rod Chrome Plated: Cr, Ni, Or Ceramic
    Available Temperature: -40℃ To 80℃ Power: Hydraulic
    Hardness: HRC 45-55 Usage: Automation And Control

    Chief Hydraulic Chrome Cylinder with Piston Type Double Acting Welded Farm Truck ​





    Cylinder details:
    1. Mounting type: turning, flange, earring, according to your demand.
    2. Seal: use parker, NOK and other famous seal parts to ensure the quality.
    3. Piston rod: 20#, 45# steel with high frequency quenching.
    4. Buffer function: you can choose to design with adjustable buffer to avoid impact of cylinder.
    5. Size:
    Bore: 40-1000mm (7/8-20"), stroke can reach to 10000mm.
    6. Usually, it is easy and accurate to make samples according to your drawings, you can also send us samples for reference and for reproductions for your final approval.



    Custom hydraulic cylinder (OEM):

    Not only we could manufacture all kinds of heavy duty hydraulic cylinder construction and mining
    trucks according to the drawing from customers,but also we could make a design according to
    customers’requirements . If you require our engineer to make a design , please advise us the
    following specification :
    1. Rated pressure
    2. Working pressure
    3. Test pressure
    4. Working condition and environment ,for example ,temperature ,working frequency
    5. Pulling force ,and return stroke force
    6. Pulling and return speed
    7. Assembly size
    8. Seal ring requirements .For example , brand ,seal material etc .
    9. Tube and piston rod raw material requirements
    10. Piston rod surface treatment requirements, for example chromating film thickness ,
    Surface hardness etc .
    11. Painting and other spare parts requirements .



    Three advantages for hydraulic cylinder:

    1. Longer serve life.

    By optimizing the structure design and reduce bore, increase limit buffer design, reduce the system pressure

    fluctuations and pressure shock, extend the service life of the parts of the lifting hydraulic system!

    2. More strong stability.

    Stability optimization design, improve the long box lifting high stability, reduce rollover risk!

    3. Lift More.

    Compared with other products with lift lifting 15%~20%. Lift larger, more loading more returns! Lighter weight, lift larger, more light!



    Parameter:

    We manufacture all kinds of hydraulic cylinders.We also make customer hydraulic cylinders according to your requirements.

    To get an immediate quotation,please provide us with the following necessary parameters:

    1) Bore diameter

    2) Piston rod diameter

    3) Stroke length

    4) Working pressure

    5) Mounting method

    Double Acting Farm Truck Hydraulic Cylinder
    Application: Agricultural Truck, Dump Truck, Tipper, Construction Vehicle, etc.
    Stroke: 50mm to 10000mm
    Bore: 40mm to 1000mm
    Shaft: 12mm to 500mm ( ½’’ -20’’)
    Work pressure: 16Mpa to 62Mpa (2250 PSI – 10150 PSI)
    Seal: Hallite, Parker, Merkel, DingZing, etc.
    Paint: Red, Grey, Yellow, Black, etc.
    Certificate: Gs, RoHS, Ce, ISO9001
    Package: Bubble-wrap packing, then in wooden case
    Warranty One Year
    Welding  Mannual & Machine welding

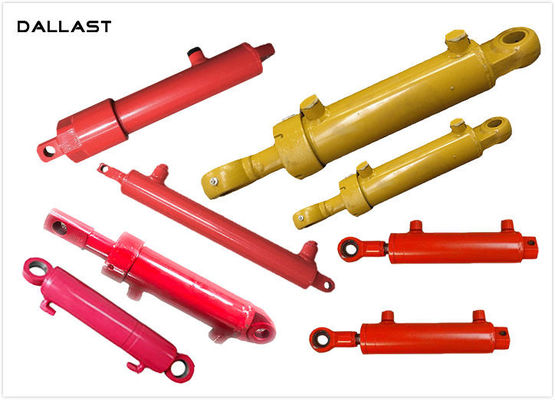

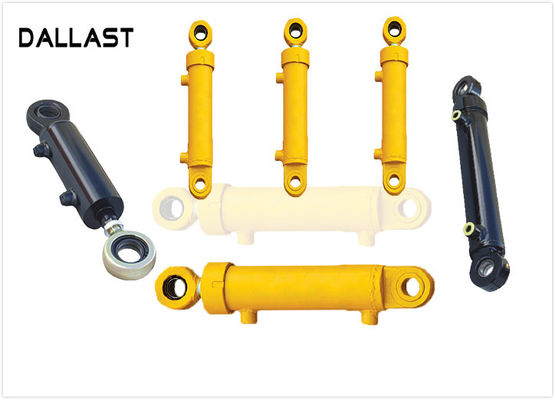

    Product Show:
    Chief Hydraulic Chrome  Double Acting Hydraulic Ram with Piston Type Welded Farm Truck
