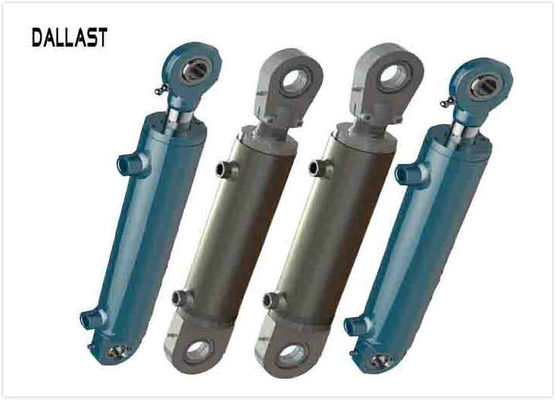

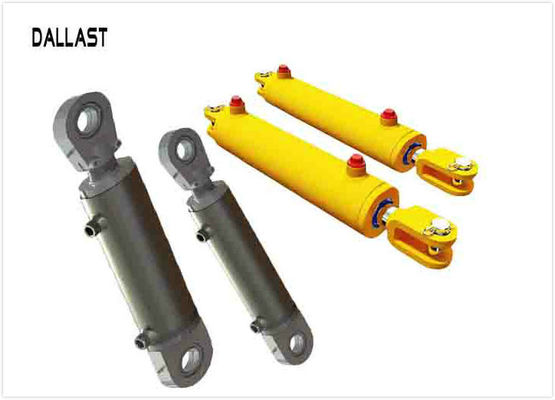

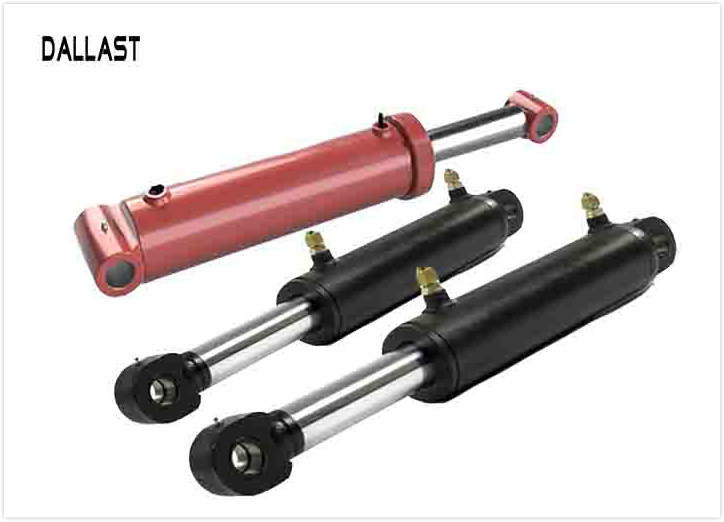

Custom Hydraulic RAM Double Acting Cylinder Piston Type for Agricultural Trailer

Custom Hydraulic RAM Double Acting Cylinder Piston Type for Agricultural Trailer

    • Custom Hydraulic RAM Double Acting Cylinder Piston Type for Agricultural Trailer
    • Custom Hydraulic RAM Double Acting Cylinder Piston Type for Agricultural Trailer
    • Custom Hydraulic RAM Double Acting Cylinder Piston Type for Agricultural Trailer
  • Custom Hydraulic RAM Double Acting Cylinder Piston Type for Agricultural Trailer

    Product Details:

    Place of Origin: China
    Brand Name: DALLAST or on request
    Certification: GS, RoHS, CE, ISO9001
    Model Number: customied

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 20-30 work days or on request
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Pressure: 1000-3000 PSI Temperature: Normal Temperature
    Cylinder: Hydraulic Oil Cylinder Stroke: 500-1600 Mm
    Rod Wiper: Urethane Snap In Mounting Style: Pins And Clips Included
    High Light:

    double piston hydraulic cylinder

    ,

    marine hydraulic cylinders

    Custom Hydraulic RAM Double Acting Cylinder Piston Type for Agricultural Trailer



    A hydraulic cylinder consists of a piston sliding within a hollow tube, moved by the pressure of a liquid. The piston, or rod is usually machined.



    Double-acting models have tapped holes at both ends for the introduction and evacuation of the hydraulic fluid. This allows the piston to apply force in both directions.



    Benefits:

    Piston: High grade ductile iron

    Piston rod: Stainless steel, alloy steel, carbon steel etc.

    Piston seal: Urethane seal

    End cap: Casting seal

    Paint color: Semi-gloss black, gray, red etc.

    Operating pressure: Depend on your need, ranging from 1000-3000 PSI

    Operating temperature: 30 to +80 degrees Celsius, but the unit should not be used when oil is frozen

    Speed range: Speed range of operation (excluding cushion parts) is less than 200mm/s



     type

    capacity

    (ton)

    diameter of rod

    (mm)

    total stroke

    (mm)

    closed length

    (mm)

    cylinder bore (mm)
    HSG80/50*190-800 12 80 190 800 80
    HSG80/50*210-510 13 80 210 510 75
    HSG70/30*760-1055 14 70 760 1055 75
    HSG40/22*270-495 24 40 270 495 100
    HSG50/25*150-800 32 50 150 800 90
    HSG63/35*500-780 23 63 500 780 110
    Tips:



    1. Many mounting styles

    2. Several bore sizes and in varying strokes

    3. Many of these sizes are available





    We offer OEM, ODM. If you needed, please feel free to contact us and send us the drawings:

    A

    1. Bore size

    2. Stroke length

    3. Rod diameter

    4. Mounting type

    5. Mounting length

    6. Paint color requirement



    B. The product application description details

    1. Type of machine(loader, steer loader, excavator, and etc.)

    2. Type of function(hoist, swing, steering, and etc.)

    3. Type of structure(piston, telescopic)

    4. Single or double acting

    5. Operating pressure



    Packing:

    1. Goods are packed with export standing standard.

    2. It includes pallets, suitable carton size, steel box, iron case,paper box,plywood box or according to the requirements of customers.



    Warranty:

    We offer 12 months warranty.



    Installation method:

    The most commonly used mounting options are flange, trunnion, clevis, pin-eye, cross-tube, spherical, and tang. Cylinder mounting is chosen based upon the application’s requirements.



    About piston rod:

    High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.



    Quality control:
    1. Seiko secret agents, to ensure quality of the piston rod.
    2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
    3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.



    Delivery:

    1.We export from Qingdao port by sea.

    2. Goods will be delivered on time.

    3. Goods can arrive at the destination safely.



    Custom Hydraulic RAM Double Acting Cylinder Piston Type for Agricultural Trailer



    Custom Hydraulic RAM Double Acting Cylinder Piston Type for Agricultural Trailer
