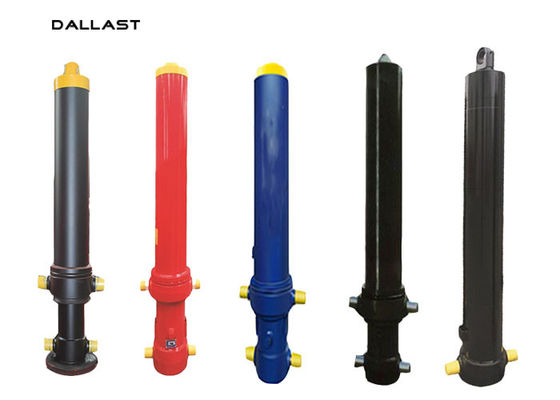

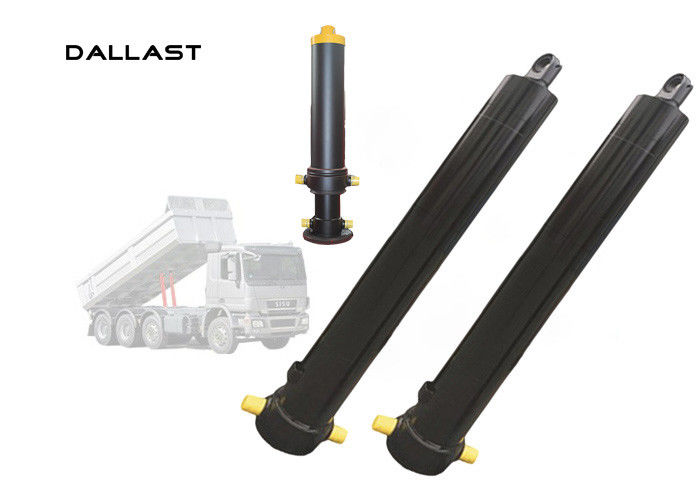

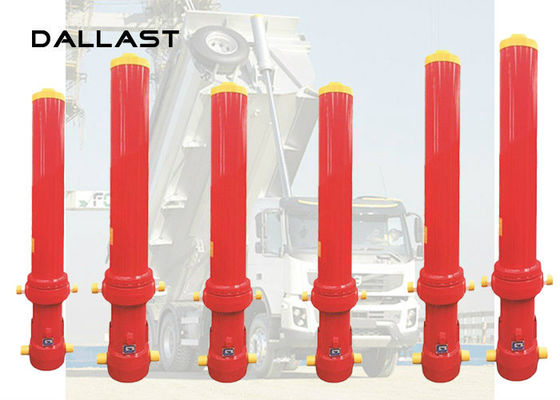

10 Inch Stroke Standard Dump Truck Single Acting Welded Hydraulic Cylinder
Application: dump truck/tipprt/trailer/garbage truck
Designed For: Single acting hydraulic cylinder
Stage: 3~5 stage cylinder
Max inner tube diameter: 170mm,180mm,195mm,200mm,210mm,etc.
Mounting distance: 325mm/345mm/425mm
Working Pressure: 16Mpa
Stroke: 750mm~7200mm
Tipping Weight: 35~68Ton
Seal Type: Parker,NOK, BUSAK SHAMBAN or as customer's requirement
Piston Rod: Chrome or nickel plated,ground & polished piston rod
Tube: High tensile cold drawn tube, precision honed for extended seal life
What is the information we require for customer before we make the quotation?
|
Process Flow |
1. Bore & Rod Dia. ( inch or mm) 2. The closed & opened length (Stroke) 3. Mounted Type: like bearing or clevis 4. Working & Testing Pressure 5. The oil port size, thread size 6. Assembling way & distance 7. Drawing or blueprint is enough for quotation |
1. Customer RFQ 2. Information Confirm (Drawing or samples specific reuqiremnets) 3. Quotation (Reply in 24 hours) 4. Order Confirm (PI, PO) 5. Sample producing (upon receipt of 30% deposit) 6. If sample approved, go to main production 7. Delibery ( balance T/T, Customs clerance documents, 70% against B/L |
The utility model relates to a multistage double acting hydraulic cylinder, which comprises a cylinder, piston, piston rod and cylinder, including the final stage of several levels within the cylinder, the piston rod is arranged in a final cylinder, cylinder bottom is provided with an oil inlet hole and the other end is provided with an oil hole; the external cylinder at one end in each stage close to the oil inlet hole of the fixed piston within the cylinder, each level is provided with a guide hole, the oil guide hole is a through hole conduction within the cylinder inside and outside, and the two outlet at the same side of the piston, the piston, located in the outer wall of the inner wall of the adjacent outlet located in the outlet located far away from the end of the piston. The oil guide hole inner cavity and the outer cavity of each level within the cylinder, two oil outlet are fixed on a cylinder, oil pipe and the oil inlet is connected with tubing made of rigid tubing, with the reciprocating motion of the piston rod and the ultimate elongation, shortening and bending, avoid late stage piston rod and tubing the reciprocating motion of the collision interference and wear.
Quality Control:
1. All specification is designed by professional engineer
2. All material is high quality-Seal kits are purchased from Italy,England,America etc
3. All material is processed by skilled workers and advanced CNC lathe
4. All cylinders are 100% tested before package to ensure every cylinder is qualified for its purpose
5. Package is air cushion film for each cylinder and wooden pallets for all cylinders to ensure goods can arrive at customer safely
6. One year warranty and life long time follow up service is offered to solve any problems you met when use our products
