| Place of Origin: | China |
| Brand Name: | DALLAST or on request |
| Certification: | GS, RoHS, CE, ISO9001 |
| Model Number: | customied |
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case, carton box |
| Delivery Time: | 20-30 work days or on request |
| Payment Terms: | T/T, Western Union, D/P, D/A, L/C |
| Supply Ability: | 50000 pieces |
| Action Type: | Double Acting | Pressure: | 10-35MPa |
|---|---|---|---|
| Temperature: | Normal Temperature | Piston Rod: | Stainless Steel, 27SIMN, 20# Or Customized |
| OD: | Customized | Painted: | Custom |
| High Light: | double piston hydraulic cylinder,marine hydraulic cylinders |
||

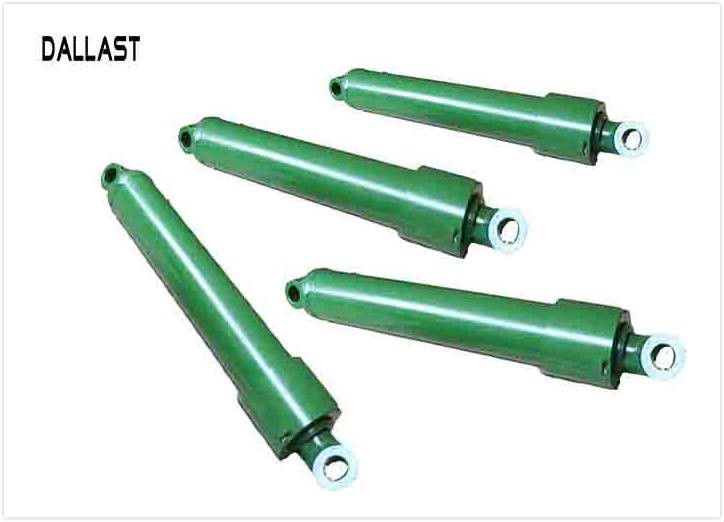

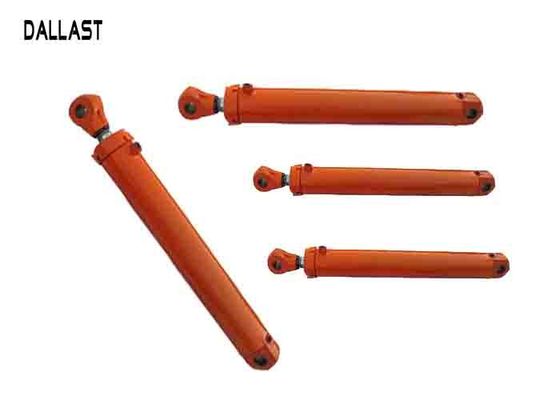

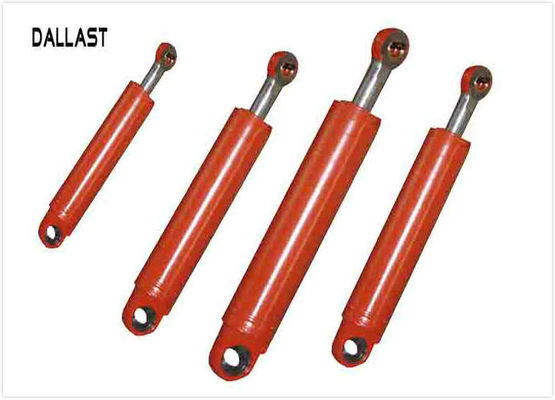

Custom Piston Type Hydraulic Cylinder Double Ended Chrome for Agricultural Machine
Features:
1. Many mounting styles
2. Several bore sizes and in varying strokes
3. Operating pressure: depend on the machine
4. Many of these sizes are available
5. The operating temperature (oil and ambient) is -30 to +80 degrees Celsius, but the unit should not be used when oil is frozen
6. Speed range: Speed range of operation (excluding cushion parts) is less than 200mm/s
Packing:
1. Goods are packed with export standing standard.
2. It includes pallets, suitable carton size, steel box, iron case,paper box,plywood box or according to the requirements of customers.
Warranty:
We offer 12 months warranty.
Installation method:
The most commonly used mounting options are flange, trunnion, clevis, pin-eye, cross-tube, spherical, and tang. Cylinder mounting is chosen based upon the application’s requirements.
About piston rod:
High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.
Company profile:
Our Company is specializing in the production of piston rods and various types of hydraulic cylinders. We have the entire production of various professional piston rod and hydraulic equipment. Unlike many hydraulic cylinder brands, Shenzhen DALLAST manufactures the hydraulic cylinders used in various applications. They require special material machining to make certain each part works precisely as designed without failure.
Quality control:
1. Seiko secret agents, to ensure quality of the piston rod.
2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.
Delivery:
1.We export from Qingdao port by sea.
2. Goods will be delivered on time.
3. Goods can arrive at the destination safely.
Tips:
We offer OEM, ODM. If you needed, please feel free to contact us and send us the drawings:
| A. The drawing details are as follows. | |
| Bore size |
Stroke length
|
| Rod diameter |
Mounting type
|
| Mounting length |
Paint color requirement
|
|
B. The product application description details |
|
| 1. Type of machine(loader, steer loader, excavator, and etc.) | |
|
2. Type of function(hoist, swing, steering, and etc.) 3. Type of structure(piston, telescopic) |
|
| 4. Single or double acting | |
| 5. Operating pressure | |
