Place of Origin: | Shandong |
Brand Name: | DALLAST |
Certification: | GS CE ISO9001-2009 TS16949 |
Model Number: | Standard , Non-standard |
Minimum Order Quantity: | 1 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | shrink film, pallet, plywood case and carton box |
Delivery Time: | 20- 25 days after down payment |
Payment Terms: | T/T, L/C, Western Union,paypal |
Supply Ability: | 50000PCS per year |
Product Name: | Hydraulic Oil Cylinder | Structure: | Piston Cylinder |
---|---|---|---|
Work Temperature: | Normal Temperature | Double-Acting Cylinder Type: | Common Cylinder |
Piston Rod Material: | Chrome 45# Carbon Steel | Working Method: | Straight Trip |
High Light: | heavy duty hydraulic rams,high pressure hydraulic cylinder |

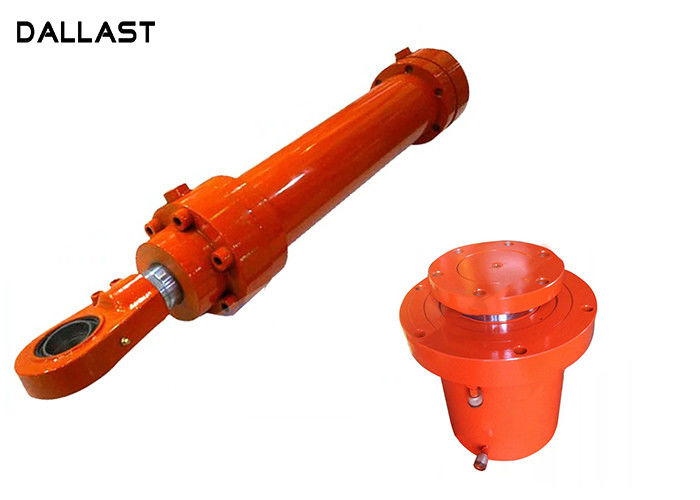

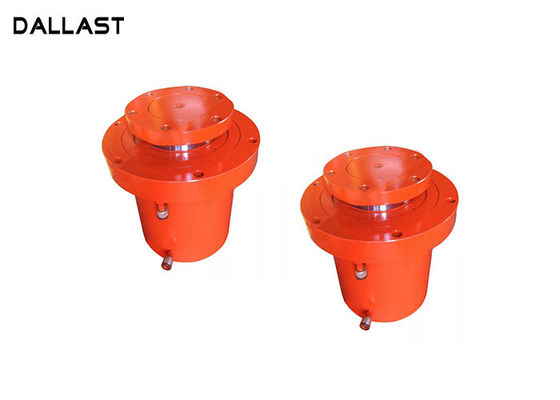

Double Acting Custom Chrome Heavy Duty Flange Hydraulic Cylinder
Application: Suitable for all kinds of heavy industry, light industrial automation machinery,. HSG engineering machinery, metallurgical, DG series vehicle,mine machinery etc
Main Products
Structure | Piston Type cylinder |
Hardness | HRC40-55 |
Seal | Merkel,Parker |
Temperature | -30ºC~300ºC |
Working pressure | 16-32mpa |
Bore Dia | can custom as you need .1 inch,2inch,3inch,4inch,5inch,6 inch,8 inch,10 inch,12 inch,14 inch,16 inch,18inch,20 inch,24 inch,30 inch,36 inch,48 inch etc. |
Maximum Stroke | 20000MM |
Mounting Type | Front Flange |
Plunger | 20#, 45# steel with high frequency quenching |
Package | shrink film, pallet, plywood case and carton |
Warranty | One year after shipping arrival |
Delivery time | 15- 25 days after down payment |
Common Type A total of 16 bore specifications, each with 2 × 8 assembly forms, composed of 256 varieties.C25, D25 series cylinder bore D = 50 ~ 400 (except D = 40) can be equipped with built-in displacement sensor. Its features: according to the conditions needed to control the hydraulic cylinder in any desired position to send accurate control signals. Give full play to the hydraulic cylinder mechanization, automation. With analog, digital and bus and other output methods, action sensitive, rapid response, to achieve a high-speed, accurate industrial automation and control.
The basic parameters in line with ISO standards and GB standards, installation and dimensions in line with international standards of steel mills.
Wide range of uses: This series of hydraulic cylinders is suitable for a variety of industrial sectors, such as metallurgy, mining, lifting, transportation, shipping, forging, casting, machine tools, coal, petroleum, chemical, scientific research, military and so on.
Special Non-standard large diameter, long stroke hydraulic cylinder can customized for you.please send us data and drawing. we can customzied for you.
