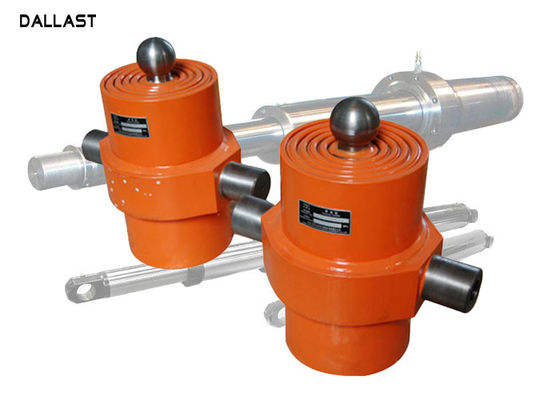

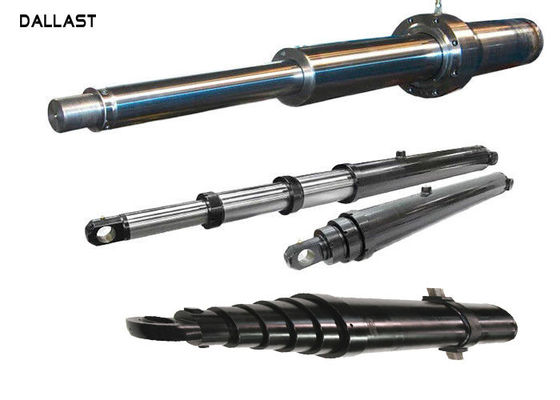

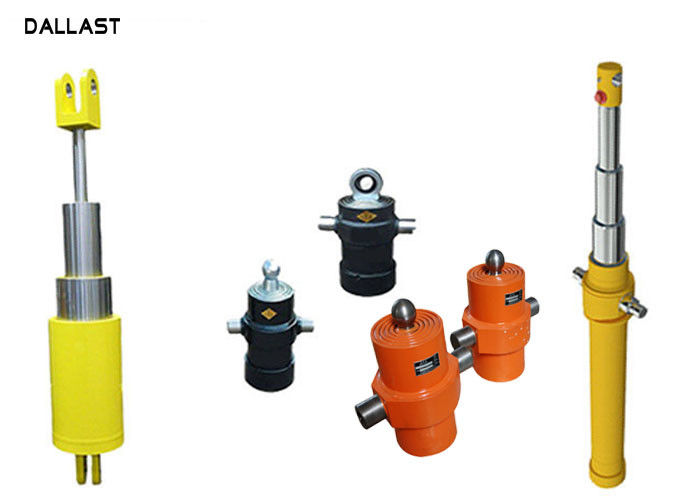

Front End Single Acting Hydraulic Ram Telescopic Dump Truck Hoist Piston Anti Rust Painting

Front End Single Acting Hydraulic Ram Telescopic Dump Truck Hoist Piston Anti Rust Painting

    • Front End Single Acting Hydraulic Ram Telescopic Dump Truck Hoist Piston Anti Rust Painting
    • Front End Single Acting Hydraulic Ram Telescopic Dump Truck Hoist Piston Anti Rust Painting
    • Front End Single Acting Hydraulic Ram Telescopic Dump Truck Hoist Piston Anti Rust Painting
  • Front End Single Acting Hydraulic Ram Telescopic Dump Truck Hoist Piston Anti Rust Painting

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Color: Any Color Structure: Telescopic Sleeve Cylinder
    Working Temperature: -30℃-80℃ Body Material: According To User Requirements
    Type: Hydraulic Single Cylinder Painting: Anti Rust Painting
    Model Number: 3TG/4TG/5TG Special Cylinder Type: Custom Hydraulic Cylinder
    High Light:

    single acting telescopic cylinder

    ,

    industrial hydraulic cylinders

    Single Acting Multistage Front End Telescopic Dump Truck Hoist Piston Hydraulic Oil Cylinder



    TG series hydraulic cylinder for vehicle

    Model Rated pressure
    (MPa)
    Bore diameter
    (mm·)
    Installation distance(mm) Stroke
    (mm)
    Thrust(KN)
    First class Last class
    4TG-E180*800 16 180 140 800 410 210
    4TG-E160*800 16 160 140 800 320 170
    3TG-E150*800 16 150 140 800 280 150
    5TG-E130*750 16 130 140 750 210 110
    3TG-E130*900 16 130 140 900 210 110
    4TG-E110*1360 16 110 140 1360 150 32
    3TG-E110*1530 16 110 140 1530 150 60
    3TG-E110*1350 16 110 140 1350 150 60
    3TG-E110*1020 16 110 140 1020 150 60
    3TG-E110*900 16 110 260 900 150 60
    2TG-E110*1020 16 110 140 1020 150 100
    3TG-E90*1155 16 90 140 1155 100 30
    3TG-E90*1020 16 90 140 1020 100 30
    3TG-E90*900 16 90 260 900 100 30
    3TG-E90*750 16 90 140 750 100 30
    2TG-E90*900 16 90 140 900 100 60
    2TG-E90*600 16 90 260 600 100 60
    2TG-E90*250 16 90 260 500 100 60
    3TG-E70*250 16 70 140 750 60 20



    We manufacture all kinds of hydraulic cylinders. We can also make customer hydraulic cylinders according to your requirements.

    To get an immediate quotation, please provide us with the following necessary parameters:

    1. Bore diameter

    2. Piston rod diameter

    3. Stroke length

    4. Working pressure

    5. Mounting method





    Hydraulic Cylinder:

    Hydraulic cylinder is both for single or double-acting applications with heavy duty welded construction. Cylinder’s standard color is black, orange or as per requirements. In addition, all seals are manufactured to US specification, and being 100% hydro-pressure tested before delivery. Rod surface treatment is for chrome plated or as per requirement. Hydraulic cylinder’s standard is B type piston (optional: A type piston).



    Single Acting Hydraulic Cylinder Inner Workings and Uses:

    A single acting hydraulic cylinder is a type of cylinder where the fluid utilizes only one side of the piston. This type of cylinder relies on springs, other cylinders, or some type of outside force to push the piston back to the other side or in the other direction. Single acting cylinders are usually found in lift truck masts.



    Dallast Technology Co., Ltd is ISO 9001 Certified for Design and Manufacturing of Hydraulic Cylinders. This certification encompassed with Lean Manufacturing allows us to ensure our products are safe, reliable and of superior quality. Learn more about how we implement Lean Manufacturing here.
    Our facility upholds strict cleanliness guidelines at all times. Through a 5S system we maintain a clean and organized environment. This allows us to guarantee your cylinders are produced promptly and efficiently.
