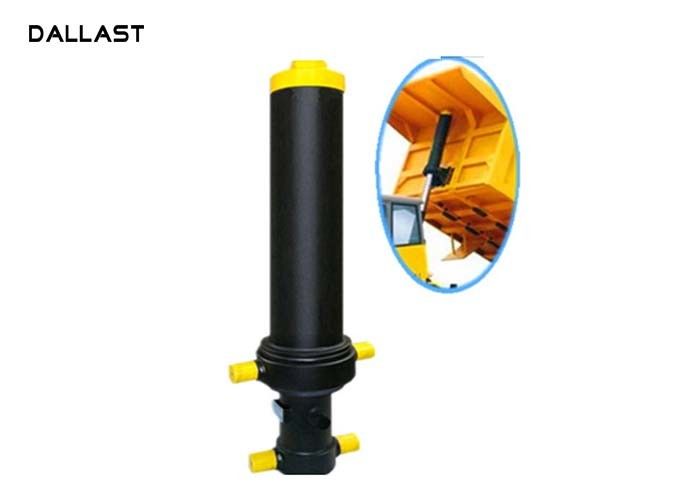

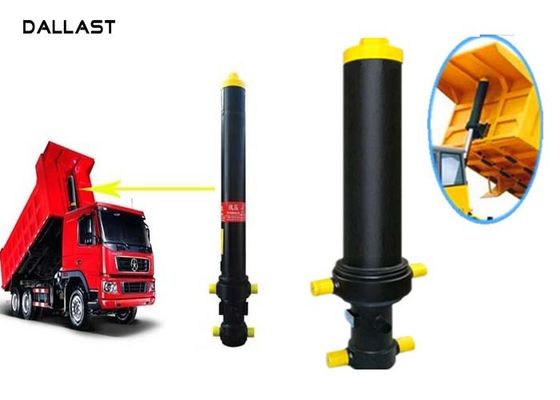

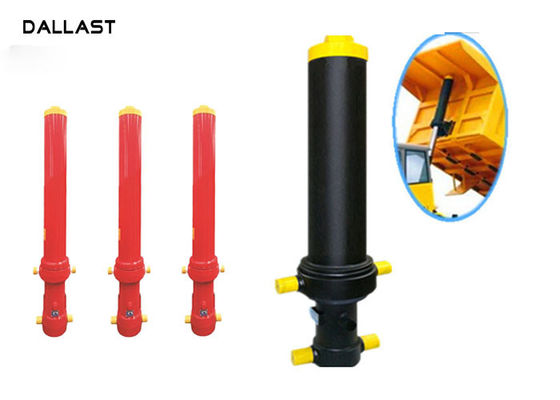

Fronted Multi Stage Hydraulic Ram , Dump Truck Lift Hydraulic Hoist Cylinder

Fronted Multi Stage Hydraulic Ram , Dump Truck Lift Hydraulic Hoist Cylinder

    • Fronted Multi Stage Hydraulic Ram , Dump Truck Lift Hydraulic Hoist Cylinder
    • Fronted Multi Stage Hydraulic Ram , Dump Truck Lift Hydraulic Hoist Cylinder
    • Fronted Multi Stage Hydraulic Ram , Dump Truck Lift Hydraulic Hoist Cylinder
  • Fronted Multi Stage Hydraulic Ram , Dump Truck Lift Hydraulic Hoist Cylinder

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Factory Visit: Available Applications: For Farming, Mining, Industry
    Standard: Standard Color: Customization
    Structure: Telescopic Sleeve Cylinder Model Number: Customization
    Maximum Stroke: Requirements Cylinder Diameter: 80 Mm
    High Light:

    multi stage hydraulic ram

    ,

    hollow hydraulic cylinder

    Multi-Stage Hydraulic Hoist/Fronted Hydraulic Cylinder/Dump Truck Lift Hydraulic Cylinder



    How do we ensure product quality?

    piston rod:
    1: hard chrome plating
    2: thickness of 0.03-0.05mm;
    3: in-house salt spray test



    cylinder tube:
    1: standard material-#45, SAE1045, CK45
    2. surface roughness: Ra0.4-0.08micron

    Seals:NOK, Hallite, Parker etc.
    Welding:mannual & machine welding
    Professional manufacturer& supplier of Hydraulic Cylinders
    Hydraulic Cylinders Certification ISO9001:2009, SGS, TS16949, RoHS, CNAS Certification
    Experience in export North America, Australia, Asia, Middle East, Africa
    Hydraulic Cylinders can be Make according to client's requirements
    One year warranty and long time track service is offered to solve any problems you meet after sale.



    Hydraulic cylinder types

    MODEL NO. Stage Largest Stage Diameter Stroke The largest sleeve OD Mounting distance
    FC-4-129-5180 4 129 5180 218 343
    FC-4-149-3680 4 149 3680 218 343
    FC-4-149-3980 4 149 3980 218 343
    FC-4-149-4280 4 149 4280 244 343
    FC-4-149-4620 4 149 4620 244 343
    FC-4-149-4940 4 149 4940 244 343
    FC-4-149-5180 4 149 5180 244 343
    FC-4-149-5460 4 149 5460 244 343
    FC-4-169-4280 4 169 4280 244 343
    FC-4-169-4620 4 169 4620 244 343
    FC-4-169-4940 4 169 4940 244 343
    FC-4-169-5180 4 169 5180 244 343
    FC-4-169-5460 4 169 5460 244 343
    FC-5-169-5355 5 169 5355 244 343
    FC-5-169-5780 5 169 5780 244 343
    FC-5-169-6180 5 169 6180 244 343
    FC-5-169-6830 5 169 6830 244 343
    FC-5-169-7130 5 169 7130 244 343
    FC-5-169-7630 5 169 7630 244 343
    FC-5-169-8130 5 169 8130 244 343
    FC-5-169-9030 5 169 9030 244 343
    FC-5-169-9530 5 169 9530 244 343
    FC-4-191-5460 4 191 5460 274 343
    FC-5-191-5780 5 191 5780 274 343
    FC-5-191-6180 5 191 6180 274 343
    FC-5-191-7130 5 191 7130 274 343
    FC-5-191-7630 5 191 7630 274 343
    FC-5-191-8130 5 191 8130 274 343
    FC-5-191-9030 5 191 9030 274 343
    FC-5-191-9530 5 191 9530 274 343
    FC-5-214-7610 5 214 7610 274 343
    FC-5-214-9030 5 214 9030 274 343



    MODEL NO. First Stage Diameter Stroke Largest Sleeve OD Closed length Mounting distance
    FC-4-126-4145 126 4145 219 1357 343
    FC-4-126-4345 126 4345 219 1407 343
    FC-4-126-4545 126 4545 219 1457 343
    FC-4-126-4745 126 4745 219 1507 343
    FC-4-126-4945 126 4945 219 1557 343
    FC-4-126-5145 126 5145 219 1607 343
    FC-3-145-3230 145 3230 219 1403 343
    FC-3-145-3680 145 3680 219 1553 343
    FC-3-145-3830 145 3830 219 1603 343
    FC-4-145-4110 145 4110 219 1357 343
    FC-4-145-4310 145 4310 219 1407 343
    FC-4-145-4510 145 4510 219 1457 343
    FC-4-145-4710 145 4710 219 1507 343
    FC-4-145-4910 145 4910 219 1557 343
    FC-4-145-5110 145 5110 219 1607 343
    FC-4-145-5310 145 5310 219 1657 343
    FC-4-145-5865 145 5865 219 1807 343
    FC-5-145-4310 145 4310 219 1161 343
    FC-4-165-4110 165 4110 244 1347 343
    FC-4-165-4510 165 4510 244 1447 343
    FC-4-165-4710 165 4710 244 1497 343
    FC-4-165-4910 165 4910 244 1547 343
    FC-4-165-5110 165 5110 244 1597 343
    FC-4-165-5310 165 5310 244 1647 343
    FC-4-165-5865 165 5865 244 1797 343
    FC-5-165-5135 165 5135 244 1351 343
    FC-5-165-5385 165 5385 244 1401 343
    FC-5-165-5635 165 5635 244 1451 343
    FC-5-165-6135 165 6135 244 1551 343
    FC-5-165-6385 165 6385 244 1601 343
    FC-5-165-6825 165 6825 244 1701 343
    FC-5-165-7075 165 7075 244 1751 343
    FC-5-165-7325 165 7325 244 1801 343
    FC-5-165-7575 165 7575 244 1851 343
    FC-5-165-7825 165 7825 244 1901 343
    FC-5-165-8185 165 8185 244 2001 343
    FC-5-165-8435 165 8435 244 2051 343
    FC-5-187-5135 187 5135 244 1351 343
    FC-5-187-5385 187 5385 244 1401 343
    FC-5-187-5635 187 5635 244 1451 343
    FC-5-187-6135 187 6135 244 1551 343
    FC-5-187-6385 187 6385 244 1601 343
    FC-5-187-6825 187 6825 244 1701 343
    FC-5-187-7075 187 7075 244 1751 343
    FC-5-187-7325 187 7325 244 1801 343
    FC-5-187-7825 187 7825 244 1901 343
    FC-5-187-8185 187 8185 244 2001 343
    FC-5-187-8435 187 8435 244 2051 343
    FC-5-187-8935 187 8935 244 2151 343
    FC-5-187-9185 187 9185 244 2201 343
    FC-6-187-8790 187 8790 244 1805 843
    FC-6-187-9085 187 9085 244 1855 343
    FC-7-187-8535 187 8535 244 1559 343
    FC-5-210-6135 210 6135 273 1551 343
    FC-5-210-6825 210 6825 273 1701 343
    FC-5-210-7075 210 7075 273 1751 343
    FC-5-210-7325 210 7325 273 1801 343
    FC-5-210-7825 210 7825 273 1901 343
    FC-5-210-9185 210 9185 273 2201 343

    Fronted Multi Stage Hydraulic Ram , Dump Truck Lift Hydraulic Hoist Cylinder
