Place of Origin: | Shandong China |
Brand Name: | DALLAST |
Certification: | GS CE ISO 9001 |
Model Number: | Customized |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | negotiation |
Packaging Details: | Carton or According to Customer's Require |
Delivery Time: | 15-25 days |
Payment Terms: | T/T, Western Union, D/A, D/P, L/C |
Supply Ability: | 50000 Pieces/Per year |
Color: | Any Color | Structure: | Telescopic Sleeve Cylinder |
---|---|---|---|
Working Temperature: | -30℃-80℃ | Body Material: | Stainless Steel |
Type: | Hydraulic Single Cylinder | Sample: | Available |
High Light: | single acting telescopic cylinder,industrial hydraulic cylinders |

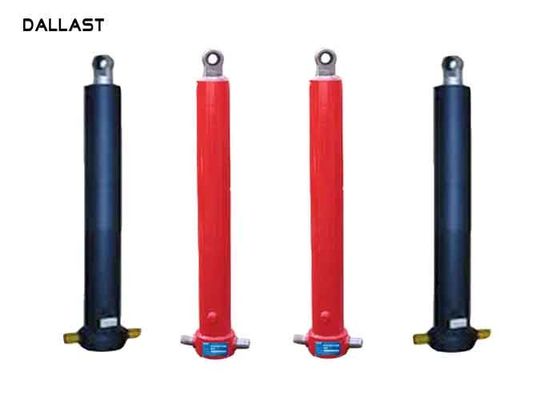

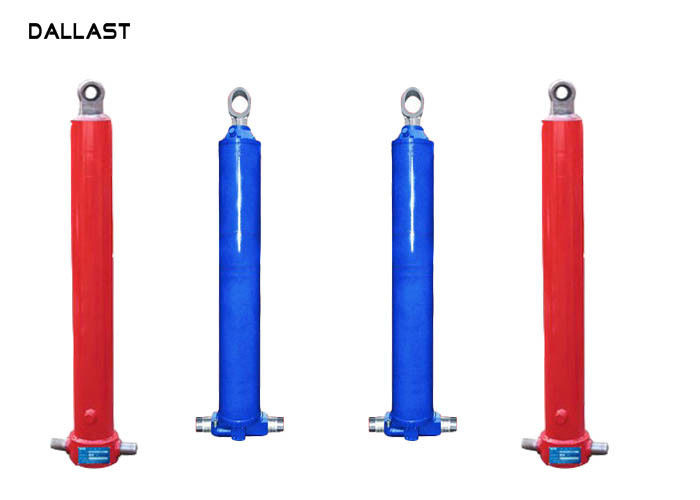

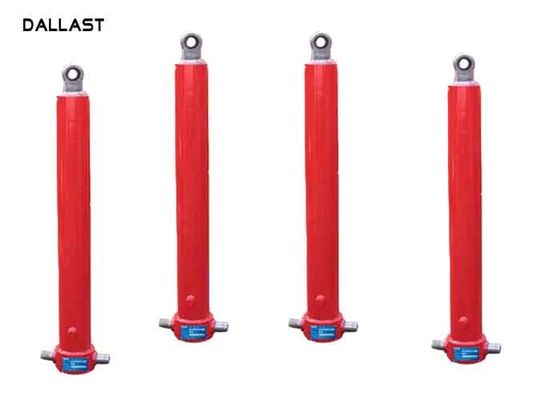

Single Acting Multistage Telescopic Hydraulic Ram for Dump Truck/Trailer
Model |
Lifting capacity Ton |
Stroke mm |
Rated pressure Mpa |
Bore diameter mm |
FE-3-E158*3880 | 28.3 | 3880 | 16 | 158/136/115 |
FE-3-E158*4090 | 28.3 | 4090 | 16 | 158/136/115 |
FE-4-E158*4280 | 28.3 | 4280 | 16 | 158/136/115/95 |
FE-4-E158*4650 | 28.3 | 4650 | 16 | 158/136/115/95 |
FE-4-E158*4940 | 28.3 | 4940 | 16 | 158/136/115/95 |
FE-4-F175*4280 | 49 | 4280 | 20 | 175/158/136/115 |
FE-4-F175*4620 | 49 | 4620 | 20 | 175/158/136/115 |
FE-4-F175*5180 | 49 | 5180 | 20 | 175/158/136/115 |
FE-5-F175*5780 | 49 | 5780 | 20 | 175/158/136/115/95 |
FE-5-F200*6180 | 64 | 6180 | 20 | 200/175/158/136/115 |
FE-5-F200*6350 | 64 | 6350 | 20 | 200/175/158/136/115 |
1. Main export market:USA, Canada, South Korea, Russia, Australia, Indonesia, Malaysia, Fiji Island, Kenya, Philippines, Bolivia, the United Arab Unites,Singapore
2. Material:Alloy steel,Carbon steel,Stainless steel,27SiMn
3. Seal:Kaden,Hallite, Parker,NOK,SKF etc
4. Rod :Chrome plated and quenched.Has good mechanical properties, long service life
6. 5. Cylinder:Honing machining /boring /rolling
7. Hydraulic Cylinders Certification ISO9001:2009, SGS, TS16949, RoHS, CNAS Certification
8. Experience in export North America, Australia, Asia, Middle East, Africa
9. We are professional manufacturer and supplier in hydraulic cylinder.
10. We do accept OEM manufacturing. We will provide competitive price and make the exact cylinder according to your specification and drawing.
11. We have professional R&D team with rich design experience.
We also establish strict but scientific product testing system so that products have perfect performance.
One year warranty and long time track service is offered to solve any problems you meet after sale.
Name | Single Acting Multistage Telescopic Hydraulic Ram for Dump Truck/Trailer | ||
HS Code | 8412210000 | ||
Application | Dump truck, Tipper, Trailer | ||
Seal | Hallite,SKF,NOK,Guarnitec,Parker | ||
Coating | chrome plated | ||
Temperature | -30ºC~100ºC | ||
Piston rod | 10-1500mm,tempering, plated nickel, Chrome or ceramic | ||
Working pressure | 16mpa-32mpa | ||
Stroke | to 12000mm or longer | ||
Color | red black blue gray,can custom according request | ||
Mounting Type | Earring-trunnion, double trunnion, double earring (eye end) | ||
Plunger | 20#, 45# steel with high frequency quenching | ||
Certification | ISO9001-2009 ,TS16949 | ||
Package | shrink film, pallet, plywood case and carton | ||
Warranty | One year after shipping arrival | ||
Payment terms | T/T, L/C, West Union,Paypal | ||
Delivery time | 15- 25 days after down payment |
QC
1. 1year warranty
Great quality products
We stand behind the quality of our products 100%
All our items come with a warranty to give you a peace of mind
New Guaranteed: All our items are in new condition in OEM or Original packing
2. Customized design
We not only produce hydraulic cylinder as OEM, but also we are able to design the original drawing for our customer who may not be so familiar the products
3. Delivery
Shipment term: CIF/CFR/FOB Qingdao China
Shipment date: 7-30 days after receiving the deposit
We will ship your items by sea, by air (DHL,UPS,FedEx,TNT, EMS,ARAMEX)
