| Place of Origin: | Qingdao |
| Brand Name: | DALLAST |
| Certification: | GS, RoHS, CE, ISO9001 |
| Model Number: | custom |
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case, carton box |
| Delivery Time: | 15-25 work days per year |
| Payment Terms: | T/T, Western Union, D/P, D/A, L/C |
| Supply Ability: | 50000 pieces |
| Pressure Direction: | Single Acting | Pressure: | 16-35MPa |
|---|---|---|---|
| Temperature: | Normal Or High Temperature | Cylinder Type: | Earring-trunnion Type |
| Bore Parameter: | Custom | Stroke: | Custom |
| High Light: | electric telescopic cylinder,elescoping hydraulic ram |
||

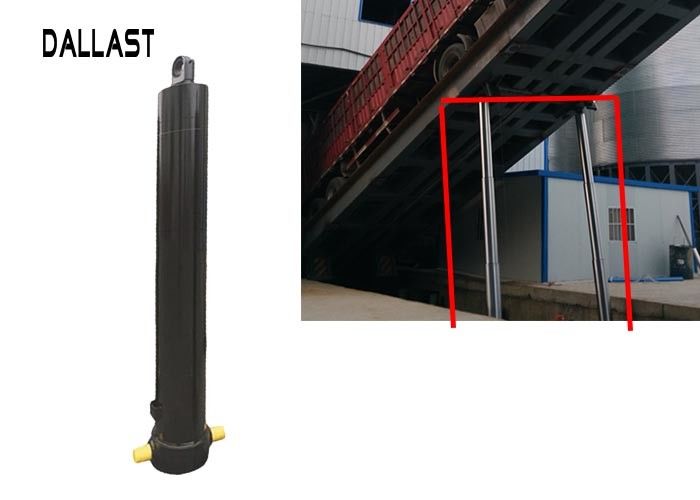

Telescopic Hydraulic Ram FE Type for Hydraulic Flap Automatic Unloading Machine
Features:
Telescopic cylinders have two or more piston rods in a coaxial arrangement to achieve greater extended length compared to the retracted length.
An external force is required to return the cylinder to the retracted position.
A typical application for a single-acting cylinder is a lift truck, where the load of the fork pushes the cylinder back.
Good quality and low noise; the oil way design perfectly and can save the energy, avoid wast.
When manufacturing multistage cylinders, the number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement.
Application: (for hydraulic flap automatic unloading machine)

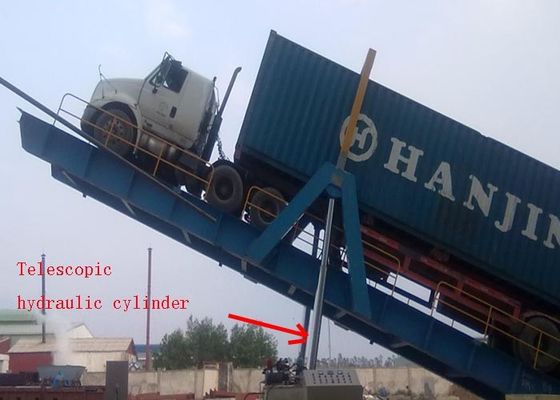

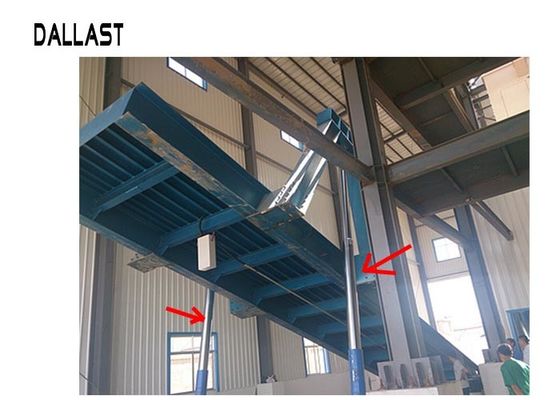

The hydraulic flap unloader uses hydraulic systems and hydraulic cylinders to automatically unload tens of tons to hundreds of tons of cargo within minutes. The process is to open the truck to the hydraulic unloading platform, start the car stop device, use the hydraulic system and hydraulic cylinder to lift the platform, reach a certain angle, so that the bulk cargo automatically slide down.
Using the hydraulic cylinders for this unloading can save time, save manpower, increase efficiency, and reduce costs.
| FE Type Hydraulic Cylinder | |||||
| Model No. | Stages | Stroke (mm) | Mounting distance (mm) | 1st Stage | Operating |
| FE-3-110-3205 | 3 | 3205 | 1449 | 110 | 16 |
| FE-3-110-3460 | 3 | 3460 | 1609 | 110 | 16 |
| FE-3-129-2980 | 3 | 2980 | 1449 | 129 | 16 |
| FE-3-129-3205 | 3 | 3205 | 1609 | 129 | 16 |
| FE-3-149-3460 | 3 | 3460 | 1320 | 149 | 16 |
| FE-3-110-3880 | 3 | 3880 | 1420 | 110 | 16 |
| FE-3-110-4270 | 3 | 4270 | 1520 | 110 | 16 |
| FE-3-110-4280 | 3 | 4280 | 1644 | 110 | 16 |
| FE-4-110-4280 | 4 | 4280 | 1450 | 110 | 16 |
| FE-4-110-5180 | 4 | 5180 | 1644 | 110 | 16 |
| FE-5-169-6830 | 5 | 6380 | 1674 | 169 | 16 |
| FE-5-169-7130 | 5 | 7130 | 1769 | 169 | 16 |
| FE-5-191-6180 | 5 | 6180 | 1527 | 191 | 16 |
| FE-5-191-9030 | 5 | 9030 | 2177 | 191 | 16 |
| FE-6-191-7420 | 5 | 7420 | 1677 | 191 | 16 |
| |||||
| Designed For | Single-acting,double-acting |
| Stage | 3~5stage cylinder |
| Max inner tube | 170mm,180mm,195mm,200mm,210mm,etc |
| Working Pressure | 16Mpa-35Mpa |
| Tipping Weight | 13-90Ton |
| Seal Type | Parker,NOK, BUSAK SHAMBAN or as customer's requirement |
| Piston Rod | Chrome or nickel plated,ground & polished piston rod |
| Tube | High tensile cold drawn tube, precision honed for extended seal life |
| Warranty | We offer 12 months warranty |
After-sales service:
1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
2. Pre-sale service and free consultation service.
3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
6. Service Center all over the world for after sales problems.
