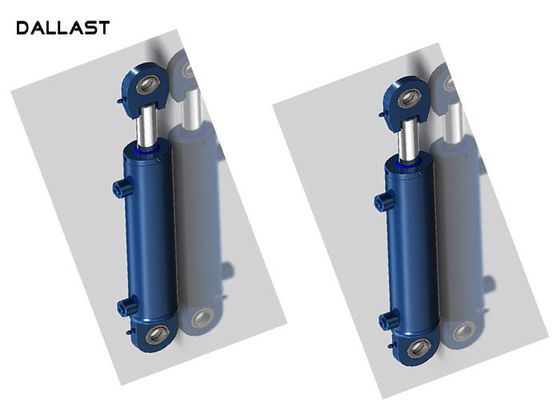

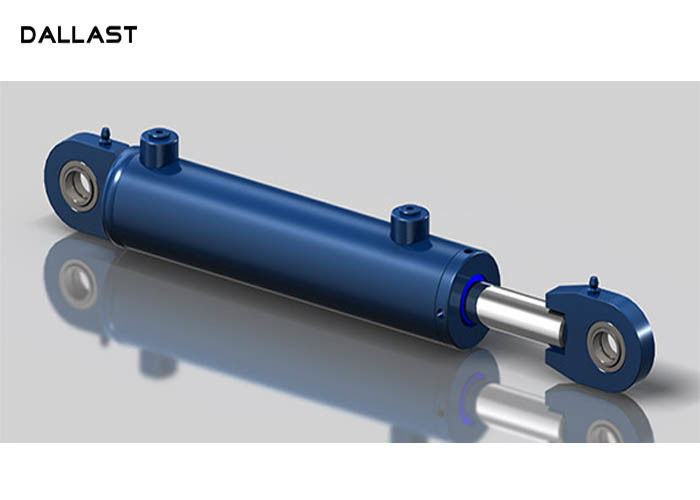

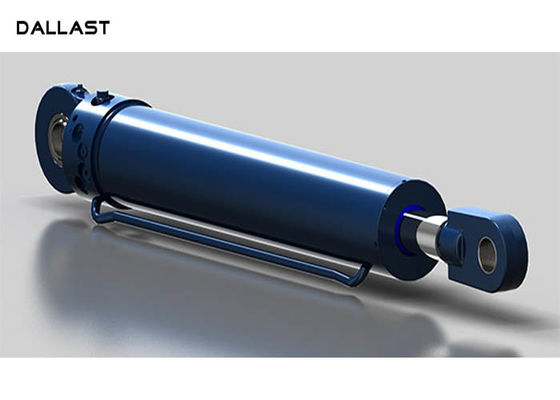

10 Inch Industrial Double Acting Hydraulic Ram Piston Cylinder For Engineering

10 Inch Industrial Double Acting Hydraulic Ram Piston Cylinder For Engineering

    • 10 Inch Industrial Double Acting Hydraulic Ram Piston Cylinder For Engineering
    • 10 Inch Industrial Double Acting Hydraulic Ram Piston Cylinder For Engineering
    • 10 Inch Industrial Double Acting Hydraulic Ram Piston Cylinder For Engineering
  • 10 Inch Industrial Double Acting Hydraulic Ram Piston Cylinder For Engineering

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Test: 100% Inspection Body Material: Stainless Steel
    Speed Ratio: 8-300 Maximum Stroke: Depends
    Structure: Piston Cylinder Rod Diameter: 22-110(mm)
    Roundness: Rz0.2~0.4 / Ra0.1Max Working Pressu: 16(MPa)
    High Light:

    double acting hydraulic cylinder

    ,

    double acting ram cylinder

    10 Inch Industrial Double Acting 2 Way Hydraulic Ram for Engineering



    1. Product details

    Product material 45# carbon steel
    Piston rod diameter 20-320mm
    Bore diamater 32-400mm
    Stroke length 4000mm
    Working pressure 16mpa
    Testing pressure 26mpa
    Oil fluid Mineral oil to DIN 51 524
    Fluid temprange Minus -20°to 70°
    Mounting style As your request



    DG model for vehicle hydraulic cylinder is double effect of single hydraulic cylinder, piston rod is in the hydraulic system for reciprocating motion of the actuator. Mainly used in vehicles, engineering machinery, lifting transportation machinery, mining organizations and other mechanical hydraulic transmission. For the selection of hydraulic oil cylinder, we generally in the process of hydraulic cylinder will be in accordance with the inner diameter, stroke, working pressure, installation type to choose hydraulic oil cylinder, in fact, in addition to these outside, still have the following points are worthy of our to notice after the first hydraulic cylinder load moving speed reaches more than a certain standard, must need have a buffer device of the hydraulic cylinder. Or outside on the hydraulic cylinder to achieve higher speed must be equipped with reduction valve. Followed by the choice of hydraulic oil and oil seal. Different hydraulic oil droplets with different material of oil seal, to ensure the service life of hydraulic cylinder.Because the hydraulic oil cylinder to bear a lot of pressure, the heavier load, the pressure will be greater, therefore, do a good job in the maintenance of hydraulic oil cylinder is the maintenance of the hydraulic system is the most important one annulus.



    Application:

    1. Engineering Oil Cylinder
    The oil cylinder and hydraulic station is generally applied in metallurgy machines, cutting machine, vehicle assembly line and engineering machines.
    Operating Speed Range(Not including Cushion Parts): less than 200mm/s(We can also supply other speed range accoding to customer's requirments)
    Operating Temperature(Ambient Temperature and Oil Temperature): -10 to +80 ºC(But do not use when oil frozen).



    2. YGD series basic oil cylinder
    The oil cylinder and hydraulic station is generally applied in metallurgy machines, cutting machine, vehicle assembly line and engineering machines.



    3. vehicle oil cylinder





    QC

    1. Strict Quality Control: For each order, strict inspections will be put in place for each procedure during their processing. The negative products will be ironed out before shipping
    2. Stable suppliers: We have cooperated with many accessory suppliers for many years, so we can get cheaper and high-quality accessories and thus we can give you a low price and high-quality products.
    3. Smooth Shipping: We have partnership with excellent shipping forwarders, therefore we can promise fast delivery and have the goods well protected.
    4. Customers from all over the world: We have enough experience about foreign trade and our clients can be found in many countries such as USA, Canada, Australia, Japan, Italy, Germany and so on
    5. Fast reply: We will respond your question with 8 hours
    6. ISO9001: Sincerely hope we can cooperate with you with our high-quality cylinder and good service.



    10 Inch Industrial Double Acting Hydraulic Ram Piston Cylinder For Engineering
