Dual Acting Hydraulic Piston Cylinders for Engineering Truck / Transportation Machinery

Dual Acting Hydraulic Piston Cylinders for Engineering Truck / Transportation Machinery

    • Dual Acting Hydraulic Piston Cylinders for Engineering Truck / Transportation Machinery
    • Dual Acting Hydraulic Piston Cylinders for Engineering Truck / Transportation Machinery
    • Dual Acting Hydraulic Piston Cylinders for Engineering Truck / Transportation Machinery
  • Dual Acting Hydraulic Piston Cylinders for Engineering Truck / Transportation Machinery

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet or as your requirements
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union
    Supply Ability: 1 Piece Per Year
    Contact Now
    Detailed Product Description
    Origin: Shandong, China Work Temperature: Normal Temperature
    Adjusted Form: Regulated Type Certification: Gs, RoHS, Ce, ISO9001
    Material: Stainless Steel, Alloy Steel Available Temperature: -40℃ To 80℃
    Standard: Standard, Nonstandard Working Medium: Hydraulic Oi
    High Light:

    double acting hydraulic cylinder

    ,

    double acting ram cylinder

    Dual Acting Hydraulic Piston Cylinders for Engineering Truck / Transportation Machinery


    Hydraulic cylinders:
    Hydraulic cylinders are an important industrial tool used in machinery, manufacturing, and a number of other functions. The basic design of a hydraulic cylinder has changed little over the years. Hydraulic cylinders have enormous push/pull power and can haul, dig, push, drill, and move heavy objects and materials. The work by exploiting the mechanics of pressure exerted on the piston. The force is equal to the surface area multiplied by pounds per square inch of pressure.


    Description:

    Double-acting , hydraulic return
    Safety valve built-in prevents damage in case of accidental over-pressurization
    Unique bearing design withstands side load forces up to 10% of rated cylinder capacity without scoring
    Dismountable hardened grooved saddles are standard
    Baking varnished external coating and specially plated piston
    Base mounting holes are standard on each model
    Plunger wiper reduces contamination, extending cylinder life

    Custom Order Notice:
    We have more items for this Series,please Contact usfor details.

    Capacity 50 - 1000 ton
    Stroke 50 - 10000 mm
    Max. Working Pressure 900 bar

    Custom hydraulic cylinder (OEM):
    Not only we could manufacture all kinds of heavy duty hydraulic cylinder construction and mining
    trucks according to the drawing from customers,but also we could make a design according to
    customers’requirements . If you require our engineer to make a design , please advise us the
    following specification :
    1. Rated pressure
    2. Working pressure
    3. Test pressure
    4. Working condition and environment ,for example ,temperature ,working frequency
    5. Pulling force ,and return stroke force
    6. Pulling and return speed
    7. Assembly size
    8. Seal ring requirements .For example , brand ,seal material etc .
    9. Tube and piston rod raw material requirements
    10. Piston rod surface treatment requirements, for example

    FAQ:

    Q1: Are you a manufacturer or a trader?
    We are a manufacturer ,our own factory is located in Shandong province,China.
    Q2: How do you protect customer's right?
    Dallast's work habit is to sign confidential agreement with own/outside factories all the time before start any project.
    Q3: How long shall we get the quotation?
    Processing time for Enquiries :1-3 days.
    Q4: What is your payment term?
    Payment term:
    1)Pattern and tooling: 50% prepaid as order deposit; balance 50% paid within 10 days after samples approved.
    2)Samples: 50% prepaid as order deposit; balance 50% paid within 10 days after samples approved.
    3)Products: 30% prepaid as order deposit;70% paid before EX-work.
    Q5: Will we have the property of the tooling?
    Yes,tooling's cost is one-time charge,the property of toolings will be yours after pay off all the charges.
    Q6: What shall we do if the quality is not meet our requirement?
    If that is the case after we re-test,we can repay the payment or re-produce until it reach the quality.
    Parameter:
    We manufacture all kinds of hydraulic cylinders.We also make customer hydraulic cylinders according to your requirements.
    To get an immediate quotation,please provide us with the following necessary parameters:
    1) Bore diameter
    2) Piston rod diameter
    3) Stroke length
    4) Working pressure
    5) Mounting method


    Mounting positionOptional
    Bore sizeSeveral bore sizes and in varying strokes; Many of these sizes are available
    Strokedepend on the application
    Operating pressures

    Nominal pressure:25 MPa (250 bar 3625 psi)
    Static test pressure: 37 MPa (370 bar 5440 psi)
    Cylinders are designed for normal or high pressure

    Operating temperature-30 to +80 degrees Celsius, but the unit should not be used when oil is frozen.
    Hydraulic fluidCustom
    Rod diameterLarger diameters vary between 50,000 and 75,000 PSI minimum yield material
    Rod materialAll rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available.
    Seal Parker/Nok/Hallite etc.

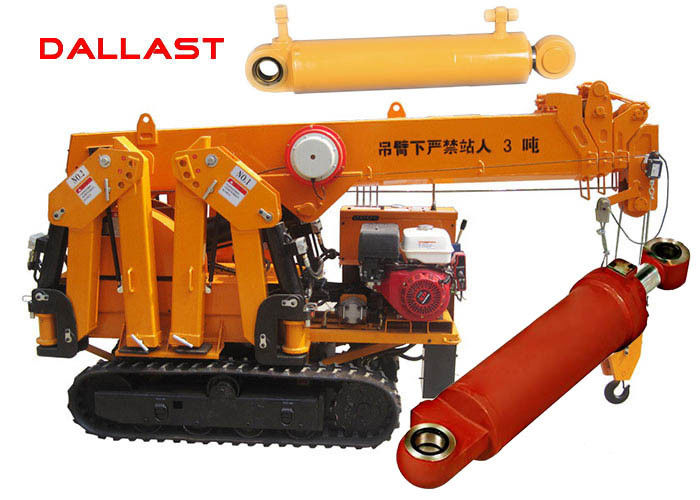

    The product can be used on agricultural handling equipment ,such as agricultural tractors, Agricultrual farm Truck, agricultural carriage car, agricultural fork lift truck.

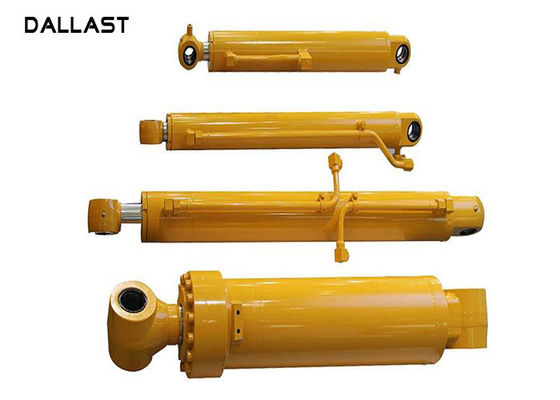

    Product Show:
    Dual Acting Hydraulic Piston Cylinders for Engineering Truck / Transportation Machinery
