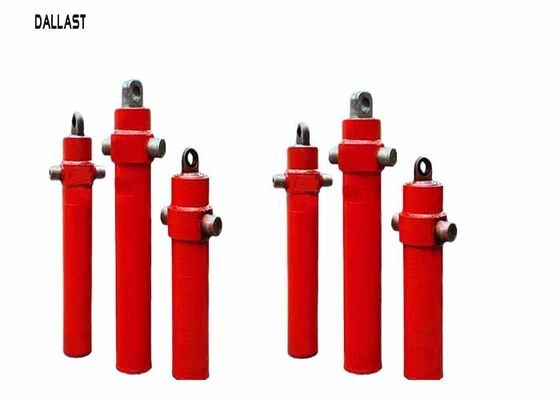

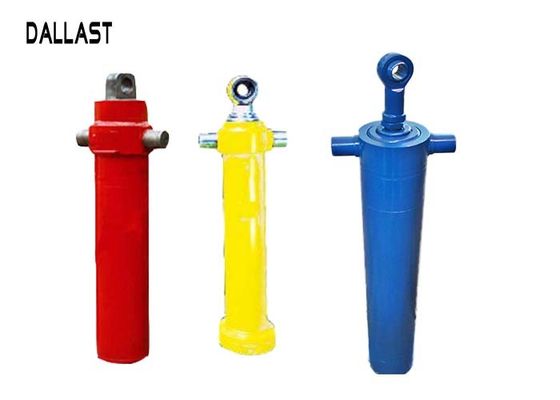

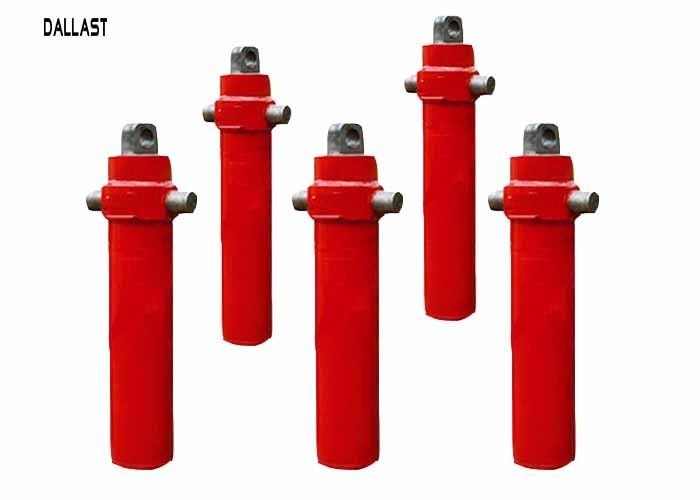

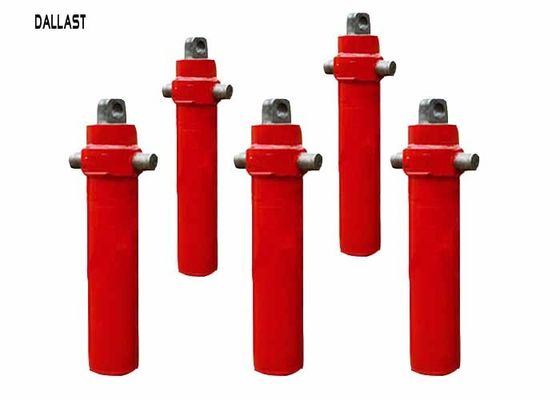

Hydraulic Cylinder Multi Stage Single Acting Front End of Earring Fixed with Axle

Hydraulic Cylinder Multi Stage Single Acting Front End of Earring Fixed with Axle

    • Hydraulic Cylinder Multi Stage Single Acting Front End of Earring Fixed with Axle
    • Hydraulic Cylinder Multi Stage Single Acting Front End of Earring Fixed with Axle
    • Hydraulic Cylinder Multi Stage Single Acting Front End of Earring Fixed with Axle
  • Hydraulic Cylinder Multi Stage Single Acting Front End of Earring Fixed with Axle

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: custom

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 15-25 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Pressure: Normal Pressure Temperature: Normal Temperature
    Mounting Type: Custom Rod Diameter: Custom
    Structure: Single Acting Application: Dump Truck, Trailer, Dumper

    Hydraulic Cylinder Multi Stage Single Acting Front End of Earring Fixed with Axle



    Features:

    Acts on the piston to push the piston rod out; Choice of mounting styles, cross tube or trunnion; Hard chrome plated stages.



    The number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement.



    The length of a hydraulic cylinder is the total of the stroke, the thickness of the piston, the thickness of bottom and head and the length of the connections.



    Mounting way:
    1. Front and end of earring;
    2. Head fixed with flange;
    3. End fixed with flange;
    4. Vertical to axis foot type;
    5. Middle fixed with pendulum shift;
    6. End with single earring;
    7. According to your demand.



    Product introduction:

    Single-acting multistage telescopic sleeve hydraulic cylinder, large stroke,can be used for heavy vehicles, agricultural vehicles and other vehicles tilting the bucket lift cylinder.


    standard product type

    bore size

    (mm)

    rod size

    (mm)

    pressure

    (Bar)

    stroke

    (mm)

    close length

    (mm)

    stage

    3TG-E150*3830EZ 150 98 160 3830 1635 3
    3TG-E150*3360EZ 150 87 160 3360 1370 3
    4TG-E150*4400EZ 150 100 160 4400 1390 4
    4TG-E180*4595EZ 180 100 160 4595 1500 4
    4TG-E180*4595EZ 180 120 160 4595 1480 4
    If you are interested in our products, contact us and send us the drawings:

    The drawing details are as follows.

    A

    1. Bore size

    2. Stroke length

    3. Rod diameter

    4. Mounting type

    5. Mounting length

    6. Paint color requirement



    B

    The product application description details

    1. Type of machine(loader, steer loader, excavator, and etc.)

    2. Type of function(hoist, swing, steering, and etc.)

    3. Type of structure(piston, telescopic)

    4. Single or double acting

    5. Operating pressure



    Material:

    Stainless steel is used in many of our designs to ensure corrosion, it does not end the life of the cylinder prematurely. Many stainless steel threads are coated with a proprietary substance to prevent thread galling to facilitate ease of assembly over the life of the cylinder, when periodic maintenance is required such as seal replacement.



    Warranty:
    We offer 12 months warranty.

    From the date of delivery within 12 months, our company is responsible for the replacement, repair or return. The user is a hydraulic cylinder propulsion, to improve the inherent quality of the fuel tank is the purpose of our factory production and the pursuit of goals.



    The most common problems when selecting a hydraulic cylinder are as follows:

    A. Retract dimension

    B. Stroke length (Inches / mm)

    C. Mounting types

    D. Port Size and Type (SAE or NPT)

    E. Pressure rating

    F. Bore Diameter

    G. Application details



    Hydraulic Cylinder Multi Stage Single Acting Front End of Earring Fixed with Axle
