Place of Origin: | Shandong, China |
Brand Name: | Dallast |
Certification: | Gs, RoHS, Ce, ISO9001 |
Model Number: | Customized |
Minimum Order Quantity: | 1 Piece |
---|---|
Price: | Negotiation |
Packaging Details: | Plywood Box or Pallet or as your requirements |
Delivery Time: | 15-25 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 1 Piece Per Year |
Material: | Stainless Steel | Delivery Time: | 15-25 Days |
---|---|---|---|
Work Temperature: | Normal Temperature | HS Code: | 8412210000 |
Seals: | Parker, Merkel, Hallite | Working Method: | Straight Trip |
High Light: | agricultural hydraulic rams,agricultural hydraulic cylinder |
Double Acting Chrome Hydraulic Cylinder for Agricultural Farm Truck
Double acting:
The utility model relates to a multistage double acting hydraulic cylinder, which comprises a cylinder, piston, piston rod and cylinder, including the final stage of several levels within the cylinder, the piston rod is arranged in a final cylinder, cylinder bottom is provided with an oil inlet hole and the other end is provided with an oil hole; the external cylinder at one end in each stage close to the oil inlet hole of the fixed piston within the cylinder, each level is provided with a guide hole, the oil guide hole is a through hole conduction within the cylinder inside and outside, and the two outlet at the same side of the piston, the piston, located in the outer wall of the inner wall of the adjacent outlet located in the outlet located far away from the end of the piston. The oil guide hole inner cavity and the outer cavity of each level within the cylinder, two oil outlet are fixed on a cylinder, oil pipe and the oil inlet is connected with tubing made of rigid tubing, with the reciprocating motion of the piston rod and the ultimate elongation, shortening and bending, avoid late stage piston rod and tubing the reciprocating motion of the collision interference and wear.
Main Features:
1. Seal kits: From USA, durable and hard-wearing to ensure the small hydraulic cylinder a long service life
2. Heat treatment: Quenching&Tempering which makes the piston rod super high hardness.
3. Cleaning: Ultrasonic cleaning.
4. Cutting: High precision provided by automatic roller cutting machine.
5. Testing: Ultrasonic detector, spectrograph, CMM, metallography, chrome thickness tester.
6. Advantage: Simple structure & reliable work, easy maintenance & diverse connecting ways of small hydraulic cylinder.
7. Plan: Different manufacturing plans for different customers.
8. MOQ: 1 PCS of small hydraulic cylinders
9. Lead time: 1~30 days depends on the small hydraulic cylinder quantity & whether customized.
10. Warranty: Change a new small hydraulic cylinder and we pay for the air freight in 2 years warranty time.
Parameter:
We manufacture all kinds of hydraulic cylinders.We also make customer hydraulic cylinders according to your requirements.
To get an immediate quotation,please provide us with the following necessary parameters:
1) Bore diameter
2) Piston rod diameter
3) Stroke length
4) Working pressure
5) Mounting method
Double Acting Chrome Hydraulic Ram Cylinder for Agricultural Farm Truck |
|
HS Code | 8412210000 |
Application | Dump truck,Tipper,Trailer |
Material of cylinder tube | Alloy steel |
Seal | Kaden,Hallite, Parker,NOK,SKF etc |
Coating | All tubes are chrome plated |
Working pressure | 10MPa-32MPa |
Stroke | 3000mm-12000mm |
Color | Black,Blue,Yellow,White,Red etc |
Mounting Type | Earring-trunnion, double trunnion, double earring (eye end) |
Plunger | 20#, 45# steel with high frequency quenching |
Certification | ISO9001:2008 ,SGS, TS16949 |
Package | shrink film, pallet, plywood case and carton box |
Warranty | One year after shipping arrival |
Main export market | USA, Canada, South Korea, Russia, Australia, Indonesia, Malaysia, Fiji Island, Kenya, Philippines, Bolivia, the United Arab Unites,Singapore |
Payment terms | T/T, L/C, West Union |
Delivery time | 15-25 days after down payment |

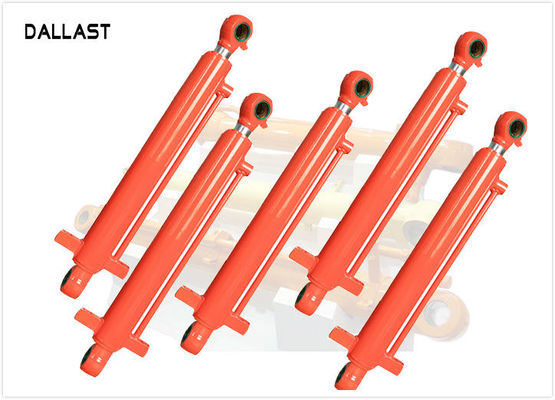

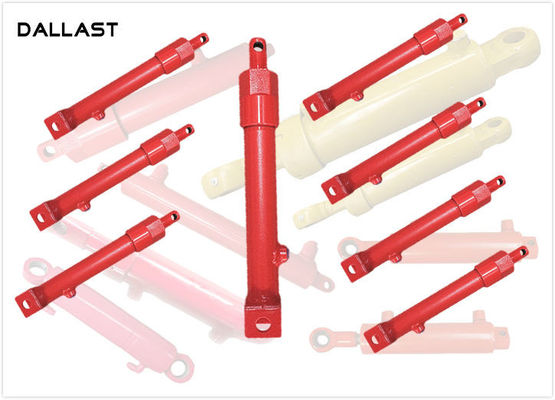

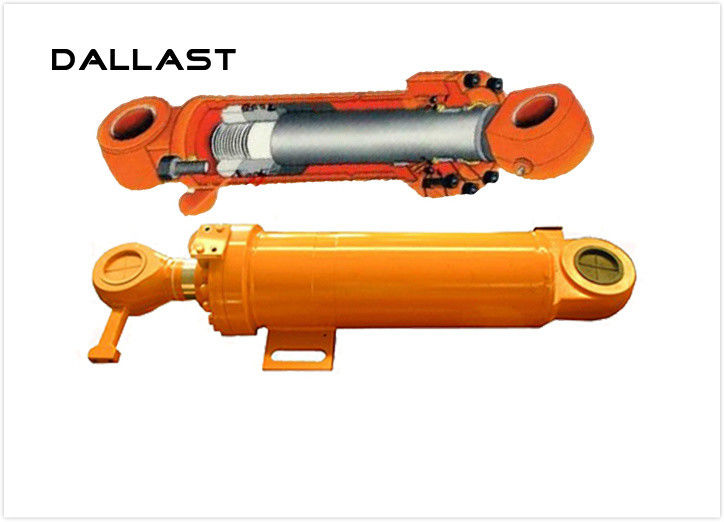

Product Show:
