220 V AC Hydraulic Pump Motor High Pressure Small Hydraulic Actuator Power Unit

220 V AC Hydraulic Pump Motor High Pressure Small Hydraulic Actuator Power Unit

    • 220 V AC Hydraulic Pump Motor High Pressure Small Hydraulic Actuator Power Unit
    • 220 V AC Hydraulic Pump Motor High Pressure Small Hydraulic Actuator Power Unit
    • 220 V AC Hydraulic Pump Motor High Pressure Small Hydraulic Actuator Power Unit
  • 220 V AC Hydraulic Pump Motor High Pressure Small Hydraulic Actuator Power Unit

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Hydraulic Power Pack Action: Double Acting Standard Or Nonstandard: Standard
    Medium: Hydraulic Oil Size: Custom Made
    Sample: Offer Heat Treatment: Quenching
    Usage: Hydraulic Equipment Motor: Custom-designed
    High Light:

    hydraulic pump motor

    ,

    hydraulic power pack

    220 V AC High Pressure Small Hydraulic Actuator Power Unit Hydraulic Pump Motor



    Introduction

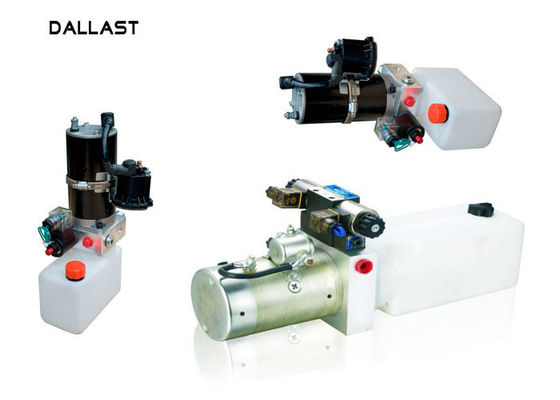

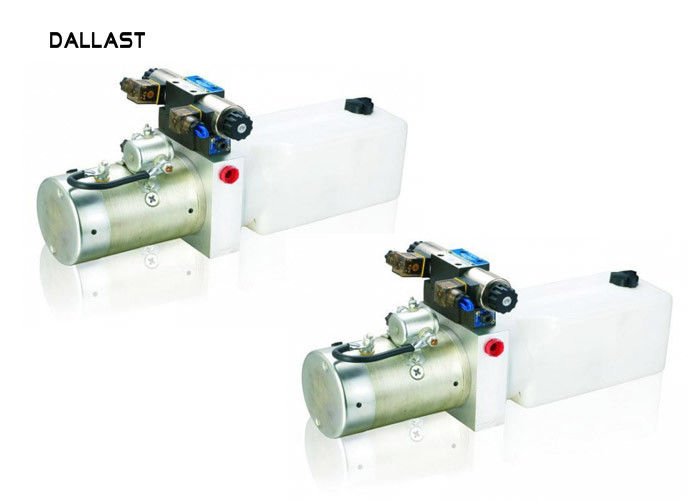

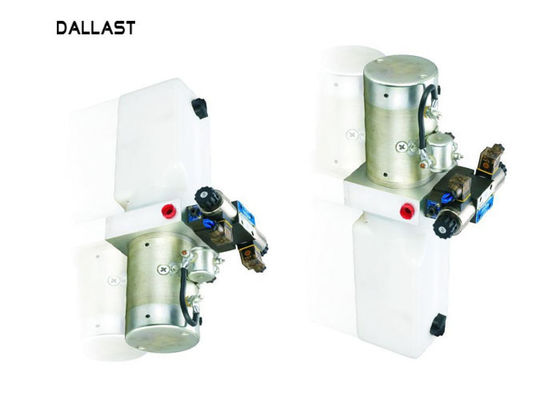

    The hydraulic power unit consists of high pressure gear pump, dc motor, multi-purpose integrated block, all kinds of hydraulic valve, fuel tanks and other components co. LTD. Is a organic combination, is a typical power up, power down the hydraulic circuit? The second relief valve system realize the control of the downward pressure, pressure compensated flow valve automatically to falling speed adjustment. This product is widely used in small dump truck, hydraulic winch. This power unit is suitable for control of a set of double-acting cylinder. Widely used in small dump truck, hydraulic winch, etc.
    This unit comes standard in many dump trailers and It is a direct replacement for most power-up/gravity-down applications. Its high-quality starter ensures long life and a fast starting each time. The motor is built to last, and the tank has been specifically designed to not crack & leak under harsh conditions.







    Hydraulics Parts 1. Hydraulic Pump Gear, Vane, Piston
    2. Hydraulic Valves Directional Control
    3. Relief Valve In-line, Modular and Cartridge ones. All sizes Cutup.
    4. Flow Control Valve In-line, Modular and Cartridge ones. All sizes Cutup.
    5. Suction Filter Strainer
    6. Pressure Filter.
    7. Flexible Couplings.
    8. Pump/Motor Belt Housing.
    9. Sight Level and Tempura Gauge.
    10. Pressure Gauge.
    11. Breather Filter Cap and Strainer



    Directions for use
    • According to hydraulic principle diagrams, with clean connecting hydraulic power unit and oil cylinder tubing.
    • According to the motor and the power of the electromagnetic valve marked characteristics (ac, dc voltage is properly connected. )
    • Inching motor observe any abnormal phenomenon. In actuators, without load, start the electric, short run test, check whether all the parts run smoothly, determine and correct after loading step by step to normal operation.



    Maintenance



    • We must keep the actuators, and pipeline cleaning, prevent dirt from entering the system.

    • We must keep the tank oil level, after a work cycle, proper fill oil. Such as pump suction air will cause the damage of pump and the damage of the seal.

    • 100 hours after the running of hydraulic oil for the first time to join, change the new oil. after a year( 1500 hours) to replace a new oil.

    • Hydraulic oil viscosity for 22 and 46 was commonly/s.

    • Working environment temperature high use hydraulic oil of high viscosity, low working environment with low viscosity hydraulic oil



    Quality control:
    .All specification is designed by professional engineer
    2. All material is high quality
    - Seal kits are purchased from USA, Japan, UK and Sweden.
    3. All material is processed by skilled workers and advanced CNC lathe
    4. All cylinders are 100% tested before package to ensure every cylinder is qualified for its purpose
    5. Package is aircushion film for each cylinder and steel case for all cylinders to ensure goods can arrive at customer safely
    6. One-year warranty and life long time follow up service is offered to solve any problems you met when use our products



    FAQ:

    1. Which payment terms can you accept?
    normally we can work on t/t term or L/C term, sometime DP term.
    On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment, or against the copy of original B/L for old client.
    On L/C term, a 100% irrevocable L/C without 'soft clauses “can be accepted , please seek the advice from the individual sales manager whom you work with



    2. How long will our price be valid?
    We are a friendly supplier, never greedy on windfall profit, basically, our price remains stable through the year, we only adjust our price based on two situations:
    The rate of USD, RMB varies significantly according to the international currency exchange rates.
    our raw material suppliers dusted the price, because of the increasing labor cost, and raw material cost.
