Place of Origin: | Shandong, China |
Brand Name: | Dallast |
Certification: | Gs, RoHS, Ce, ISO9001 |
Model Number: | Customized |
Minimum Order Quantity: | 1 Piece |
---|---|
Price: | Negotiation |
Packaging Details: | Plywood Box or Pallet or as your requirements |
Delivery Time: | 15-25 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 1 Piece Per Year |
Certification: | Gs, RoHS, Ce, ISO9001 | Delivery Time: | 15-25 Days |
---|---|---|---|
Working Method: | Straight Trip | Standard: | Standard, Nonstandard |
Hardness: | HRC 45-55 | Working Pressure: | 16-32 Mpa |
High Light: | dump truck hydraulic ram,dump truck hydraulic cylinder |

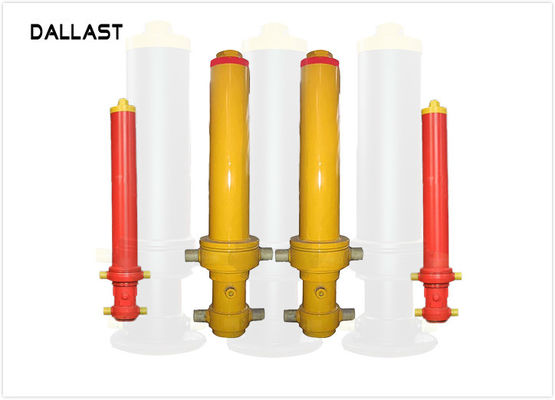

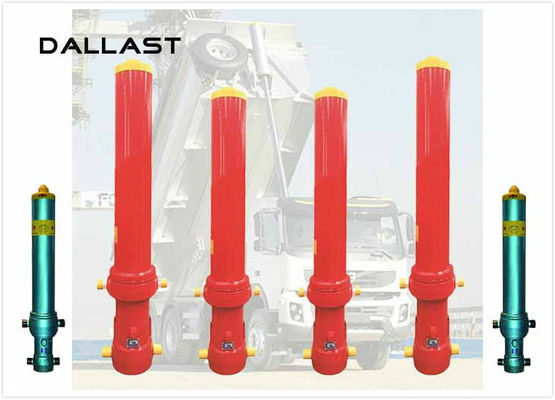

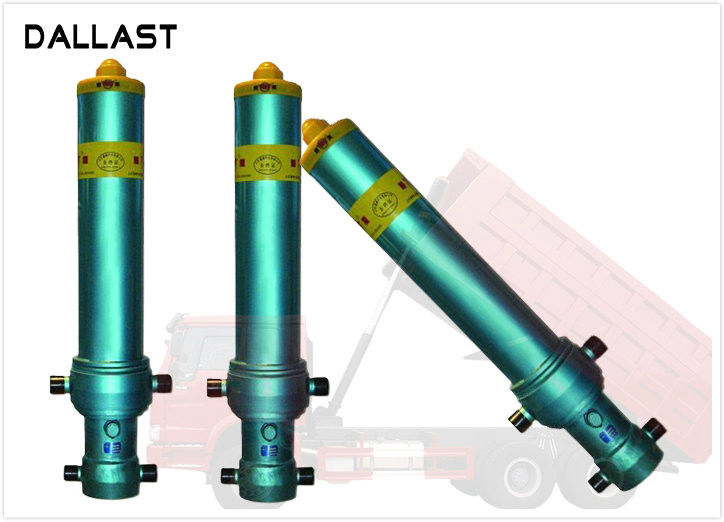

Single Acting Long Stroke Customized Front End Hydraulic Cylinders for Dump Trailer
Hydraulic Cylinder:
Hydraulic cylinder is both for single or double-acting applications with heavy duty welded construction. Cylinder’s standard color is black, orange or as per requirement. In addition, all seals are manufactured to US specification, and being 100% hydro-pressure tested before delivery. Rod surface treatment is for chrome plated or as per requirement. Hydraulic cylinder’s standard is B type piston (optional: A type piston).
Hydraulic cylinders are an important industrial tool used in machinery, manufacturing, and a number of other functions. The basic design of a hydraulic cylinder has changed little over the years. Hydraulic cylinders have enormous push/pull power and can haul, dig, push, drill, and move heavy objects and materials. The work by exploiting the mechanics of pressure exerted on the piston. The force is equal to the surface area multiplied by pounds per square inch of pressure.
Cylinder of the Advantages and Disadvantages:
1. As the hydraulic system uses pressure is generally in the range of 0.2-1.0Mpa, so the cylinder is the driving force can not do high-power components. Hydraulic cylinders can be done relatively large power device, use the hydraulic system;
2. From the media about the air can be unlimited, no cost and supply difficulties, the gas will be used directly into the atmosphere, convenient, no pollution, hydraulic oil is the opposite;
3. The air viscosity is small, the resistance to less than the hydraulic oil;
4. But the air is much larger than the compression rate of hydraulic oil, so it's working smoothly and to respond to far backward in this regard.
Hydraulic cylinder hydraulic system is the most important components of implementation, it can convert mechanical energy of hydraulic and matched with a variety of transmission to complete all of the mechanical movement. Hydraulic cylinder has a simple structure, the output force, stable and reliable performance and easy maintenance, wide range of applications and so on.
Parameter:
Single Acting Long Stroke Customized Front End Hydraulic Cylinders for Dump Trailer
|
|||||||
Model | Tipping.Max | Press | Close.height(mm) | Tanker.Vol | carriage | Rear overhang | Lifting.angle |
(T) | (MPa) | (L) | (mm) | (degree) | |||
3TG-E140×4000 | 24.6 | 16 | 1675 | 50 | 5200-5400 | 700mm | 48-52 |
4TG-E140×4270 | 24.6 | 16 | 1421 | 55 | 5400-5600 | 700mm | 48-52 |
4TG-E175×4450 | 38.5 | 16 | 1470 | 81 | 5600-6000 | 800 | 48-52 |
4TG-E175×4650 | 38.5 | 16 | 1509 | 84 | 6000-6400 | 800 | 48-52 |
4TG-E175×5000 | 38.5 | 16 | 1597 | 91 | 6400-6600 | 800 | 48-52 |
4TG-E175×5390 | 38.5 | 16 | 1695 | 98 | 6600-7000 | 800 | 48-52 |
4TG-E175×5780 | 38.5 | 16 | 1792 | 104 | 7000-7400 | 800 | 48-52 |
4TG-E175×6000 | 38.5 | 16 | 1851 | 109 | 7400-7800 | 800 | 48-52 |
4TG-E175×6180 | 38.5 | 16 | 1897 | 112 | 7800-8000 | 800 | 48-52 |
4TG-E185×4650 | 43 | 16 | 1509 | 96 | 6200-6600 | 800 | 48-52 |
4TG-E185×5000 | 43 | 16 | 1597 | 103 | 6600-6800 | 800 | 48-52 |
4TG-E185×5390 | 43 | 16 | 1695 | 111 | 6800-7200 | 800 | 48-52 |
4TG-E185×5780 | 43 | 16 | 1792 | 119 | 7200-7600 | 800 | 48-52 |
4TG-E185×6000 | 43 | 16 | 1851 | 123 | 7600-8000 | 800 | 48-52 |
4TG-E185×6180 | 43 | 16 | 1897 | 127 | 8000-8500 | 800 | 48-52 |
Tips: OEM service provided. We also can design by ourselves. We also produce hydraulic system, hydraulic power units. |
Dallast front end tipping solution with standard operating pressure up to 620 bar providing the best performance through the combination of reducing weight, increasing tipping speed and stability. |
FAQ:
Questions: | Answers: |
1. Compared with Hyva cylinder, what are your cylinder advantages? |
1. Tubes are chrome plated. 2. Tubes are quenched and tempered. |
2. Compared with Hyva cylinder, what are your cylinder advantages? |
1. Tubes are chrome plated. 2. Tubes are quenched and tempered. |
3. Are you a manufacturer? | Yes, we have been in this sector for nearly 15 years. We produce hydraulic cylinder hydraulic power unit for nearly 15 years. |
4. Do your products come with a warranty? | Yes, we have one year warranty. In this year, if the quality have problems we will free repair for you. |
5. How do you deliver the products? | By sea, By plane, By couriers. |
6. What’s your cylinder PPM? | 5000 PPM. We do 100% inspection before delivery. |
Product Show:
