Agricultural Dump Truck Hydraulic Cylinder Plunger Long Stroke 16-32 Mpa Working Pressure

Agricultural Dump Truck Hydraulic Cylinder Plunger Long Stroke 16-32 Mpa Working Pressure

    • Agricultural Dump Truck Hydraulic Cylinder Plunger Long Stroke 16-32 Mpa Working Pressure
    • Agricultural Dump Truck Hydraulic Cylinder Plunger Long Stroke 16-32 Mpa Working Pressure
    • Agricultural Dump Truck Hydraulic Cylinder Plunger Long Stroke 16-32 Mpa Working Pressure
  • Agricultural Dump Truck Hydraulic Cylinder Plunger Long Stroke 16-32 Mpa Working Pressure

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet or as your requirements
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, L/C, D/P
    Supply Ability: 1 Piece Per Year
    Contact Now
    Detailed Product Description
    Acting Way: Single Acting Power: Hydraulic
    Delivery Time: 15-25 Days Available Temperature: -40℃ To 80℃
    Working Pressure: 16-32 Mpa Material: 20#, 45# Steel, 21#, 27# SiMn
    High Light:

    dump truck telescopic cylinder

    ,

    dump truck hydraulic cylinder

    Single Acting Plunger Long Stroke Agricultural Dump Trailer Hydraulic Rams​





    Key Specifications/Special Features:

    Hydraulic tilting cylinder:
    As manufacturer of hydraulic cylinders in China, we own the best technology and apply for 13 national patent about telescopic hydraulic cylinders so our cylinders own a high reputation in international market, our repair rate is less than 1% every year
    We produce it according to ISO 9001:2000
    We can produce standard telescopic hydraulic cylinders and nonstandard telescopic hydraulic cylinders for our customers.

    Cylinder details:
    1. Mounting type: turning, flange, earring, according to your demand
    2. Seal: use parker, NOK and other famous seal parts to ensure the quality
    3. Piston rod: 20#, 45# steel with high frequency quenching
    4. Buffer function: you can choose to design with adjustable buffer to avoid impact of cylinder
    5. Size:
    Bore: 20-500mm (7/8-20"), stroke can reach to 11000mm
    6. Usually, it is easy and accurate to make samples according to your drawings, you can also send us samples for reference and for reproductions for your final approval



    Parameter:

    Hydrailic Cylinder Data:

    A.Bore diameter

    B.Rod diameter

    C.Stroke length

    D.Mounting type

    E.Mounting size

    F.Paint color requirement.

    Hydraulic cylinder is both for single or double-acting applications with heavy duty welded construction. Cylinder’s standard color is black, orange or as per requirements. In addition, all seals are manufactured to US specification, and being 100% hydro-pressure tested before delivery. Rod surface treatment is for chrome plated or as per requirements.



    Single Acting Welded Plunger Long Stroke Dump Trailer Hydraulic Cylinder



    Model Extended
    Stages
    Working Pressure Max. stage Max. stroke Lifting
    Capacity
    Suitable Length of Truck Body
    (MPa) Diameter(mm) (mm) (ton) (m)
    129-3E-3880 3 16-19 129 3880 20-35 5.2
    149-3E-3880 3 16-19 149 3880 25-45 5.2
    149-3E-4280 3 16-19 149 4280 25-45 5.6
    149-4E-3880 4 16-19 149 3880 25-40 5.2
    149-4E-4280 4 16-19 149 4280 25-40 5.6
    169-4E-4280 4 16-19 169 4280 30-50 5.2-5.6
    169-4E-4640 4 16-19 169 4640 32-55 5.6-6.1
    169-4E-5000 4 16-19 169 5000 32-60 6.2-6.8
    169-4E-5180 4 16-19 169 5180 32-60 6.2-6.9
    169-4E-5390 4 16-19 169 5390 32-60 6.2-6.9
    185-4E-4640 4 16-19 185 4640 30-45 5.6-6.1
    185-4E-5000 4 16-19 185 5000 32-50 6.2-6.5
    185-4E-5390 4 16-19 185 5390 40-60 6.2-6.8
    185-4E-5460 4 16-19 185 5460 40-65 6.5-7.3
    191-5E-5780 5 16-19 191 5780 40-70 6.9-7.7
    191-5E-6200 5 16-19 191 6200 45-80 7.3-8.2
    191-5E-7130 5 16-19 191 7130 50-85 7.8-8.5
    191-5E-9030 5 16-19 191 9030 55-90 10.0-11.0


    FAQ:

    Questions: Answers:
    Q1: Are you a manufacturer or a trader? We are manufacturer ,our own factory is located in Liaoning province, China.
    Q2: How do you protect customer's right? DALLAST's work habit is to sign confidential agreement with own/outside factories all the time before start any project.

    Q3: How long shall we get the quotation? Processing time for Enquiries :1-3 days.

    Q4: How long have you been in Hydraulic Cylinder industry?

    Our factory is built in year 2002 .
    Q5: How about the warranty and after-sale service?

    One year warranty, and we can offer you long-distance after-sale service 7*24h



    Product Show:

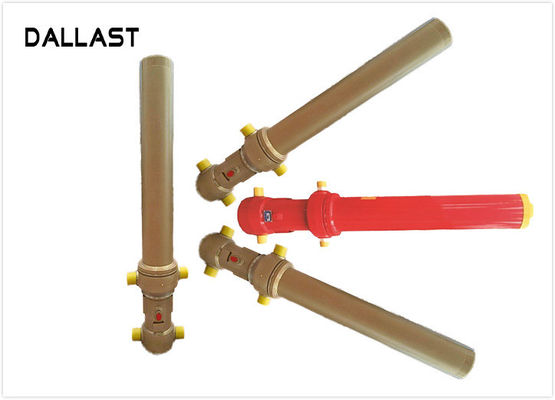

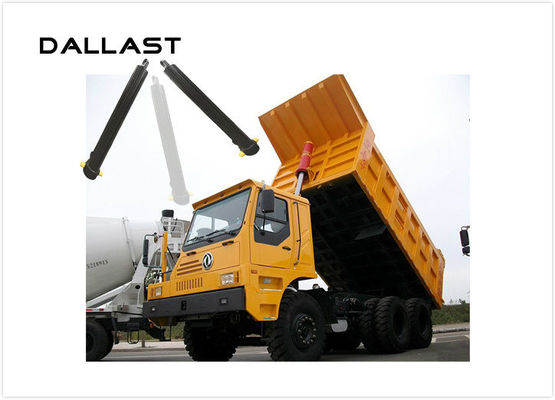

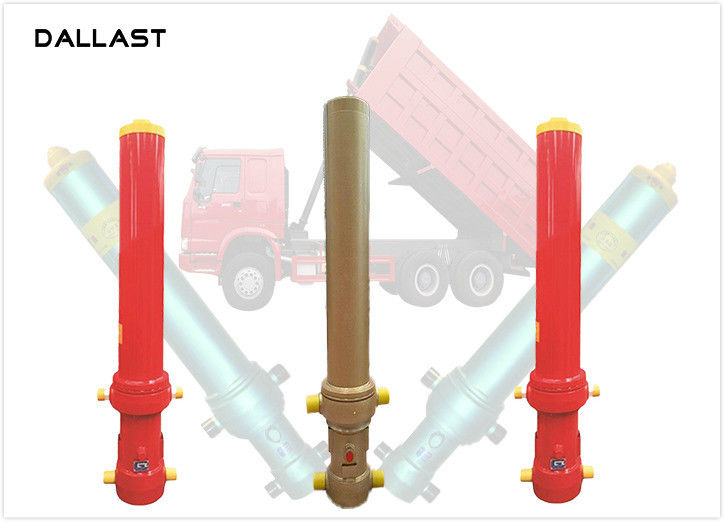

    Agricultural Dump Truck Hydraulic Cylinder Plunger Long Stroke 16-32 Mpa Working Pressure
