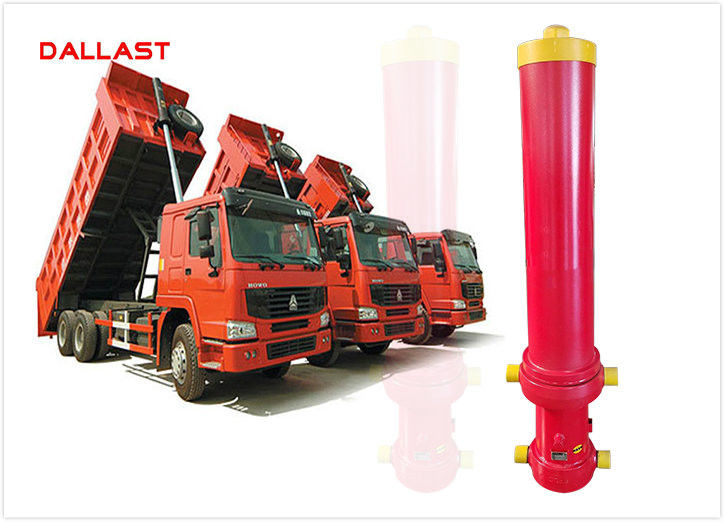

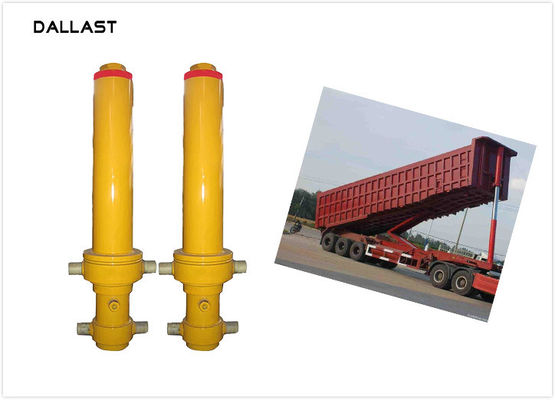

ISO9001 Certification Dump Trailer Hydraulic Cylinder Welded Plunger Long Stroke

ISO9001 Certification Dump Trailer Hydraulic Cylinder Welded Plunger Long Stroke

    • ISO9001 Certification Dump Trailer Hydraulic Cylinder Welded Plunger Long Stroke
    • ISO9001 Certification Dump Trailer Hydraulic Cylinder Welded Plunger Long Stroke
    • ISO9001 Certification Dump Trailer Hydraulic Cylinder Welded Plunger Long Stroke
  • ISO9001 Certification Dump Trailer Hydraulic Cylinder Welded Plunger Long Stroke

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet or as your requirements
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, L/C, D/P
    Supply Ability: 1 Piece Per Year
    Contact Now
    Detailed Product Description
    Hardness: HRC 45-55 Acting Way: Single Acting
    Power: Hydraulic Delivery Time: 15-25 Days
    Trademark: DALLAST Available Temperature: -40℃ To 80℃
    High Light:

    dump truck hydraulic ram

    ,

    dump truck telescopic cylinder

    Single Acting Welded Plunger Long Stroke Dump Trailer Hydraulic Cylinder​





    Hydraulic Cylinder:

    Hydraulic cylinder is both for single or double-acting applications with heavy duty welded construction. Cylinder’s standard color is black, orange or as per requirements. In addition, all seals are manufactured to US specification, and being 100% hydro-pressure tested before delivery. Rod surface treatment is for chrome plated or as per requirement. Hydraulic cylinder’s standard is B type piston (optional: A type piston).

    Hydraulic cylinders are an important industrial tool used in machinery, manufacturing, and a number of other functions. The basic design of a hydraulic cylinder has changed a little over the years. Hydraulic cylinders have enormous push/pull power and can haul, dig, push, drill, and move heavy objects and materials. The work by exploiting the mechanics of pressure exerted on the piston. The force is equal to the surface area multiplied by pounds per square inch of pressure.



    Three Advantages for Hydraulic Cylinder:

    Longer serve life.

    By optimizing the structure design and reduce bore, increase limit buffer design, reduce the system pressure

    fluctuations and pressure shock, extend the service life of the parts of the lifting hydraulic system!

    More strong stability.

    Stability optimization design, improve the long box lifting high stability, reduce rollover risk!

    Lift More.

    Compared with other products with lift lifting 15%~20%. Lift larger, more loading more returns! Lighter weight, lift larger, more light!



    Parameter:



    Single Acting Welded Plunger Long Stroke Dump Trailer Hydraulic Cylinder



    Model Extended
    Stages
    Working Pressure Max. stage Max. stroke Lifting
    Capacity
    Suitable Length of Truck Body
    (MPa) Diameter(mm) (mm) (ton) (m)
    129-3E-3880 3 16-19 129 3880 20-35 5.2
    149-3E-3880 3 16-19 149 3880 25-45 5.2
    149-3E-4280 3 16-19 149 4280 25-45 5.6
    149-4E-3880 4 16-19 149 3880 25-40 5.2
    149-4E-4280 4 16-19 149 4280 25-40 5.6
    169-4E-4280 4 16-19 169 4280 30-50 5.2-5.6
    169-4E-4640 4 16-19 169 4640 32-55 5.6-6.1
    169-4E-5000 4 16-19 169 5000 32-60 6.2-6.8
    169-4E-5180 4 16-19 169 5180 32-60 6.2-6.9
    169-4E-5390 4 16-19 169 5390 32-60 6.2-6.9
    185-4E-4640 4 16-19 185 4640 30-45 5.6-6.1
    185-4E-5000 4 16-19 185 5000 32-50 6.2-6.5
    185-4E-5390 4 16-19 185 5390 40-60 6.2-6.8
    185-4E-5460 4 16-19 185 5460 40-65 6.5-7.3
    191-5E-5780 5 16-19 191 5780 40-70 6.9-7.7
    191-5E-6200 5 16-19 191 6200 45-80 7.3-8.2
    191-5E-7130 5 16-19 191 7130 50-85 7.8-8.5
    191-5E-9030 5 16-19 191 9030 55-90 10.0-11.0
    Low MOQ We are always ready for providing the sample and producing some small orders, in order to meet the business well.
    OEM Accepted We can make the products with the client's demand standard or the custom requirement.
    Complete Service We are always ready to hear from you, be responding to your inquiry immediately. Our trade manager is always online for you.
    High Quality We have strict quality control system and amounts of testing equipment for different kind of castings, such as size, hardness, chemical components, Roughness, etc.
    Quality Assurance we promise that the minimum period quality assurance is one year. If the products have any problem on quality within this period, we all provide exchange service.
    Competitive Prices We are the foundry, having our own manufacturing workshop and providing the straight factory price and service to our customer.



    FAQ:

    Questions: Answers:
    Q1: Are you a manufacturer or a trader? We are manufacturer ,our own factory is located in Liaoning province, China.
    Q2: How do you protect customer's right? DALLAST's work habit is to sign confidential agreement with own/outside factories all the time before start any project.

    Q3: How long shall we get the quotation? Processing time for Enquiries :1-3 days.

    Q4: How long have you been in Hydraulic Cylinder industry?

    Our factory is built in year 2002 .
    Q5: How about the warranty and after-sale service?

    One year warranty, and we can offer you long-distance after-sale service 7*24h



    Product Show:

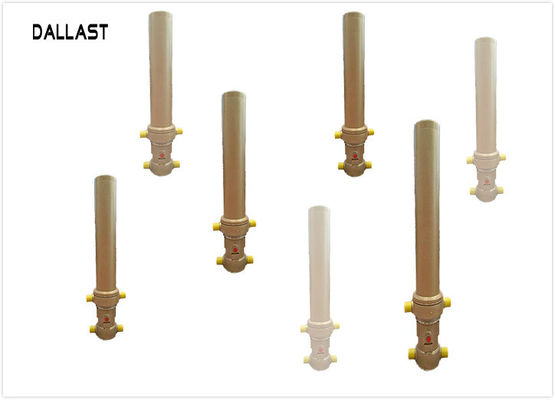

    ISO9001 Certification Dump Trailer Hydraulic Cylinder Welded Plunger Long Stroke
