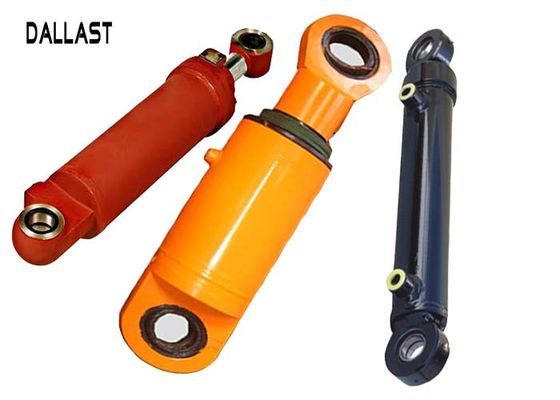

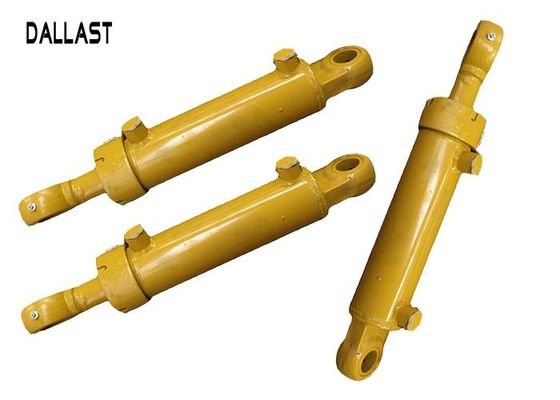

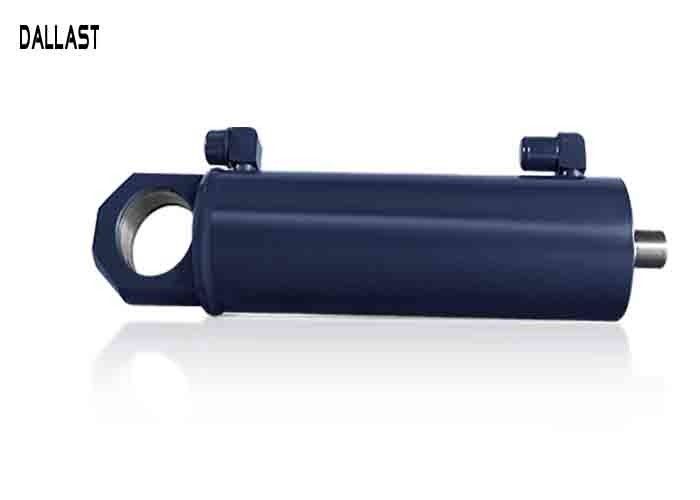

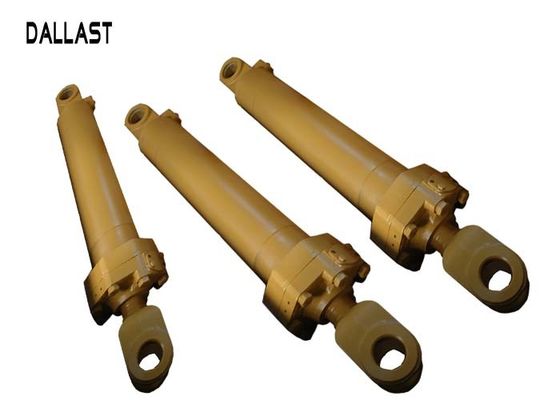

HSG Series Double Acting Hydraulic Ram with Piston Chrome Rod , Double Acting Ram Cylinder

HSG Series Double Acting Hydraulic Ram with Piston Chrome Rod , Double Acting Ram Cylinder

    • HSG Series Double Acting Hydraulic Ram with Piston Chrome Rod , Double Acting Ram Cylinder
    • HSG Series Double Acting Hydraulic Ram with Piston Chrome Rod , Double Acting Ram Cylinder
    • HSG Series Double Acting Hydraulic Ram with Piston Chrome Rod , Double Acting Ram Cylinder
    • HSG Series Double Acting Hydraulic Ram with Piston Chrome Rod , Double Acting Ram Cylinder
  • HSG Series Double Acting Hydraulic Ram with Piston Chrome Rod , Double Acting Ram Cylinder

    Product Details:

    Place of Origin: China
    Brand Name: DALLAST or on request
    Certification: GS, RoHS, CE, ISO9001
    Model Number: customied

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 20-30 work days or on request
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Operating Pressure: 10-35 MPa Temperature: Normal Or High Temperature
    Piston Design: Custom Painted: Custom
    Rod Diamwter: Custom Warranty: One Year
    High Light:

    double acting ram cylinder

    ,

    dual action hydraulic ram

    Hydraulic Ram of HSG Series Double Acting with Piston Chrome Rod for Heavy Duty



    Introduction:

    What's double action cylinder?

    A double action hydraulic cylinder can move along the horizontal (x-axis) plane, the vertical (y-axis) plane or along any other plane of motion. This design uses pressurized hydraulic fluid to extend and retract the piston rod. This requires fluid ports at both ends of the actuator in order for the oil to be directed onto both sides to the piston.



    HSG cylinder:

    Heavy duty hydraulic cylinder HSG series double acting single piston rod hydraulic cylinder, according to the use function is divided into : steering cylinder, boom cylinder, lifting cylinder, tilt cylinder and quick change cylinder, has the characteristics of connecting mode diversification and buffer device etc..



    Application:

    1. Engineering oil cylinder series;

    2. Metallurgy oil cylinder series;

    3. Turn over plow oil cylinder series;

    4. Reaper oil cylinder series;

    5. Excavator oil cylinder series;

    6. Lift platform cylider;



    HSG series hydraulic cylinder
    models

    capacity

    (ton)

    stroke

    (mm)

    bore

    (mm)

    the diameter of rod

    (mm)

    pressure

    (MPa)

    push

    (KN)

    tension

    (KN)

    HSGK01-160/90E-131 3 715 160 90 12 321.7 219.9
    HSGL01-100/60E-131 34 1200 100 60 23 125.66 87.65
    HSGK01-80/50E-131 45 700 80 50 12 101.79 70.37
    HSGK01-80/50E-131 23 640 80 50 10 101.79 70.37
    HSGK01-80/50/E-131 12 550 80 50 11 101.79 70.73
    HSGL01-80/50E-131 43 500 80 50 14 80.43 54.98
    HSGL01-80/50E-131 54 440 80 50 15 80.43 43.41
    HSGL01-63/35E-131 21 200 63 35 16 50 34.5
    HSGL01-63/35E-131 12 300 63 35 17 50 34.5
    HSGL01-50/28E-131 32 140 50 28 18 31.42 21.56
    HSGL01-50/30E-131 32 140 65 30 13 30.09 21.12



    Features:

    1. Many mounting styles.

    2. Several bore sizes and in varying strokes.

    3. Cylinders are designed for normal or high operating pressures.

    4. Many of these sizes are available for immediate delivery.

    5. The operating temperature (oil and ambient) is -30 to +80 degrees Celsius, but the unit should not be used when oil is frozen.

    6. Stronger weather resistance: The application new materials and special structures can adapt to different environment from cold to hot and can round-clock operation.

    7. Rigid welded construction, high tensile welded steel end mounts, threaded gland and quality seals allow industrial cylinders to work in harsh conditions.

    8. Speed range: Speed range of operation (excluding cushion parts) is less than 200mm/s. In accordance with customer requirements, the maker can also supply other ranges of speed.

    9. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.



    Quality control:
    1. Seiko secret agents, to ensure quality of the piston rod.
    2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
    3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.



    We offer OEM, ODM. If you needed, please feel free to contact us and send us the drawings:



    HSG Series Double Acting Hydraulic Ram with Piston Chrome Rod , Double Acting Ram Cylinder

    HSG Series Double Acting Hydraulic Ram with Piston Chrome Rod , Double Acting Ram Cylinder
