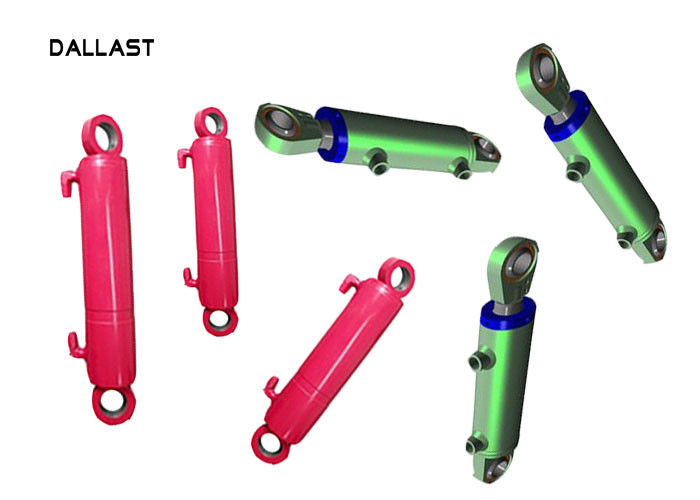

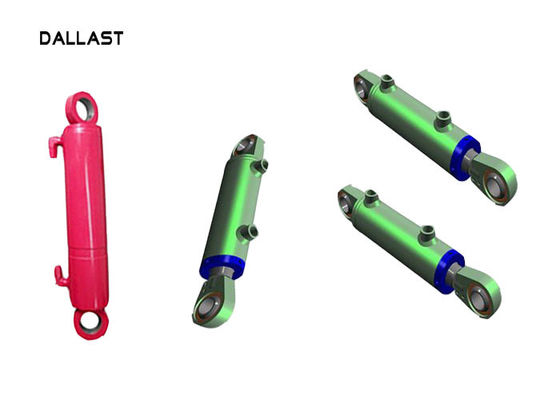

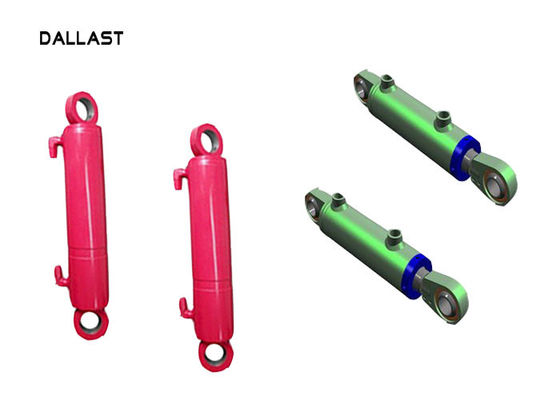

4 Foot Piston Welded Double Acting Hydraulic Ram Cylinder 14 Stroke

4 Foot Piston Welded Double Acting Hydraulic Ram Cylinder 14 Stroke

    • 4 Foot Piston Welded Double Acting Hydraulic Ram Cylinder 14 Stroke
    • 4 Foot Piston Welded Double Acting Hydraulic Ram Cylinder 14 Stroke
    • 4 Foot Piston Welded Double Acting Hydraulic Ram Cylinder 14 Stroke
  • 4 Foot Piston Welded Double Acting Hydraulic Ram Cylinder 14 Stroke

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Type: Double Acting Hydraulic Cylinder Standard: Standard
    Rod Seal: Polyurethane U-Cup Maximum Stroke: Requirements
    Color: Any Color Body Material: Stainless Steel
    High Light:

    dual action hydraulic cylinder

    ,

    heavy duty hydraulic cylinde

    4 Foot Piston Welded Double Acting Hydraulic Ram Cylinder 14 Stroke



    Product Application
    DALLAST Hydraulics’ construction grade cylinders are designed for extreme duty applications.



    They have a high cycle fatigue resistance, forged end mounts, chrome plating, and induction hardened rod.

    A bolted head design allows for easier serviceability, and the buffer seals help to extend rod seal life.



    This cylinder is ideal for applications in construction, earth moving, forestry, demolition, and mining.



    About us
    We are a manufacturer of Multi Stage Hydraulic cylinder with well-equipped testing facilities and strong technical force. With a wide range, good quality,reasonable prices and stylish designs, our products are extensively used in cylinder and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!

    Designed For Double-acting
    Max inner tube 170mm,180mm,195mm,200mm,210mm,etc
    Mounting distance 325mm/345mm/425mm or as cutstomers’requirements
    Working Pressure 16Mpa-50Mpa
    Stroke 750mm-7200mm
    Tipping Weight 35-68Ton
    Seal Type Parker,NOK, BUSAK SHAMBAN or as customer's requirement
    Piston Rod Chrome or nickel plated,ground & polished piston rod
    Tube High tensile cold drawn tube, precision honed for extended seal life



    Main Features
    1) High Cycle Fatigue Resistance.

    2) Friction Welded Rod Mounts Available.

    3) Forged End Mounts.

    4) Chrome Plated and Induction Hardened Rod.

    5) Precision Wear Rings on Piston and Rod .

    6) 4 Piece High Pressure Piston Sealing System

    7) 5000 psi (345 bar) Continuous



    If you require our engineer to make a design, pls advise us the following specification:



    1. Rated pressure

    2. Working pressure

    3. Test pressure

    4. Working condition and environment, for example, temperature, working frequency

    5. Pulling force, and return stroke force

    6. Pulling and return speed

    7. Assembly size

    8. Seal ring requirements. For example, brand, seal material etc.

    9. Tube and piston rod raw material requirements

    10. Piston rod surface treatment requirements, for example chromatin film thickness,

    Surface hardness etc.

    11. Painting and other spare parts requirements.



    Transaction details
    MOQ: 10 pcs Standard Hydraulic Cylinder

    Package: Wooden case packing
    Payment Terms: 30% or 50% deposit, the rest L/C, T/T or Paypal before shipment
    Delivery: 30 days
    Shipping: By air, by express, by train, by sea



    Why do you choose us?



    Strict Quality Control

    For each order, strict inspections will be put in place for each procedure during their processing. The negative products will be ironed out before shipping

    Stable suppliers

    We have cooperated with many accessory suppliers for many years, so we can get cheaper and high quality accessories and thus we can give you a low price and high quality products.

    Smooth Shipping

    We have partnership with excellent shipping forwarders, therefore we can promise fast delivery and have the goods well protected.

    Customers from all over the world

    We have enough experience about foreign trade and our clients can be found in many countries such as USA , Canada, Australia, Japan, Italy, Germany and so on

    4 Foot Piston Welded Double Acting Hydraulic Ram Cylinder 14 Stroke
