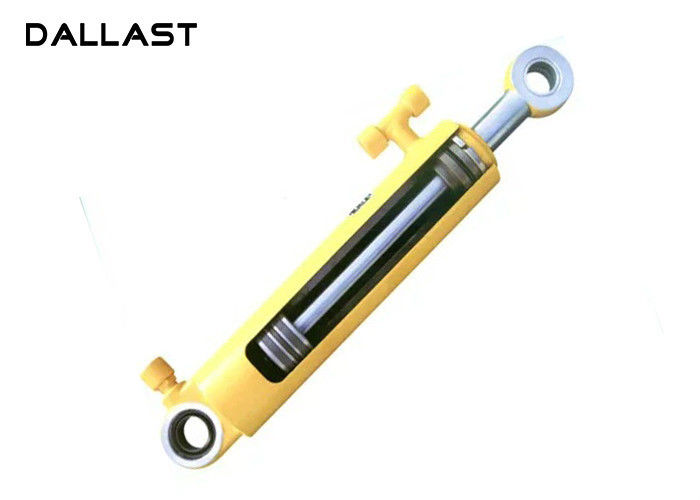

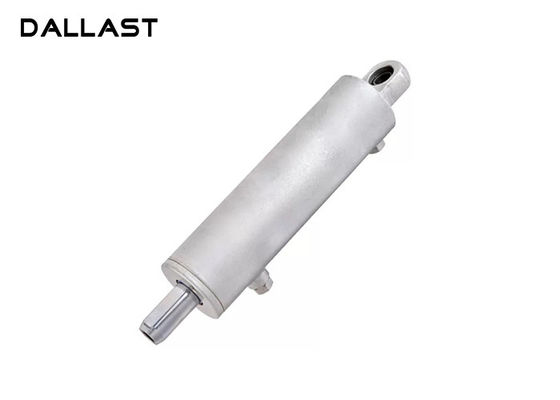

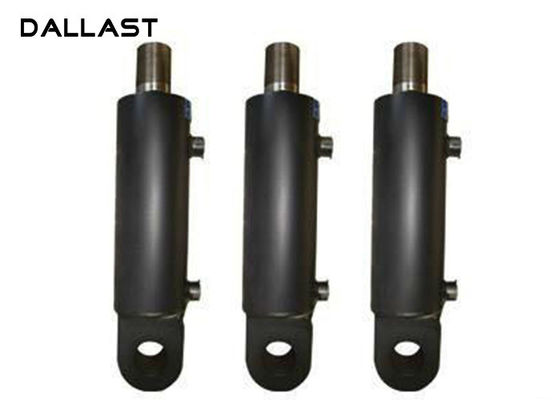

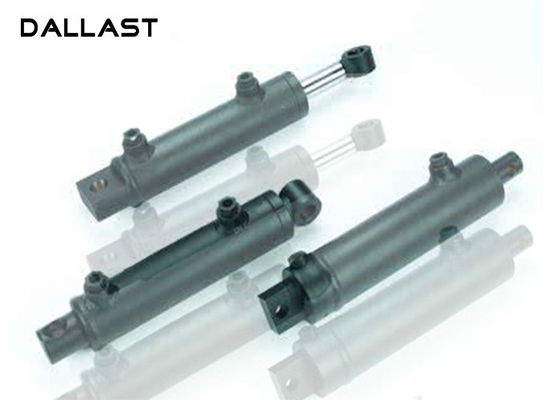

Double Acting Custom Small Hydraulic rams Cylinders Design Piston

Double Acting Custom Small Hydraulic rams Cylinders Design Piston

    • Double Acting Custom Small Hydraulic rams Cylinders Design Piston
    • Double Acting Custom Small Hydraulic rams Cylinders Design Piston
    • Double Acting Custom Small Hydraulic rams Cylinders Design Piston
    • Double Acting Custom Small Hydraulic rams Cylinders Design Piston
  • Double Acting Custom Small Hydraulic rams Cylinders Design Piston

    Product Details:

    Place of Origin: Shandong
    Brand Name: DALLAST
    Certification: GS CE ISO9001-2009 TS16949
    Model Number: Standard , Non-standard

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiable
    Packaging Details: shrink film, pallet, plywood case and carton box
    Delivery Time: 20- 25 days after down payment
    Payment Terms: T/T, L/C, Western Union,paypal
    Supply Ability: 50000PCS per year
    Contact Now
    Detailed Product Description
    Product Name: Precision Hydraulic Cylinder Work Temperature: -30ºC~100ºC
    Working Method: Straight Trip Mounting Style: Earrings, Flange, Foot Mounting, Screw Thread
    Model: Many Types ,OEM Seal: Parker, Merkel, Hallite, Kaden
    High Light:

    large bore hydraulic cylinder

    ,

    marine hydraulic cylinders

    Double Acting Custom Small Hydraulic rams Cylinders Design Piston for sale



    Cylinder Details:
    1. Mounting type: trunnion, flange, earring, according to your demand;
    2. Seal: use Parker, NOK and other famous seal parts to ensure the quality.
    3. Piston rod: 20#, 45# steel with high frequency quenching;
    4. Buffer function: you can choose to design with adjustable buffer to avoid impact of cylinder;
    5. Size: bore:20-500mm(7/8"- 20"); stroke can reach to 3000mm;



          We are giving the best quality Hydraulic Cylinder to our various clients across the world. To manufacture the hydraulic cylinder we are maintaining high level infrastructure without any compromise. We have different kinds of Hydraulic Cylinders.



    Type Engineering Hydraulic Cylinder
    Max. Stroke 3000mm
    Bore Diameter 40 ~ 1000mm
    Rod Diameter 22-480MM



    Special Non-standard large diameter, long stroke hydraulic cylinder can customized for you.



    HSG series hydraulic cylinder for construction machinery
    Model

    Pressure

    (MPa)

    Strock
    (mm)
    Bore Diameter
    (mm)
    Rod Diamter
    (mm)
    Push(KN) Pull(KN)
    HSGK01-160/90 16 715 160 90 321.7 219.9
    HSGL01-100/60 16 1200 100 60 125.66 87.65
    HSGK01-80/50 16 700 80 50 101.79 70.37
    HSGL01-80/50 16 500 80 50 80.43 54.98
    HSGL01-63/35 16 300 63 35 50 34.5
    HSGL01-50/28 16 140 50 28 31.42 21.56




          Piston hydraulic cylinder can be divided into single-rod and double-rod two structures, the fixed way by the cylinder fixed and fixed piston rod two, according to the role of hydraulic pressure has a single role and double-acting. In a single role in the hydraulic cylinder, the pressure oil is only provided in a cavity of the hydraulic cylinder, which realizes unidirectional movement of the cylinder by hydraulic pressure and external force (such as spring force, self-weight or external load) in the opposite direction; and the double-acting hydraulic cylinder piston movement in both directions alternately into the two chambers through the oil, the role of hydraulic pressure to complete, it is only one side of the piston with a piston rod, so the effective area of ​​the two chambers are different. In the oil the same amount, the different chamber into the oil, the piston speed of movement is different; in the same load force to be overcome, the different chamber into the oil, the required oil pressure is different, or set in the system pressure, sanitation Garbage truck hydraulic cylinder movement in both directions can overcome the load force is different.



    Double Acting Custom Small Hydraulic rams Cylinders Design Piston
