| Place of Origin: | Shandong, China |
| Brand Name: | Dallast |
| Certification: | Gs, RoHS, Ce, ISO9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Box or Pallet or as your requirements |
| Delivery Time: | 15-25 Days |
| Payment Terms: | T/T, Western Union, L/C, D/P |
| Supply Ability: | 1 Piece Per Year |
| Acting Way: | Single Acting | Pressure Environment: | Medium Pressure |
|---|---|---|---|
| Certification: | Gs, RoHS, Ce, ISO9001 | Hardness: | HRC 45-55 |
| Adjusted Form: | Regulated Type | Color: | Any Color |
| High Light: | multi stage telescopic hydraulic cylinder,hollow hydraulic cylinder |
||
Single Acting Multi Stage Telescoping Agricultural Truck Hydraulic Cylinders
Hydraulic Cylinder:
Hydraulic cylinders are an important industrial tool used in machinery, manufacturing, and a number of other functions. The basic design of a hydraulic cylinder has changed little over the years. Hydraulic cylinders have enormous push/pull power and can haul, dig, push, drill, and move heavy objects and materials. The work by exploiting the mechanics of pressure exerted on the piston. The force is equal to the surface area multiplied by pounds per square inch of pressure.
Cylinder and Cylinder of the Advantages and Disadvantages:
1. As the hydraulic system uses pressure is generally in the range of 0.2-1.0Mpa, so the cylinder is the driving force can not do high-power components. Hydraulic cylinders can be done relatively large power device, use the hydraulic system;
2. From the media about the air can be unlimited, no cost and supply difficulties, the gas will be used directly into the atmosphere, convenient, no pollution, hydraulic oil is the opposite;
3. The air viscosity is small, the resistance to less than the hydraulic oil;
Parameter:
| Single Acting Multi Stage Telescoping Agricultural Truck Hydraulic Cylinders | ||||||
| Model | Lifting. (T) | Pressure (Mpa) |
Seal height (mm) |
Cylinder capacity (L) |
Suitable container length (mm) | Rear overhang (mm) |
| 3TG-E152×3830 | 29 | 16 | 1618 | 59 | 5200-5400 | 800 |
| 3TG-E152×4000 | 29 | 16 | 1675 | 62 | 5400-5600 | 800 |
| 4TG-E152×4270 | 29 | 16 | 1414 | 58 | 5600-5800 | 800 |
| 4TG-E152×4270 | 29 | 16 | 1509 | 63 | 5800-6200 | 800 |
| 4TG-E152×4270 | 29 | 16 | 1597 | 67 | 6200-6400 | 800 |
|
The product can be used on agricultural handling equipment ,such as agricultural tractors, agricultural carriage car, agricultural fork lift truck. |
||||||
Warranty and Guarantee:
1. All the goods are inspected before shipment, so if you are not satisfied with the purchase, you can exchange the items in one week and you must contact us within 24 hours of the receipt of your purchase
2. The shipping and handling charge is not refundable and customer should be responsible for all the charges of returning and reshipping.
3. All return items must be in its original conditions, including box and accessories. Men made defects are not guaranteed, such as broken, scratched and so on.
4. For any items,please send by EMS or your local post when send back.
Other Policies:
1. We are not responsible for any custom duty or import tax.
2. Please leave POSITIVE FEEDBACK after receiving the goods if you are satisfied with our products and service. And we will do the same. Please contact us if you are not satisfied with the item after receive it, we will try our best efforts to support you.
3. All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email and we will try to reply to you as soon as possible.
4. Serious Buyer Only! Please place bid only if you agree with all the terms.

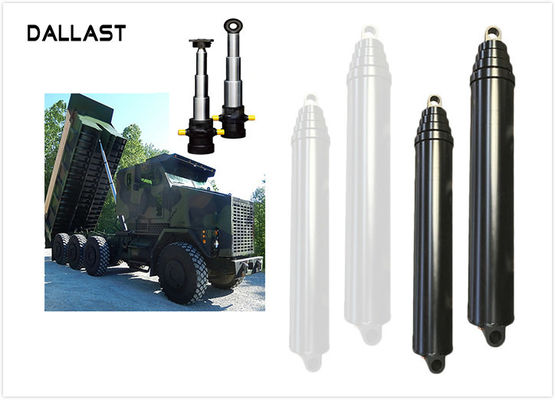

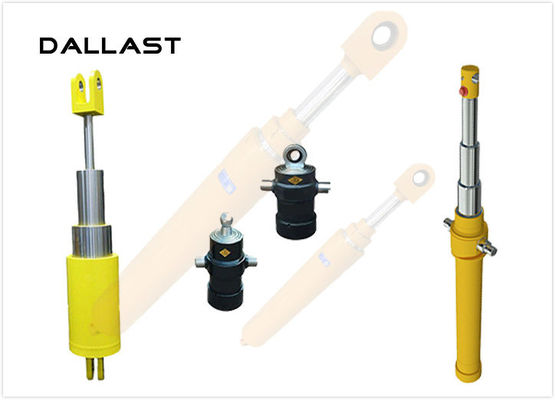

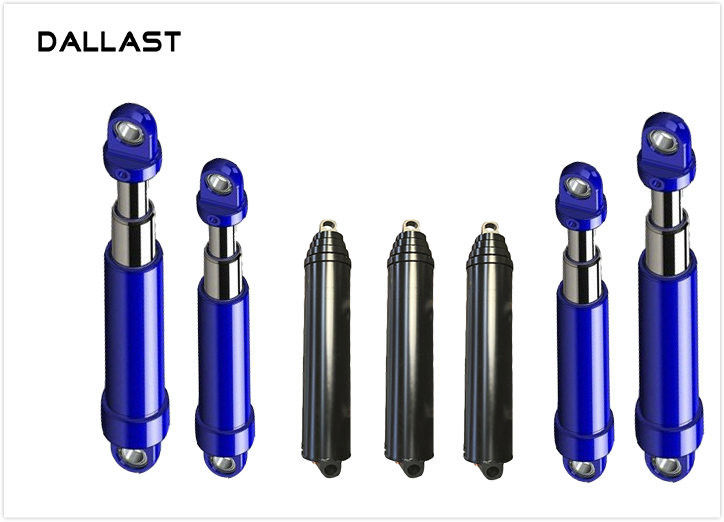

Product Show:
