1 Acting Truck Hydraulic Lift Cylinder Heavy Duty Concrete Pump , Hydraulic Oil Cylinder

1 Acting Truck Hydraulic Lift Cylinder Heavy Duty Concrete Pump , Hydraulic Oil Cylinder

    • 1 Acting Truck Hydraulic Lift Cylinder Heavy Duty Concrete Pump , Hydraulic Oil Cylinder
    • 1 Acting Truck Hydraulic Lift Cylinder Heavy Duty Concrete Pump , Hydraulic Oil Cylinder
    • 1 Acting Truck Hydraulic Lift Cylinder Heavy Duty Concrete Pump , Hydraulic Oil Cylinder
  • 1 Acting Truck Hydraulic Lift Cylinder Heavy Duty Concrete Pump , Hydraulic Oil Cylinder

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Adjusted Form: Regulated Type Material: Steel
    Pressure: Middle Pressure Sample: Available
    Capacity: OEM,ODM,Sample Color: Optional
    High Light:

    hydraulic lift ram

    ,

    crane hydraulic cylinder

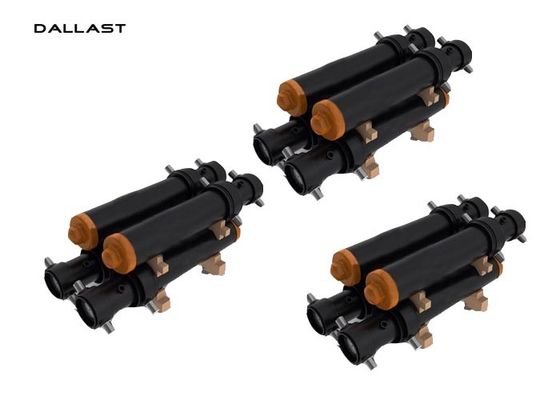

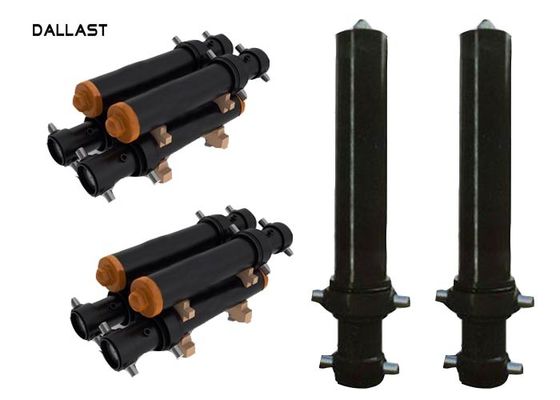

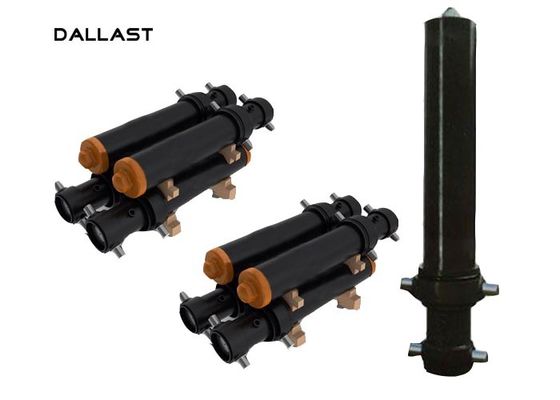

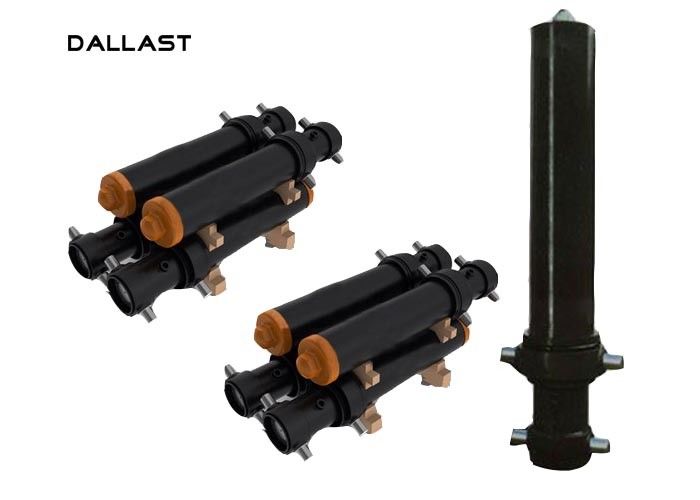

    Single Acting Heavy Duty Concrete Pump Truck Cylinder Hydraulic Lift Cylinder



    Material of cylinder barrels: based on calculation of loading and yielding point strength, the cylinder adopts 20MnTiB to adjust the material so that its tensile strength(σb/Mpa):>=1130, yield point(σs/Mpa):>=930 and the barrel wall thickness can be reduced to its lowest point and thus reduce the weight of the cylinder.



    Material of piston and guide: the use of 7075 aluminum alloy can maintain its strength while reduce its weight.



    Welding: it adopts such processes as weld preheating, infrared temperature monitoring and post weld treatment, and uses ultrasonic inspection to prevent weld defect.



    Selection of sealing parts: the sealing parts uses PARKER sealing gasket imported from America and BUSAK SHAMBAN supporting ring to ensure the sealing performance of the cylinder and a stable quality.



    MODEL NO. Largest Sleeve OD Closed length Mounting distance
    DALLAST FC-3-107-2855 152mm 1268mm 311mm
    DALLAST FC-3-107-3115 152mm 1368mm 311mm
    DALLAST FC-3-107-3265 152mm 1418mm 311mm
    DALLAST FC-3-107-3415 152mm 1468mm 311mm
    DALLAST FC-3-107-3715 152mm 1568mm 311mm
    DALLAST FC-3-126-3230 219mm 1403mm 343mm
    DALLAST FC-3-126-3680 219mm 1553mm 343mm
    DALLAST FC-3-126-3830 219mm 1603mm 343mm
    DALLAST FC-3-126-4400 219mm 1803mm 343mm
    DALLAST FC-4-126-4145 219mm 1357mm 343mm
    DALLAST FC-4-126-4345 219mm 1407mm 343mm
    DALLAST FC-4-126-4545 219mm 1457mm 343mm
    DALLAST FC-4-126-4745 219mm 1507mm 343mm
    DALLAST FC-4-126-4945 219mm 1557mm 343mm
    DALLAST FC-4-126-5145 219mm 1607mm 343mm
    DALLAST FC-4-145-4110 219mm 1357mm 343mm
    DALLAST FC-4-145-4310 219mm 1407mm 343mm
    DALLAST FC-4-145-4510 219mm 1457mm 343mm
    DALLAST FC-4-145-4710 219mm 1507mm 343mm
    DALLAST FC-4-145-4910 219mm 1557mm 343mm
    DALLAST FC-4-145-5110 219mm 1607mm 343mm
    DALLAST FC-4-145-5310 219mm 1657mm 343mm
    DALLAST FC-4-145-5865 219mm 1807mm 343mm
    DALLAST FC-4-165-4110 244mm 1347mm 343mm
    DALLAST FC-4-165-4510 244mm 1447mm 343mm
    DALLAST FC-4-165-4710 244mm 1497mm 343mm
    DALLAST FC-4-165-4910 244mm 1547mm 343mm
    DALLAST FC-4-165-5110 244mm 1597mm 343mm
    DALLAST FC-4-165-5310 244mm 1647mm 343mm
    DALLAST FC-4-165-5865 244mm 1797mm 343mm



    Longer Working Life

    DALLAST Highway Heavy-duty Series of hydraulic cylinder adopts a brilliant structural design and the adding of limit valve, which reduces the system pressure fluctuation and the impact of pressure so that the working life of different parts of the lifting system can be expanded.

    Higher Stability

    DALLAST Highway Heavy-duty Series of hydraulic cylinder adopts stability optimization design to improve the stability of the body so that the risk of rollover can be drastically cut down.

    Greater Lifting Force

    Compared with other series of cylinder, the DALLAST Highway Heavy-duty Series can improve its lifting force by 15%-20%, which enables the truck to carry more cargo and thus brings more benefits for its owner! Its lighter deadweight and greater lifting force make it to move faster!



    Features

    Please read these following details and tell us if you want different specifications and designs.
    Bore: Standard, Customized
    Inside Diameter: Standard, Customized
    Stroke: Standard, Customized
    Pulling force and return stroke force: Standard, Customized
    Painting: Standard, Customized
    Tube / Piston / Other Raw material requirements: Standard, Customized
    Seal ring requirements: Standard , Customized



    FAQ:

    How about the payment terms?
    We usually accept T/T. other terms also could be negotiated.



    What is your minimum order?
    It depends on what you are buying. Normally, our minimum order is USD5000.



    What is your delivery time?
    FOB Qingdao or any Chinese port : 20 days . If there are any parts in stock , our delivery time is only 15-20 days.



    What about Quality Control?
    We have a perfect QC system for the perfect products. A team who will detect the product quality and specification piece carefully, monitoring every production process until packing is complete, to ensure product safety into container.
