John Deere 2 Way Long Stroke Hydraulic Cylinder For Dumper Trailer

John Deere 2 Way Long Stroke Hydraulic Cylinder For Dumper Trailer

    • John Deere 2 Way Long Stroke Hydraulic Cylinder For  Dumper Trailer
    • John Deere 2 Way Long Stroke Hydraulic Cylinder For  Dumper Trailer
    • John Deere 2 Way Long Stroke Hydraulic Cylinder For  Dumper Trailer
  • John Deere 2 Way Long Stroke Hydraulic Cylinder For  Dumper Trailer

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Adjusted Form: Regulated Type Place Of Origin: Shandong China
    Pressure: Middle Pressure Material: Hard Chrome Piston Rod
    Factory Visit: Available Seals: Hallite, NOK
    High Light:

    hydraulic lift ram

    ,

    crane hydraulic cylinder

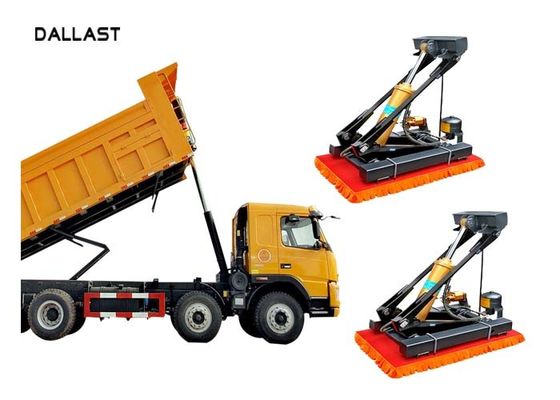

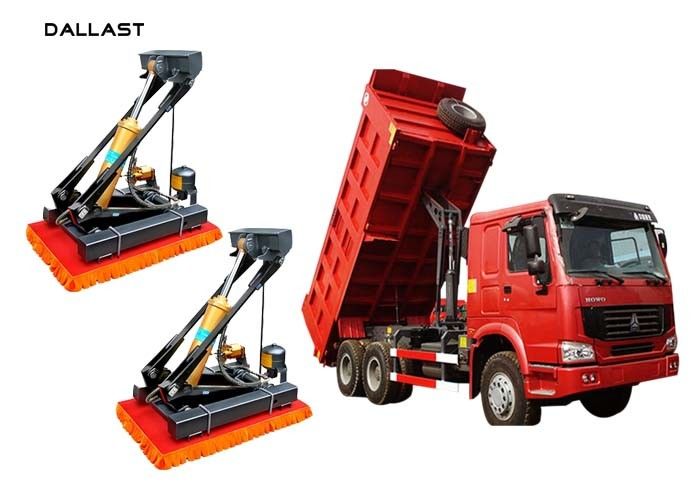

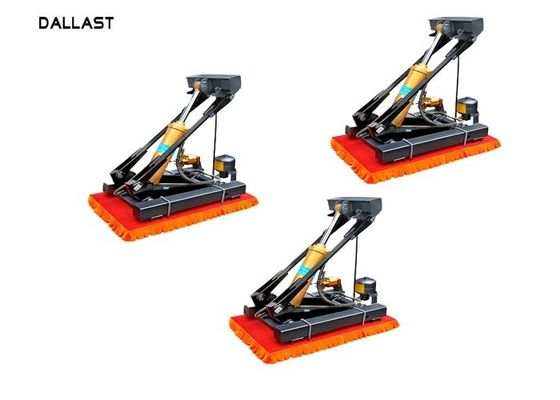

    John Deere 2 Way Long Stroke Electric Hydraulic Hoist Cylinder For Dump Trailer



    Hoist Mechanism, dimensions and weight



    Models

    Length

    Width(mm)

    Height(mm)

    Min closed length(mm)

    Weight(kg)

    KEM-92 dump hoist 1120 528 350 749 122
    KRM-143 dump hoist 1193 410 341 794 179
    KRM-160S dump hoist 1434 500 60 992 252
    KRM-160C dump hoist 1722 525 430 1152 298
    KRM-183 dump hoist 1740 592 541 1175 464
    KRM-200A dump hoist 1843 606 470 1232 504
    KRM-201 dump hoist 1886 590 476 1275 515
    KRM-220 42’’ dump hoist 1870 620 500 1226 518
    KRM-220 62’’dump hoist 2600 620 525 1725 760
    KRM-220 68’’dump hoist 2945 690 516 1956 910



    Material: Steel
    Structure: General Cylinder
    Standard: Nonstandard
    Double-Acting Cylinder Type: Common Cylinder
    Cylinder Diameter: 200mm
    Pressure: 220bar
    Trademark: DALLAST
    Origin: China
    Usage: Automation and Control
    Power: Hydraulic
    Pressure Direction: Double-acting Cylinder
    Name: Linear Hydraulic Cylinders
    Stroke: 1936mm
    HS Code: 841221000, 841221000
    Specification: Steel



    We offer to sell:
    1. Piston seals: in different standard profiles and sizes , materials used are: ptfe-brz/nbr/fpm; pu; nbr; ptfe-brz/m0s2/pom; fabric=nbr/fpm, etc.

    2. Rod seals: same as piston seals

    3. Guide rings: materials used are: fabric/polyster, ptfe; fabric/phenol ; glass-polyamide; ptfe-br-mos2; ; polyacetal, etc.

    4. Dust seals/ wipers: in standard profiles and different sizes. materials used are: nbr; fpm; pu; nbr=metal; fpm=metal; pu=metal; etc.



    5. 'o' rings and back - up rings , all standard sizes 'o' rings as per int'l standards in metric and inch sizes . materials: nbr; fpm; silicon; pu.
    corresponding back-up available in 'ptfe ; pom; polyamide and polyester materials.



    6. Special profiles & sizes: enquiries are most welcome.



    A hydraulic cylinder is the actuator or "motor" side of this system. The "generator" side of the hydraulic system is the hydraulic pump which brings in a fixed or regulated flow of oil to the bottom side of the hydraulic cylinder, to move the piston rod upwards. The piston pushes the oil in the other chamber back to the reservoir. If we assume that the oil pressure in the piston rod chamber is approximately zero, the force on the piston rod equals the pressure in the cylinder times the piston area (F=PA) .

    The piston moves instead downwards if oil is pumped into the piston rod side chamber and the oil from the piston area flows back to the reservoir without pressure. The pressure in the piston rod area chamber is (Pull Force) / (piston area - piston rod area) .



    John Deere 2 Way Long Stroke Hydraulic Cylinder For  Dumper Trailer
