| Place of Origin: | Qingdao |
| Brand Name: | DALLAST |
| Certification: | GS, RoHS, CE, ISO9001 |
| Model Number: | custom |
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case, carton box |
| Delivery Time: | 15-25 work days per year |
| Payment Terms: | T/T, Western Union, D/P, D/A, L/C |
| Supply Ability: | 50000 pieces |
| Design: | Telescoping Cylinder | Direction: | Single Acting Cylinder |
|---|---|---|---|
| Pressure: | 30-350 Bar | Temperature: | Normal Temperature |
| Bore Size: | Custom | Material: | 27SIMN, 20#, Or On Request |
| High Light: | hydraulic lift ram,crane hydraulic cylinder |
||

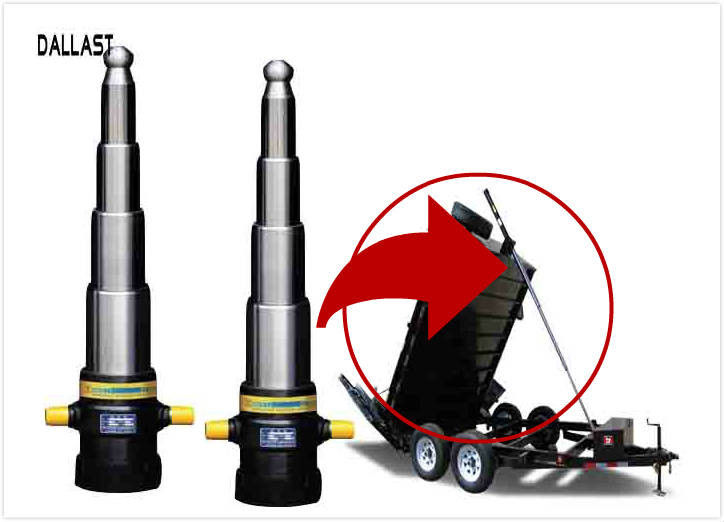

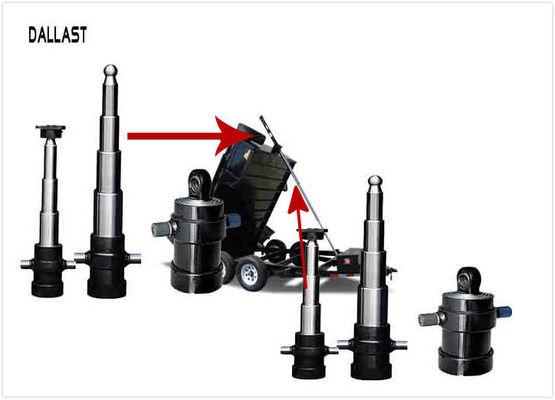

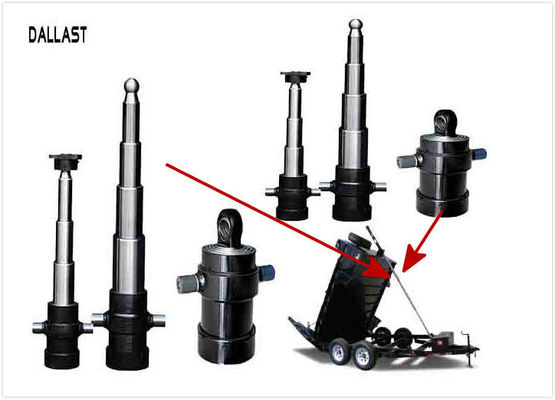

Single Acting Hydraulic Cylinder Lift for Truck Hinge Axis Vertical Telescoping
Single-acting cylinders transfer force and motion in one direction only. Acts on the piston to push the piston rod out.
Benefits:
When manufacturing multistage cylinders, the number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement. Cylinder designs include welded and screwed type, welded and bolted, fully bolted or tie rod or can take the form of your drawing entirely.
Improved quality system; doubled manufacturing and warehousing area; high quality products; very competitive price; great service; all cylinder products carry an 12 months warranty.
Application:dump trailers; aerial trucks; lift tables and the list goes on...
Main characteristics:
A. Small space occupation
B. Pre-assembled structure makes installation easier
C. Hydraulic overloading protection available
Piston rod:
All our piston rods are hard protection coated, such as hard chrome plate, or if required, can be coated with an alternative treatment more suitable to the application. High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters.
| Features: | |
| Structure | Single acting cylinders |
| Stage | 3~5 stage cylinder |
| Max inner tube | 170mm,180mm,195mm,200mm,210mm,etc |
| Mounting distance | 325mm/345mm/425mm or as customers’ requirements |
| Stroke | 750mm-7200mm |
| Tipping weight | 6-60 Ton |
| Seal type | Parker,NOK, BUSAK or as customer's requirement |
| Piston rod | Chrome or nickel plated,ground & polished piston rod |
| Pressure range | Could be customized |
| Piston Ø | Customized |
| Piston rod Ø | Customized |
| Mounting types | Customized |
| Max. stroke speed | According to the product types |
Quality control:
Every DALLAST single acting telescopic cylinder is individually tested before leaving our plant to assure proper performance and leak-free operation.Snap on glass filled bearings that absorb contaminants without damaging cylinder walls. Nylon tipped set screws that conform to packing nut threads to decrease the probability of packing nuts backing off.
The most common problems when selecting a hydraulic cylinder are as follows:
A. Retract dimension (Center of pin to center of pin)
B. Stroke length (Inches)
C. Mounting types
D. Port Size and Type (SAE or NPT)
E. Pressure rating (PSI)
F. Bore Diameter (Inches)
G. Application details
After-sales service:
1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
2. Pre-sale service and free consultation service.
3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
6. Service Center all over the world for after sales problems.
