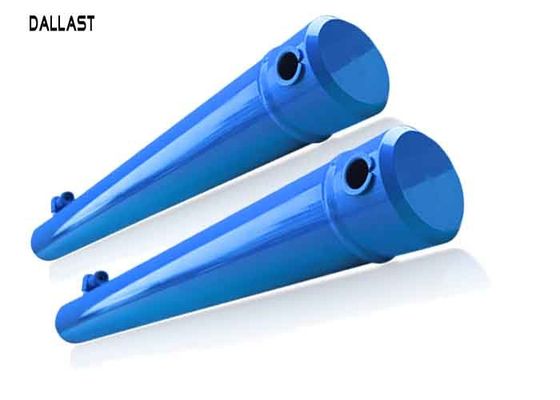

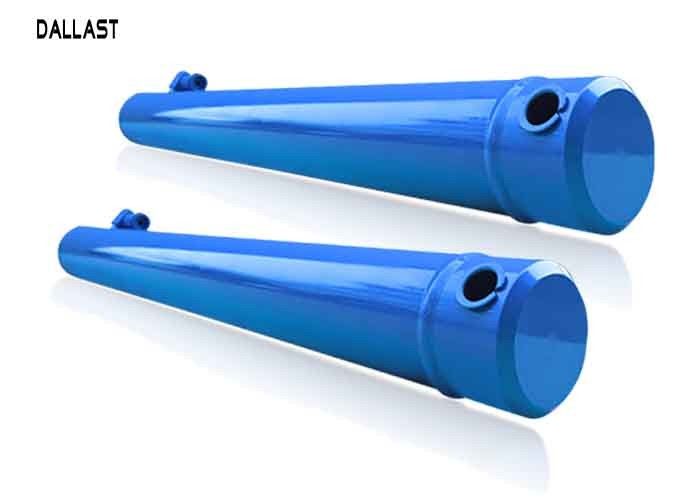

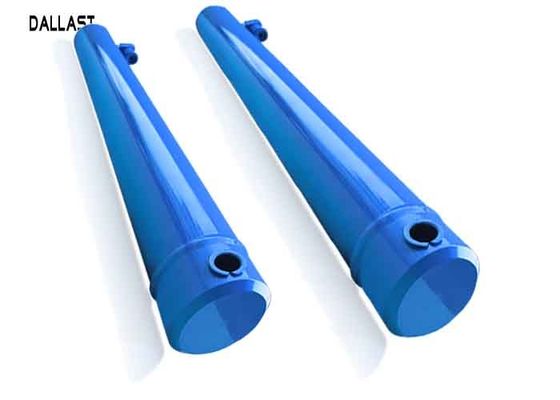

Long Stroke Hydraulic Lift Cylinder Small Bore for Mobile Lift Table

Long Stroke Hydraulic Lift Cylinder Small Bore for Mobile Lift Table

    • Long Stroke Hydraulic Lift Cylinder Small Bore for Mobile Lift Table
    • Long Stroke Hydraulic Lift Cylinder Small Bore for Mobile Lift Table
    • Long Stroke Hydraulic Lift Cylinder Small Bore for Mobile Lift Table
  • Long Stroke Hydraulic Lift Cylinder Small Bore for Mobile Lift Table

    Product Details:

    Place of Origin: China
    Brand Name: DALLAST or on request
    Certification: GS, RoHS, CE, ISO9001
    Model Number: customied

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 20-30 work days or on request
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Pressure: Normal Or High Pressure Material: Alloy Steel, 20#, 27Simn, Etc.
    Action Type: Double Acting Bore Size: Custom
    Stroke Length: Custom Temperature: Normal Temperature

    Standard Long Stroke Hydraulic Lift Cylinder Small Bore for Mobile Lift Table



    These lifts provide non-marking rough terraintires, platform work lights and pothole guards. constructed robustly to ensure the maximum and reliable performance, easy operation and installation.

    These lifts have extreme strength with working height of13.8 meters and lift capacity of up to 3 tons.



    Advantages:



    Operating pressure 10-35 MPa
    Bore size Bore 2"
    Stroke length Stroke 24"
    Rod size Rod 1.25"
    Retracted length Retracted 32"
    Extended length Extended 56"
    Mounting distance (mm) 100-1000 mm
    Capacity 1-5 ton



    - Pressure tested with ports sealed from the factory

    - Double acting cylinder

    - Cross tube mounting style

    - We offer 12 months warranty





    Please note that the regularly stocked cylinders above. If you are interested in our hydraulic cylinders for agricultural machinery, please feel free to contact our office and sent us your drawings to place an order for quick delivery.



    About piston rod:

     All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.



    Piston Seals:

    Low friction, high load piston seals with outboard wear bands are standard. Loaded lip seals and cast iron rings are optional.



    Tips:

    Do you need special cylinders?

    Our technicians will help you to design them and we will manufacture them according to your requirements.

    We offer OEM, ODM. If you needed, please feel free to contact us and send us the drawings.



    A. The drawing details are as follows.
    Bore size

    Stroke length



    Rod diameter

    Mounting type



    Mounting length

    Paint color requirement



    B. The product application description details

    1. Type of machine(loader, steer loader, excavator, and etc.)

    2. Type of function(hoist, swing, steering, and etc.)

    3. Type of structure(piston, telescopic)

    4. Single or double acting
    5. Operating pressure



    QC:

    The whole production procedure will be under regular inspection and strict quality control.

    The complete machine will be tested to make sure they can work very well before being out of factory.



    FAQ:

    Why choose us?

    1.Competitive prices based on good quality

    2.Various style for completely series hydraulic products for you to choose

    3.Good before-after service; one year warranty

    4. Low price

    5. OEM&ODM accepted

    6. Fast delivery

    Long Stroke Hydraulic Lift Cylinder Small Bore for Mobile Lift Table

    Long Stroke Hydraulic Lift Cylinder Small Bore for Mobile Lift Table







    Long Stroke Hydraulic Lift Cylinder Small Bore for Mobile Lift Table
