| Place of Origin: | Qingdao, China |
| Brand Name: | DALLAST |
| Certification: | GS, RoHS, CE, ISO9001 |
| Model Number: | custom |
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case, carton box |
| Delivery Time: | 15-25 work days per year |
| Payment Terms: | T/T, Western Union, D/P, D/A, L/C |
| Supply Ability: | 50000 pieces |
| Pressure Rating: | Ranging From 10-35 MPa | Temperature: | Normal Temperature |
|---|---|---|---|
| Bore Diameter: | Custom | Color: | Red, Or On Request |
| Piston Rod: | Custom | Rod Size: | Custom |
| High Light: | garbage truck hydraulic cylinders,crane hydraulic cylinder |
||

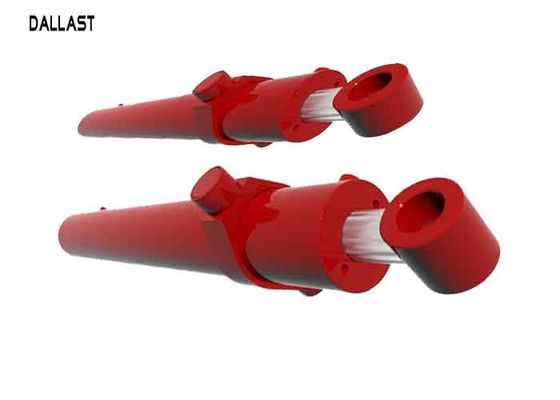

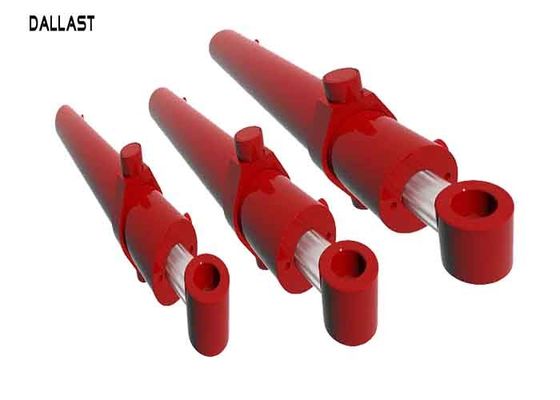

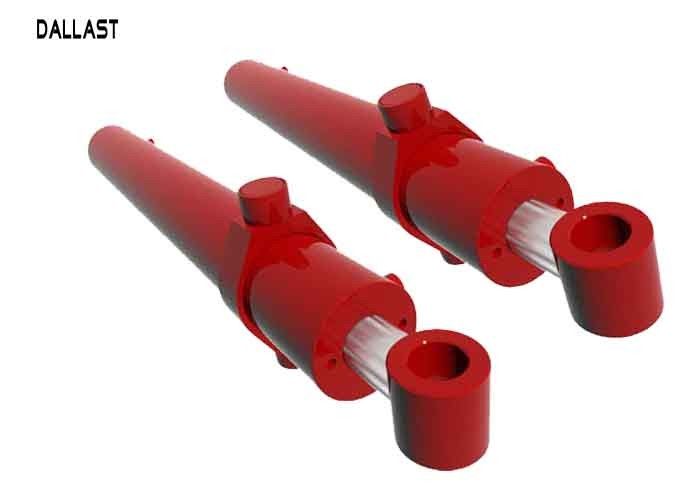

Standard Welded Hydraulic Lift Cylinder Piston Steel Rod Long Stroke Chrome
Advantdges:
Acts on the piston to push the piston rod out
Choice of Mounting Styles, Cross Tube or Trunnion
Hard Chrome Plated Stages
Big lifting force
Stronger weather resistance
Better performance
Warranty: We offer 12 months warranty
| Piston Ø | customized | |||
| Piston rod Ø | customized | |||
| Max. stroke speed | according to the product types | |||
| Operating pressure | 10-35 MPa | |||
| Stroke(mm) | 500-4000 mm | |||
| Close length(mm) | 100-1500 mm | |||
| Capacity(ton) | 3-60 ton | |||
| Application | can be used for heavy vehicles, agricultural vehicles and other vehicles tilting the bucket lift cylinder. | |||
| Tips | In order to tilt a dump truck to angles of 60° or more, telescopic cylinders with strokes approaching the total bed length are required. | |||
|
We can OEM & ODM, if you are interested in our products, please feel free to contact us, send us the drawings and tell us the details. |
||||
A cylinder (cylinder) consists of four parts:
1. Cylinder
2. Mounting types
3. Bottom
4. Bushing
Two piston rod (ROD) consists of three parts:
1. Rod
2. Earrings
3. Bushing
A. The above components; cylinder internal piston divided into two parts, respectively, large cavity and small cavity;
B. Large cavity refers to the piston rod is fully extended, the cylinder cavity;
C. Small cavity refers to the fully extended piston rod, cylinder and rod body cavity;
D. As the viscosity of hydraulic oil is relatively high, the compression ratio is very small, when the cylinder bottom oil into the oil, the piston will be pushed out of the cylinder head oil port, the piston rod to promote or retract movement, and vice versa .
About piston rod:
High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.
The most common problems when selecting a hydraulic cylinder are as follows:
A. Retract dimension (Center of pin to center of pin)
B. Stroke length (Inches)
C. Mounting types
D. Port Size and Type (SAE or NPT)
E. Pressure rating (PSI)
F. Bore Diameter (Inches)
G. Application details
