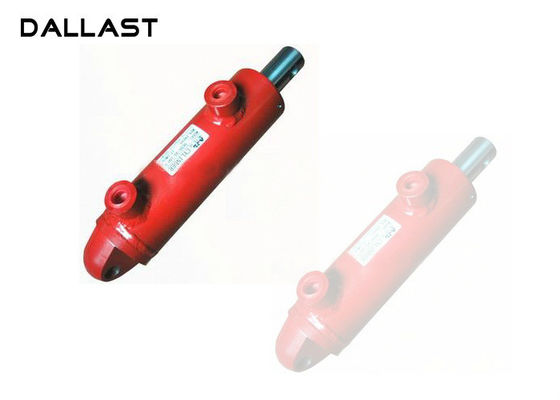

Small Bore Agricultural Farm Hydraulic Steering Cylinder for Combine Harvester

Small Bore Agricultural Farm Hydraulic Steering Cylinder for Combine Harvester

    • Small Bore Agricultural Farm Hydraulic Steering Cylinder for Combine Harvester
    • Small Bore Agricultural Farm Hydraulic Steering Cylinder for Combine Harvester
    • Small Bore Agricultural Farm Hydraulic Steering Cylinder for Combine Harvester
  • Small Bore Agricultural Farm Hydraulic Steering Cylinder for Combine Harvester

    Product Details:

    Place of Origin: Shandong
    Brand Name: DALLAST
    Certification: GS CE ISO9001-2009 TS16949
    Model Number: Standard , Non-standard

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiable
    Packaging Details: shrink film, pallet, plywood case and carton box
    Delivery Time: 20- 25 days after down payment
    Payment Terms: T/T, L/C, Western Union,paypal
    Supply Ability: 50000PCS per year
    Contact Now
    Detailed Product Description
    Model: Telescopic / Telescoping Welded Hydraulic Cylinder Structure: Double Acting 2 Way Hydraulic Cylinder
    Rod: Chrome Plated Size: Custom Design
    Type: Piston Type Hydraulic Cylinder Name: Hydraulic Steering Cylinder
    Stroke: 66-400mm Bore Dia: 25-50mm,1 Inch - 2 Inch
    High Light:

    agricultural hydraulic rams

    ,

    agricultural hydraulic cylinder

    Small Bore Agricultural Farm Hydraulic Steering Cylinder for Combine Harvester

    Our company YD25A, YD50, YS40E, YS40F series hydraulic cylinder is a special wheat / corn combine harvester cylinder.


    Main Features

    MaterialAlloy steel,Carbon steel,Stainless steel,27SiMn
    Seal kitsKaden,Hallite, Parker,NOK,SKF etc.From USA, durable and hard-wearing to ensure the small hydraulic cylinder a long service life
    RodChrome plated and quenched.Has good mechanical properties, long service life
    Heat treatmentQuenching &Tempering which makes the piston rod super high hardness

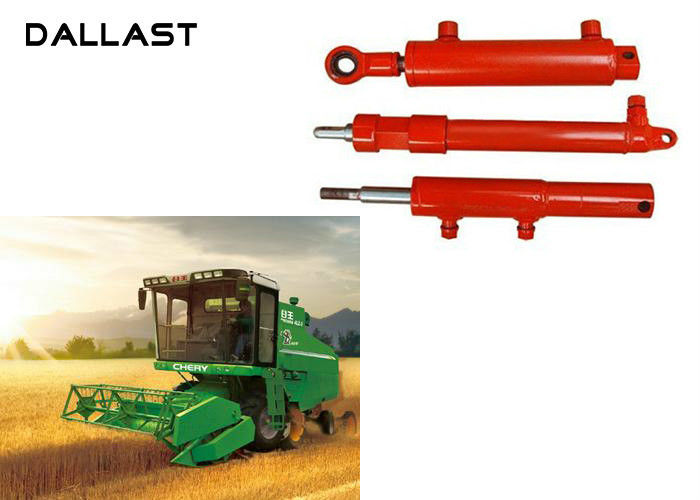

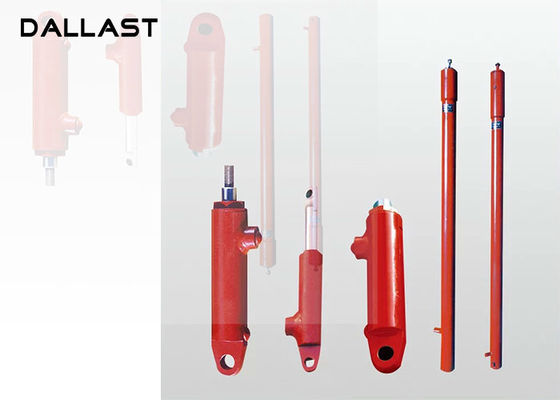

    Combine Harvester Agricultural Farm Hydraulic Cylinders


    NameStroke(mm)
    YD25A Reel cylinder240mm
    YD50B1 Header lift Cylinder350mm
    YS40E Steering cylinder150mm
    YS40F Speed cylinder66mm
    Unloading grain400mm
    Picking table cylinder180mm


    Cylinder Advantages:

    • Main export market:USA, Canada, South Korea, Russia, Australia, Indonesia, Malaysia, Fiji Island, Kenya, Philippines, Bolivia, the United Arab Unites,Singapore
    • Hydraulic Cylinders Certification ISO9001:2009, SGS, TS16949, RoHS, CNAS Certification
    • Experience in export North America, Australia, Asia, Middle East, Africa
    • We are professional manufacturer and supplier in hydraulic cylinder.
    • We do accept OEM manufacturing. We will provide competitive price and make the exact cylinder according to your specification and drawing.
    • We have professional R&D team with rich design experience.
    • We also establish strict but scientific product testing system so that products have perfect performance.
    • One year warranty and long time track service is offered to solve any problems you meet after sale.
    • Lead time:20~30 days depends on the hydraulic cylinder quantity & whether customized

    Product Process:



    1. Raw materials entering the factory, 27SiMn, 40CrMo, ST52, 45# steel tubes or bars for choice
    2. Do the pre-treatment including pickling, phosphating and saponification, and then cold-draw the seamless steel tubes.
    3. Put the steel tubes into the tempering furnace to do the stress relief annealing in convenience of the subsequent the processing.
    4. Multi-roll straightening machine, with 10 straightening points, achieves the automatic rolling straight improving the efficiency greatly
    5. Heat treatment to obtain work pieces with different properties by changing their internal microstructure or surface chemical composition.
    6. Cylindrical degree can be controlled within 0.03mm and the surface roughness is up to 0.4 by honing with range:φ40mm-φ450mm and longest length: 12000mm
    7. Machining processes to obtain high precision parts with complex shapes strictly according to the detailed drawings.
    8. Electroplating production process fulfills the functional and ornamental requirements for coating work pieces of different dimensions according to specific application requirements.
    9. Cleaning all the parts by automatic cleaning machine in the special solution and under special temperature control effectively.
    10. All the parts are assembled into complete cylinders according to the strict assembly instructions by skillful workers in dust-free workshop.
    11. Do proof pressure and performance tests to check whether the cylinders can operate smoothly and stably under the specified pressure with no leakage and deformation.
    12. Do the painting including high quality primer and topcoat to obtain beautiful appearance and protect the cylinders against the anticorrosion.
    13. Wooden pallet or boxes packing with plastic films wrapped on the surface, suitable for long-time sea transport.



    Small Bore Agricultural Farm Hydraulic Steering Cylinder for Combine Harvester
    Small Bore Agricultural Farm Hydraulic Steering Cylinder for Combine Harvester
